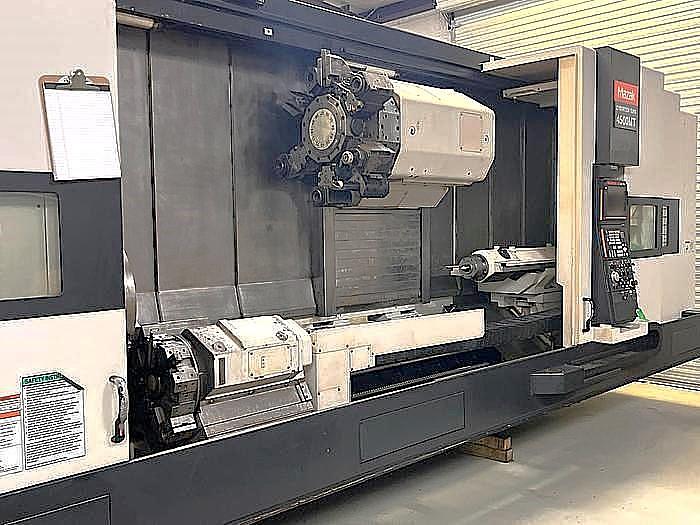

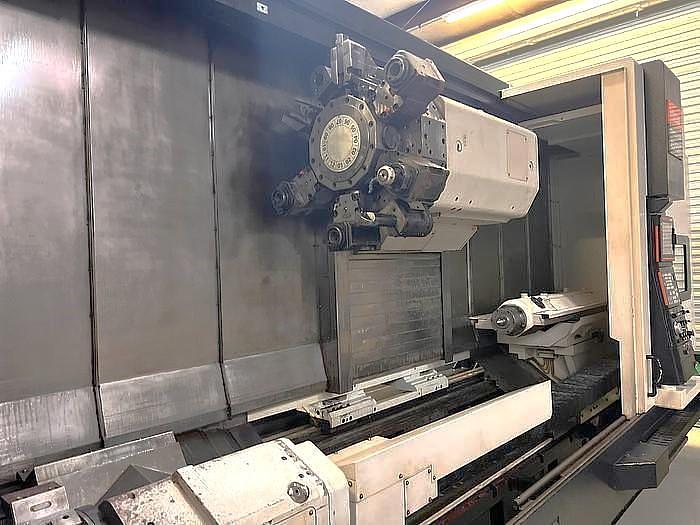

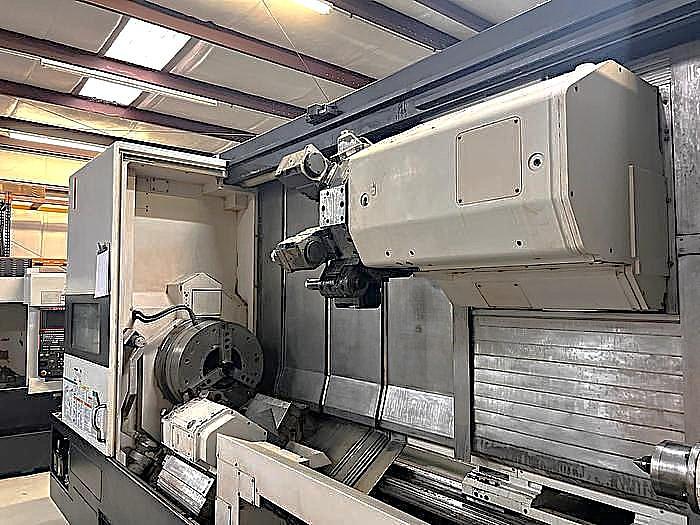

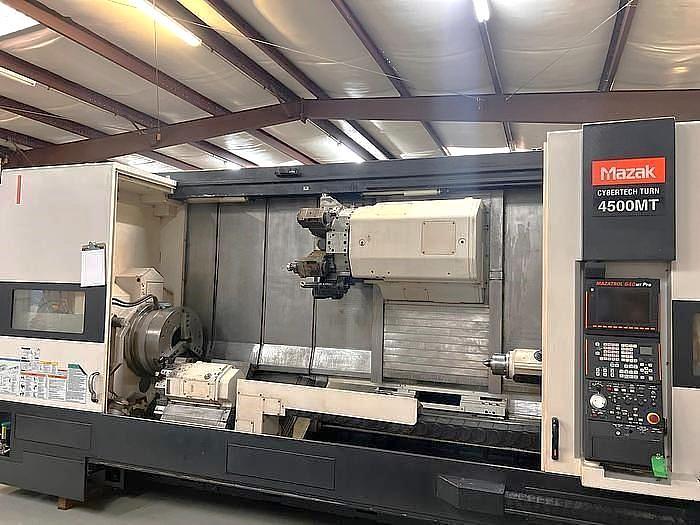

2007 Mazak Cybertech Turn 4500MT/3000 with 10.8" Big Bore
2007 Mazak Cybertech Turn 4500MT/3000 with 10.8" Big Bore
$169,500 (USD)
Location:Texas
Description
24" SMW Model BB-N-600-275-3 Big Bore 3 Jaw Chuck with 10.8" Hole
24" Manual Chuck on Rear with 8" Hole Optional 10.8" Big Bore Spindle Chip Conveyor Full "C" Axis Spindle Rotation Live Milling Capability
Lower Turret Option Tool Presetter Fully Programmable Tailstock 120" Center Distance
High Power Coolant 213 PSI Mill Tool Synchronous Tapping Thread Point Start Compensation
Variable Feed Rate Control
Tool Life Monitoring
Tool Wear Compensation
Mazak Tapping Tornado
8 Figure Program Number
48 Alphanumeric Characters for Program Name
Backround Toolpath Check
Prep for Rear Chuck
Built In Premium Threading Function Re-Threading Function
Deep Hole Boring EIA/ISO Input Function IC Memory Card Interface 3.5" Floppy Disk Drive PCMCIA Interface - 2 Slots RS-232C Port Interface Network Interface All Available Static Tooling
Currently Wired 400V Electrics
Multi Tap Transformer
Specifications
| Manufacturer | Mazak |
| Model | Cybertech Turn 4500MT/3000 Big Bore |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119725 |
| Control | Mazatrol Fusion 640MT Pro |
| Maximum Swing | 33.86" |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Machining Diameter | 31.89" |
| Maximum Machining Length | 120" |
| X-Axis Travel Upper Turret / Lower Turret | 21.26" / 9.06" |
| Z-Axis Travel Upper Turret / Lower Turret | 123.2" / 100.4" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-20" / 10.8" / 10.8" |
| Spindle Speeds | 0 - 1,000 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 15 HP |
| Number of Turret Positions | 12 Station Turret |
| Number of Lower Turret Positions | 8 Station Turret |
| Tailstock Body Travel / Center | 120.08" / MT #5 |
| Rapid Traverse Rates X / Z | 945 IPM / 1181 IPM |
| Machine Dimensions | 284" x 98" x 110.3" |
| Machine Weight | 46,500 lbs. |
