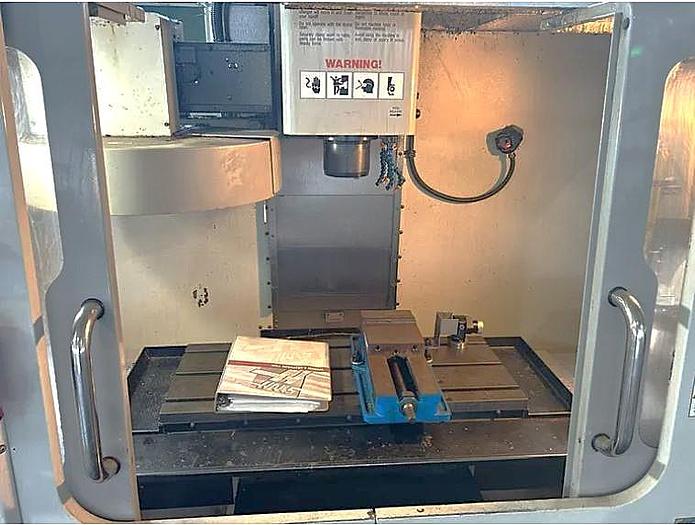

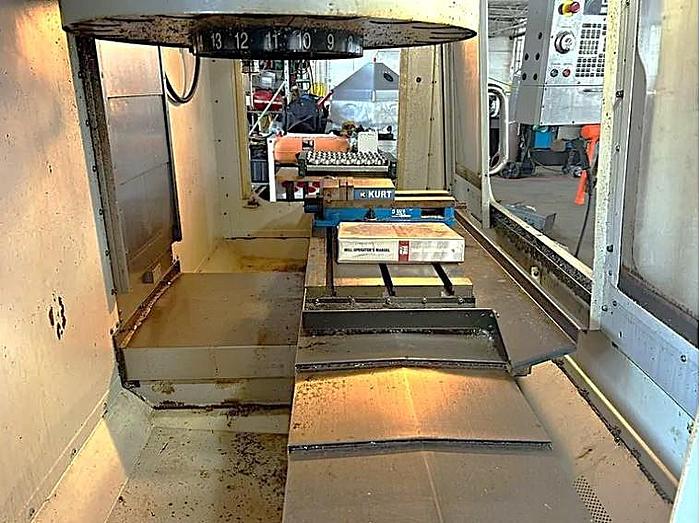

2008 Haas VF-2D with Probing, Coolant Through Spindle
2008 Haas VF-2D with Probing, Coolant Through Spindle
$27,950 (USD)
Location:West Virginia
orCall (863) 439-6066
Description
Haas WIPS Wireless Intuitive Probing System
Coolant Through the Spindle
Visual Quick Code Programming
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Auger Style Chip Conveyor
Flood Coolant
Coolant Tank with Pump
Brushless Servo Motors
Haas Manual
Specifications
| Manufacturer | Haas |
| Model | VF-2D |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119732 |
| Table Size | 36" x 14" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4"-24" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
