2013 Haas TL-1 CNC Toolroom Lathe
2013 Haas TL-1 CNC Toolroom Lathe
$27,950 (USD)
Location:South Carolina
orCall (863) 439-6066
Description

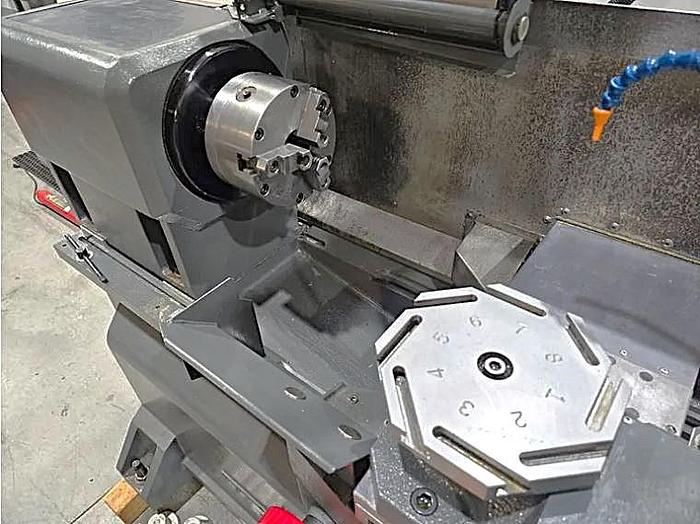

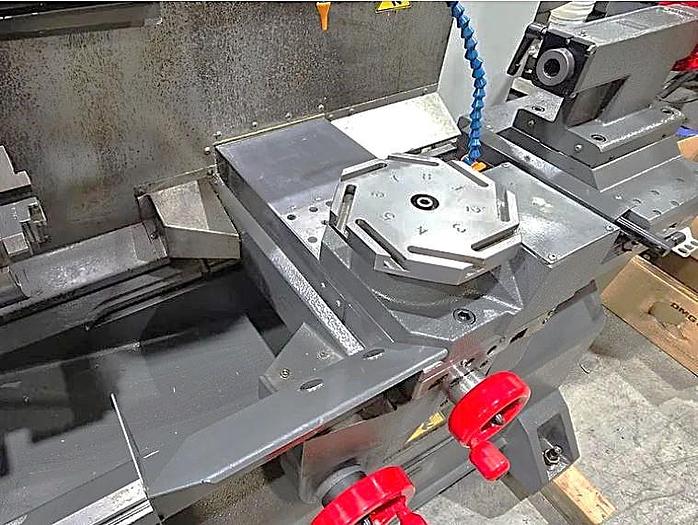

8 Station Turret
8" Samchully 3 Jaw Manual Chuck
5C Collet Chuck
Tailstock

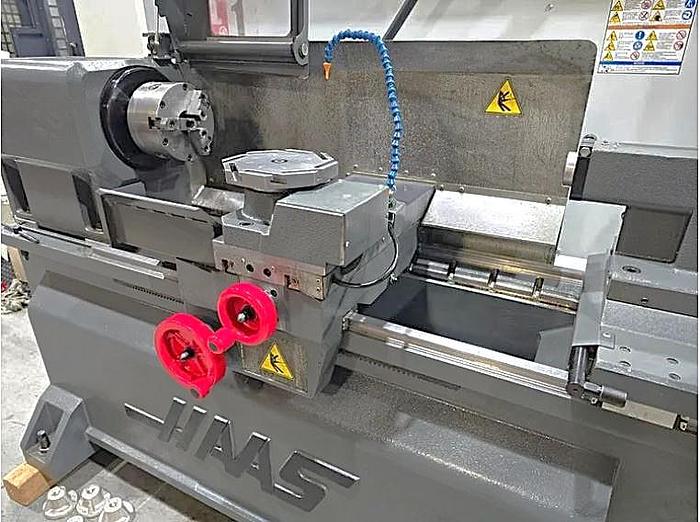

Manual Handwheels
Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel
Ethernet Port Interface
USB Port Interface RS 232 Port Interface
Miscellaneous Tooling

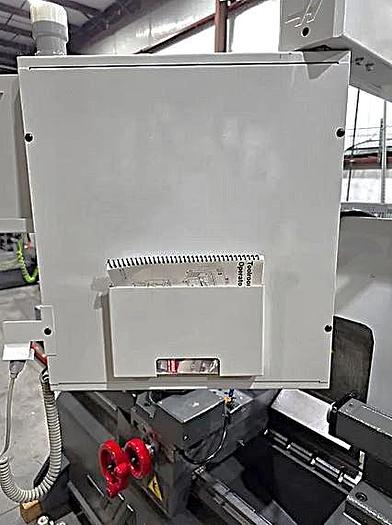

Haas Manual
Capable of both Single Phase and Three Phase Power

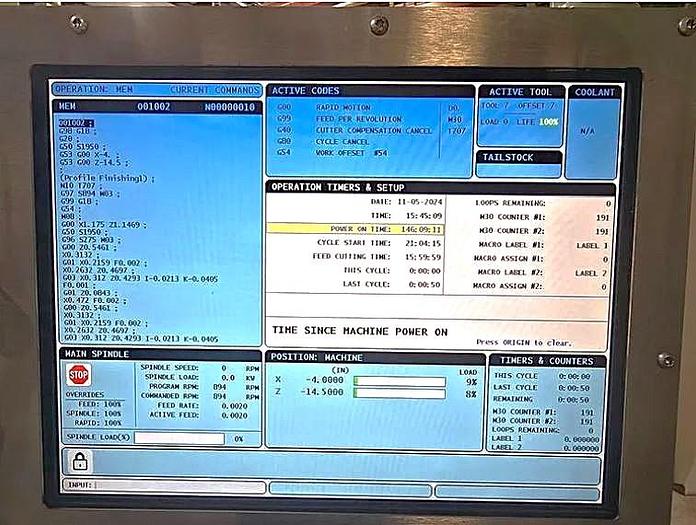

**ONLY 146 Power On Hours of Use**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119735 |

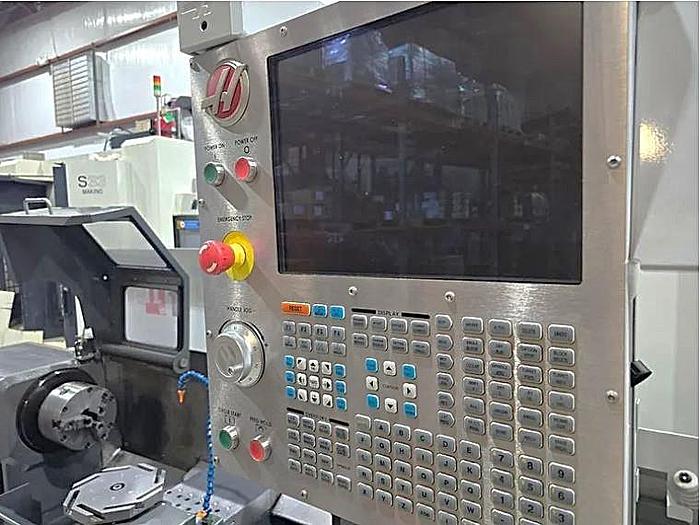

| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck / 5C Collet Nose |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,200 lbs. |
