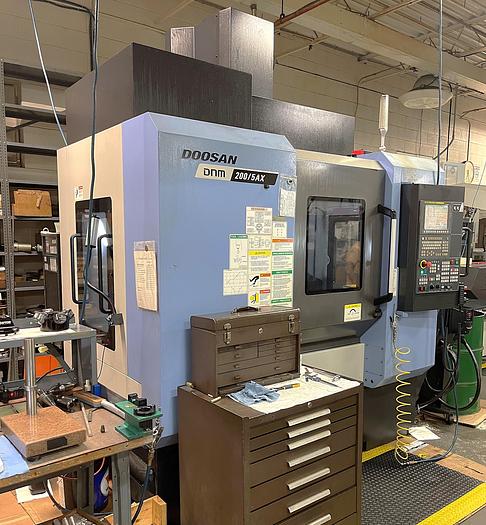

2015 Doosan DNM-200/5AX 5 Axis Trunnion Type VMC
2015 Doosan DNM-200/5AX 5 Axis Trunnion Type VMC
$54,500 (USD)
Location:New York, NY
orCall (863) 439-6066
Description
5 Axis (4 +1) Type Trunnion Style Machine
40 Station Side Mounted Tool Changer
12,000 RPM Spindle

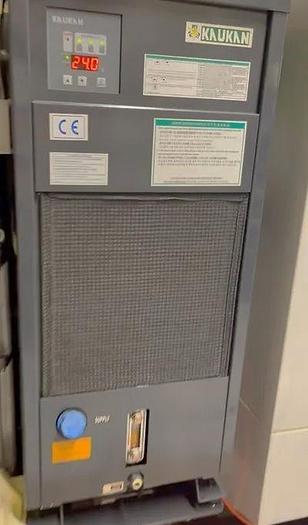

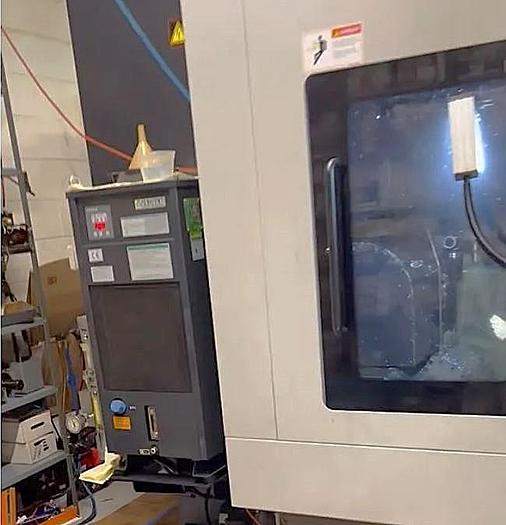

Spindle Chiller Unit
Renishaw Probe

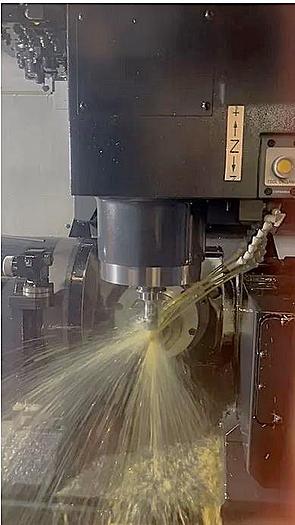

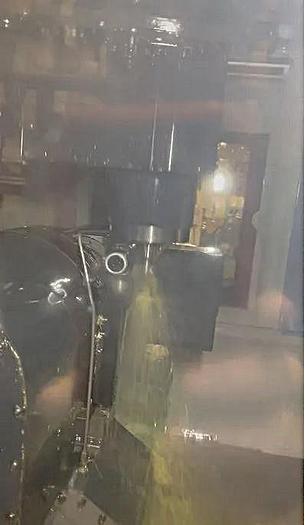

High Pressure Coolant Through the Spindle

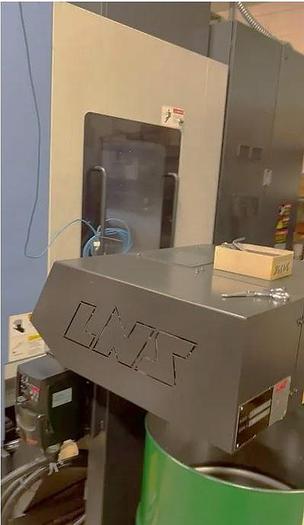

Chip Conveyor
PCMCIA Card Slot
USB Port Interface
RS-232 Internet
Ethernet Connectivity
Spindle Orientation
Helical Interpolation
Work Light

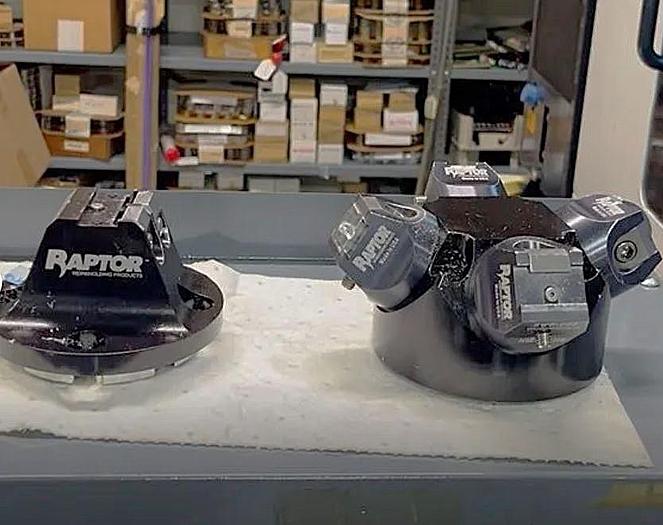

Raptor Work Holding Fixtures
Wired 220V Electrics
Specifications
Manufacturer | Doosan |
Model | DNM-200/5AX |
Year | 2015 |
Condition | Used |
Stock Number | 119748 |

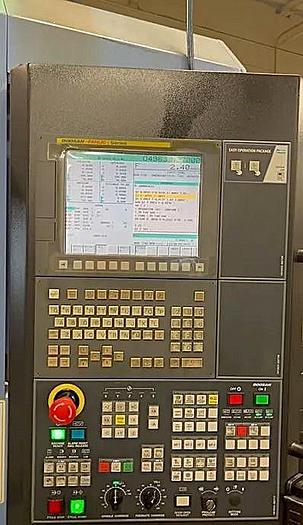

Machine Control | Fanuc i Series Control |
Table size | 7.87" x 7.87" |
Table load capacity | 88 lbs. |
X-axis travel | 15.7" |
Y-axis travel | 17.1" |
Z-axis travel | 19.7" |
Spindle speed | 12,000 RPM - Direct Drive |
Spindle taper | CAT 40 |
Spindle motor 30 min. / cont. | 25 HP / 15 HP |
Spindle Torque | 86 ft./lbs. |
Tool magazine capacity - side mount | 40 Station Side Mount ATC |
Rapid Traverse Rates | 1417 IPM |
Cutting feed rates | 590 IPM |
Machine Dimensions LxWxH | 112" x 97" x 130" |
Machine weight | 12,200 lbs. |
