2022 Haas ST-20Y CNC Lathe with Milling and Y Axis
2022 Haas ST-20Y CNC Lathe with Milling and Y Axis
$94,500 (USD)
Location:United States
orCall (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
10" 3 Jaw Hydraulic Chuck
Royal QG-65 Quick Grip Pull Back Collet Chuck

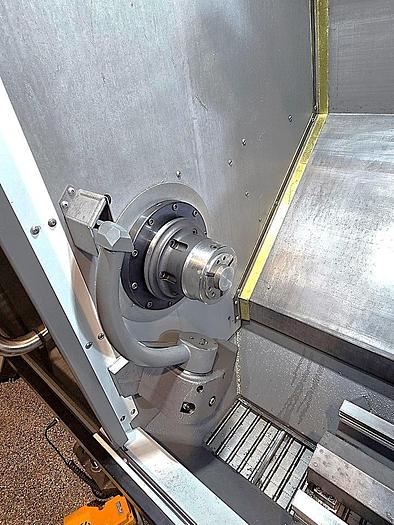

Programmable Tailstock
Chip Conveyor
Tool Presetter
Auxiliary Coolant Filter System
Haas Visual Part Programming System
User Definable Macros
Spindle Orientation
Coolant System with 55 Gallon Tank and Pump
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module

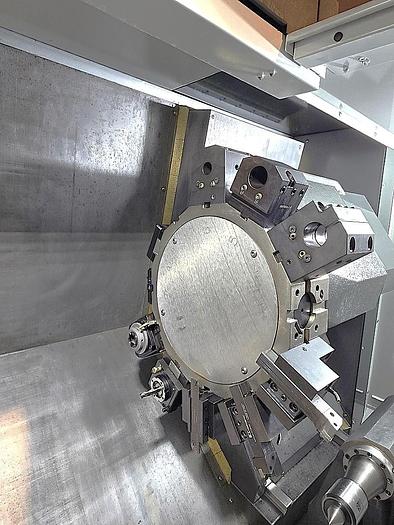

12 Station BMT65 Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
All Available Tool Blocks
All Available Manuals

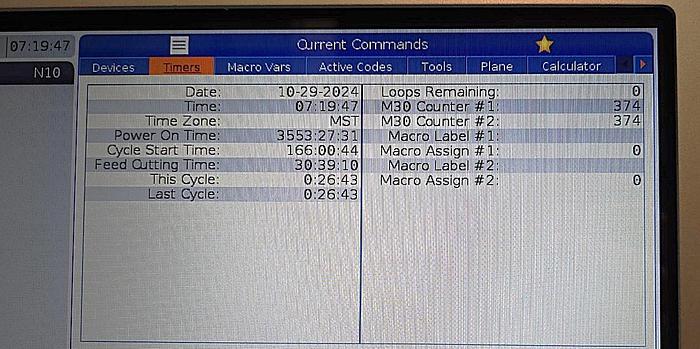

**ONLY 30 HOURS OF FEED CUTTING TIME**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119751 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 10" 3-Jaw Hydraulic Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
