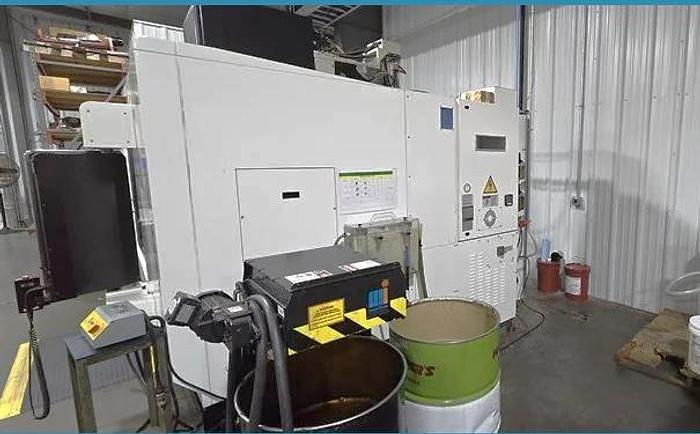

2017 Mazak VTC-300C Traveling Column VMC with 4th Axis Table, CTS, Probing
2017 Mazak VTC-300C Traveling Column VMC with 4th Axis Table, CTS, Probing
$149,000 (USD)
Location:Illinois
Description
Kitagawa 10" MR250 4th Axis Rotary Table
High Pressure Coolant Through the Spindle - 213 PSI Chip Conveyor
Automatic Tool Length Measurement Probe - Renishaw
Renishaw Part Probe

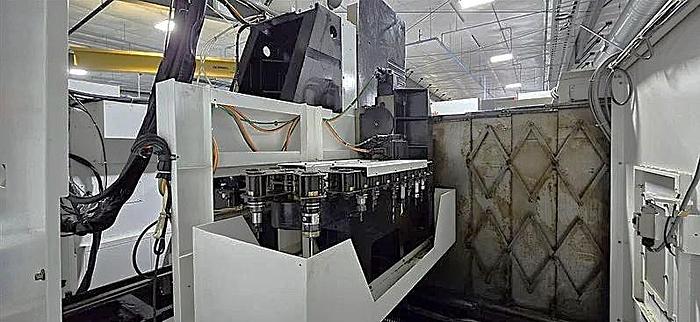

24 Station Side Mounted Tool Changer
15,000 RPM Spindle
Remote Jog Handle
Rigid Tapping
Helical Interpolation
EIA/ISO Input Function
EIA Helical Tapping
EIA Pattern Cycle
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection
Polar Coordinate Input
Rotary Axis Shape Compensation
Shape Compensation
Threading
Inverse Time Function
Variable 600 Sets
2nd Auxiliary Function
Comparison Stop
Pitch Error Compensation
Program Memory Expansion
Scaling
External Data Input / Output
Tilted Work Plane
Complete Coolant System with Tank & Pump
USB Port Interface
3.5" Floppy Disk Interface
RS 232 Port Interface

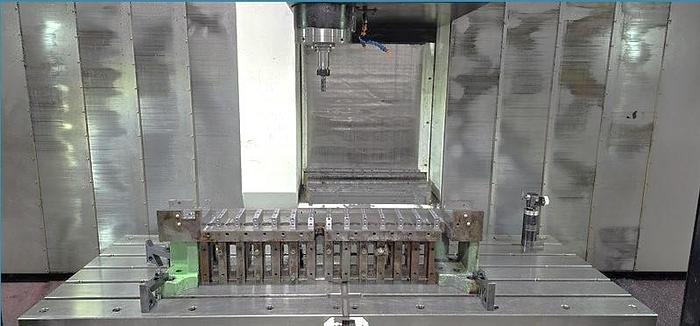

*Removable Center Partition for Dividing 2 Separate Jobs While Machining. Acts Almost as a Pallet Changer

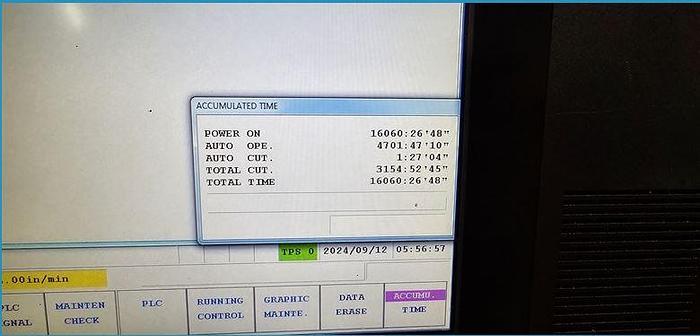

**Auto Operation Hours 4,701**
**Total Cutting Hours 3,154**
Specifications
| Manufacturer | Mazak |
| Model | VTC-300C |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119756 |
| Control | Mazatrol Matrix Nexus 2 Control |
| Table Size | 78.74" x 30.01" |
| Maximum Weight on Table | 3,300 lbs. |
| Distance Spindle Nose to Table Top | 4.3" - 30.3" |
| X-Axis Travel | 65.35" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 26" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 25 HP |
| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.3" / 13.78" / 17.6 lbs. |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 211" x 137" x 121" |
| Machine Weight | 26,000 lbs. |
