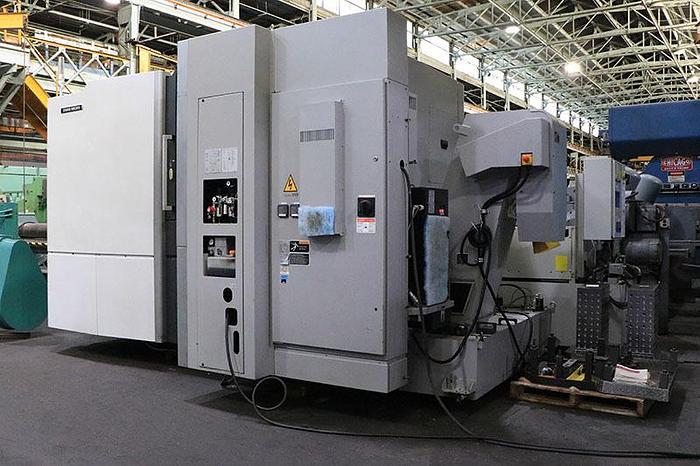

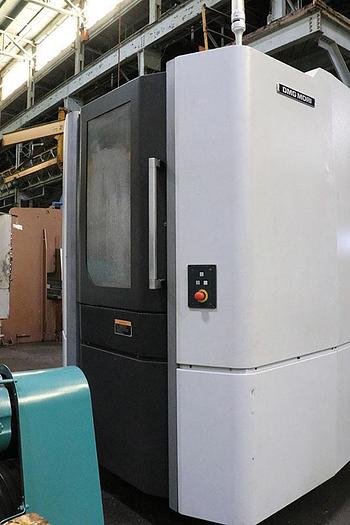

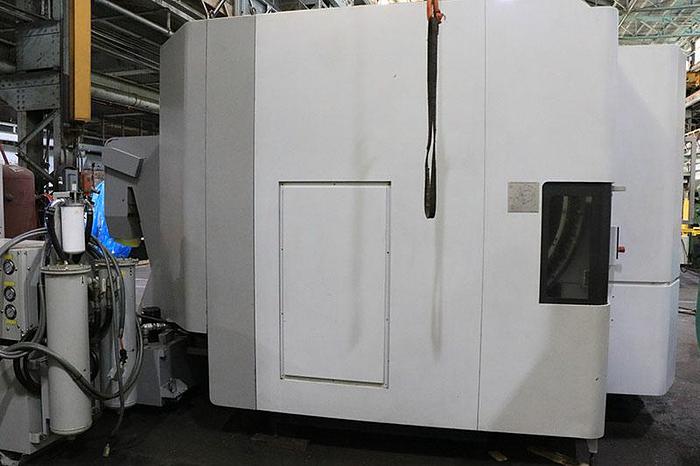

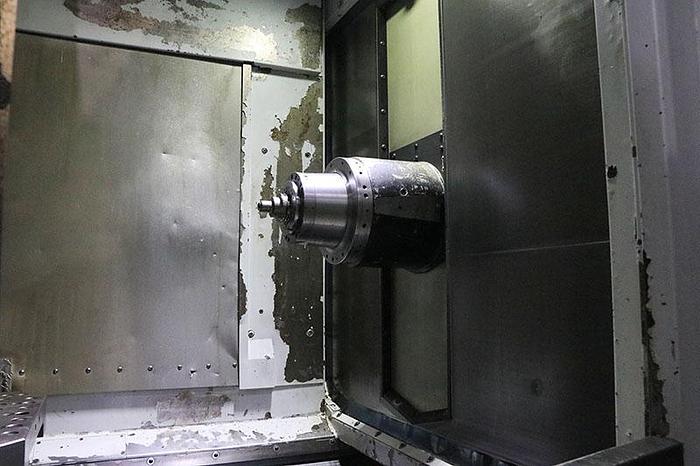

2013 DMG Mori NHX-5000 Full 4th Axis Table, 60 ATC, Hi Pressure CTS

2013 DMG Mori NHX-5000 Full 4th Axis Table, 60 ATC, Hi Pressure CTS

$125,000 (USD)

Location:New Jersey

orCall (863) 439-6066

Description

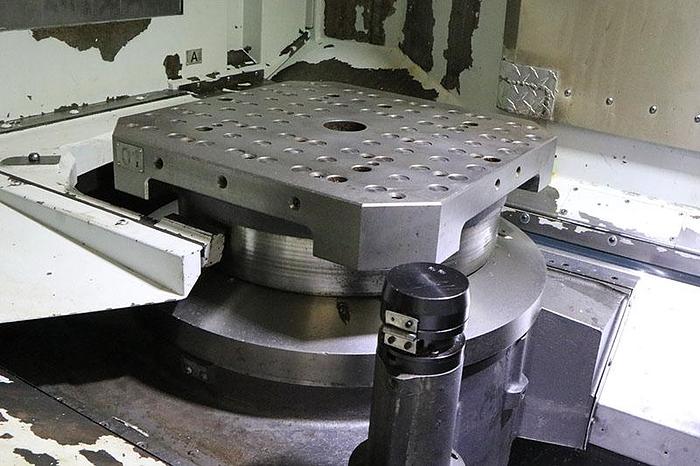

2 Pallet Changer System Full 4th Axis Rotary Table High Pressure Coolant Through the Spindle

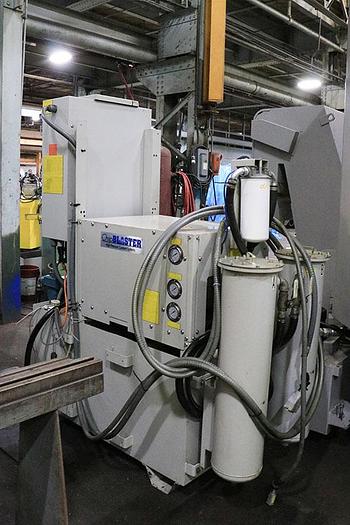

Chip Blaster Model JV High Pressure Coolant System

Chip Conveyor

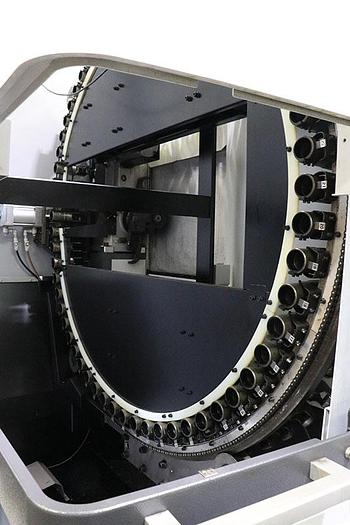

60 Station Tool Changer

In Machine Tool Measuring System Tool Sensor/Setter

12,000 RPM Spindle Remote Jog Handle

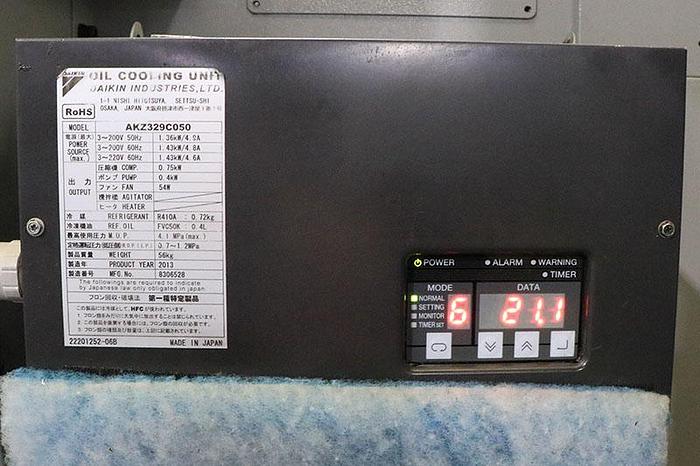

Spindle Chiller Unit

Flood Coolant Rigid Tapping

Coordinate System Rotation

48 Workpiece Offsets

Part Program Storage Length 512 KB

1000 Registerable Part Programs

Custom Macros

Spindle Orientation

USB Port Interface

RS 232 Port Interface

Wired 220V 3 Phase Electrics All Available Manuals

Show All

Specifications

ManufacturerDMG Mori
ModelNHX-5000
Year2013
ConditionUsed
Stock Number119765

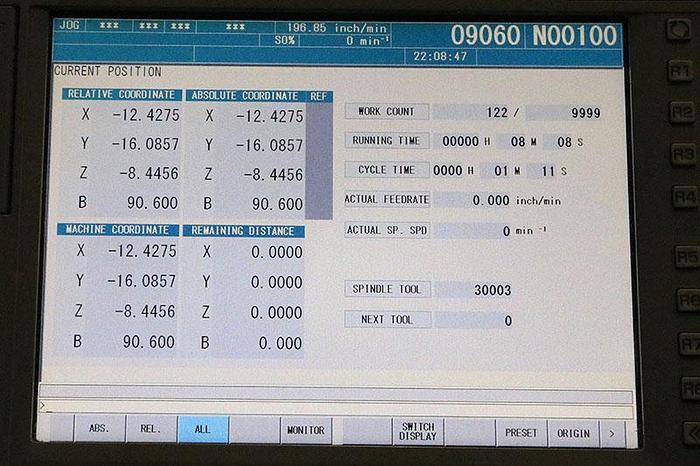

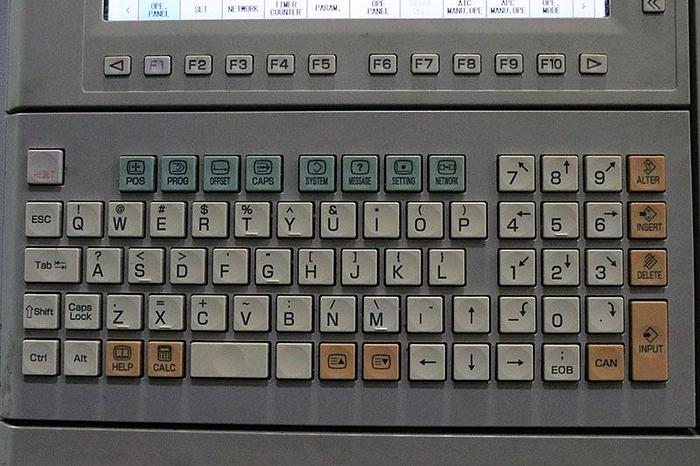

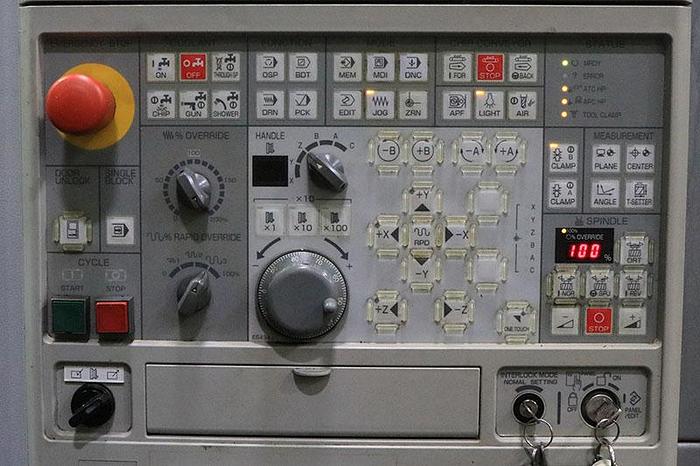

Machine ControlMitsubishi M730BM with MAPPS

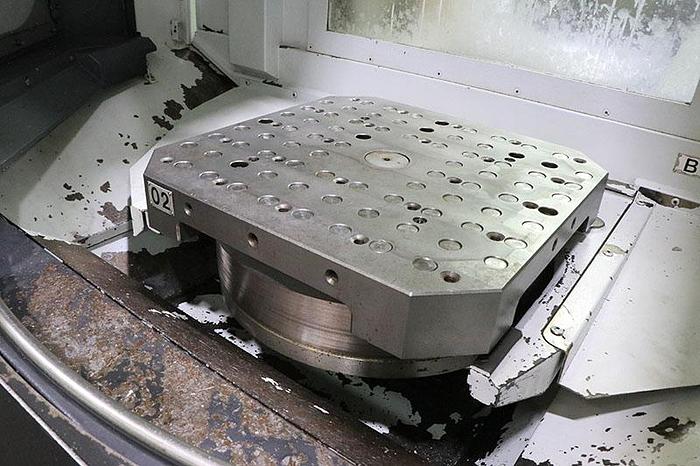

Pallet Size / Number of Pallets19.7" x 19.7" / 2 Pallets
Maximum Weight on Table882 lbs.
Maximum Workpiece Height35.4"
Pallet Indexing.001 Degrees
X-Axis Travel28.7"
Y-Axis Travel28.7"
Z-Axis Travel34.5"
Spindle NoseCAT #40 Taper
Spindle Speed12,000 RPM
Spindle Motor40 HP

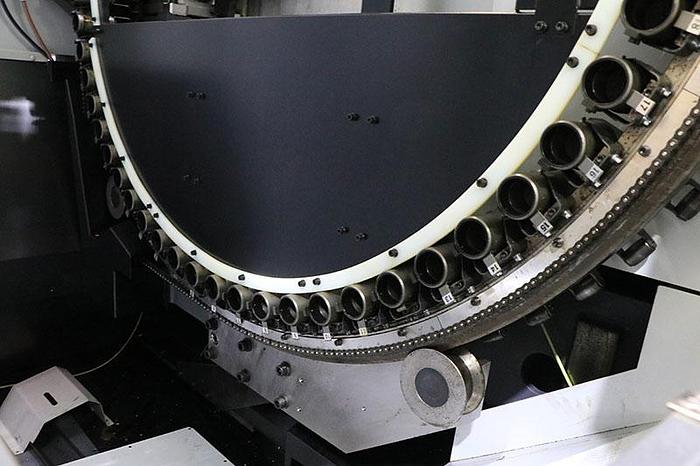

Tool Magazine Capacity60 Station Tool Changer
Maximum Tool Diameter / Length / Weight6.6" / 17.7" / 18 lbs.
Rapid Traverse Rates2,362 IPM
Cutting Feedrates984 IPM
Machine Dimensions LxWxH165" x 105" x 122"
Machine Weight24,000 lbs
