2009 Mazak Nexus VCN 510C-II with Tool Probe, Coolant Thru Spindle and Chip Conveyor
2009 Mazak Nexus VCN 510C-II with Tool Probe, Coolant Thru Spindle and Chip Conveyor
$62,500 (USD)
Location:Michigan
Description
Automatic Tool Length Measurement Probe - Renishaw TS27R
Chip Conveyor

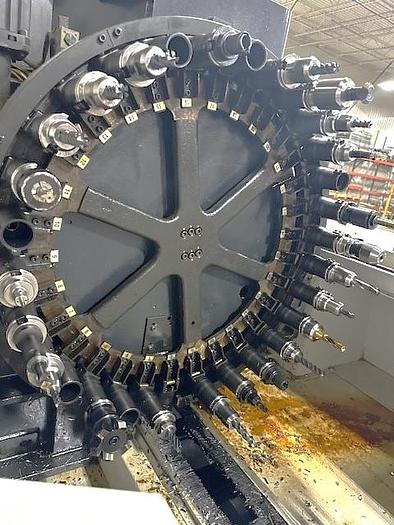

Coolant Through the Spindle - 213 PSI 30 Station Side Mounted Tool Changer Remote Hand Held MPG
Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Spiral Interpolation
Geometric
Tilted Work Plane
Threading
Inverse Time
Polar Coordinate Input
Comparison Stop
G54.1 Variable 600 Sets
Pitch Error Compensation External Data Input/Output PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant Tank with Pump
**EVERYTHING seen in photos goes with, including drill press, vices, tooling seen in ATC, jib crane, pedestal grinder !!!**
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 510C-II |
| Year | 2009 |
| Condition | Used |
| Stock Number | 119771 |
| Control | Mazatrol Matrix Nexus |
| Table Size | 51.18" x 21.65" |
| Maximum Table Load | 2,646 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 5.9" - 25.98" |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.78" / 17.64 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates | 1,417 IPM |
| Machine Dimensions | 113" x 111" x 113" |
| Machine Weight | 15,180 lbs. |
