2012 Haas ST-10 Chucker

2012 Haas ST-10 Chucker

Contact us for price

Location:Illinois

orCall (863) 439-6066

Description

6.5" 3-Jaw Chuck

Collet Chuck

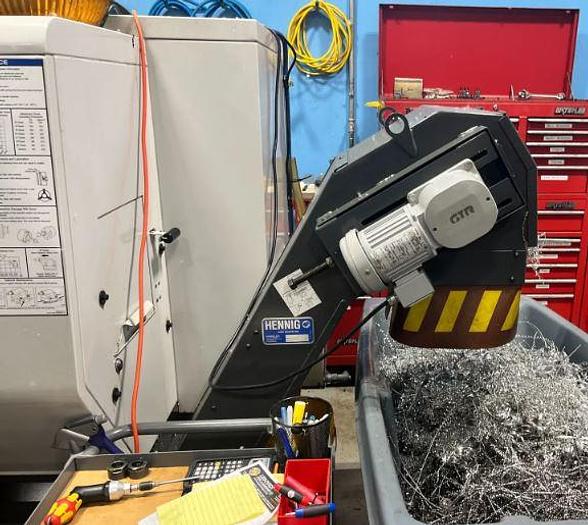

Chip Conveyor

Tool Presetter

15" LCD Color Monitor

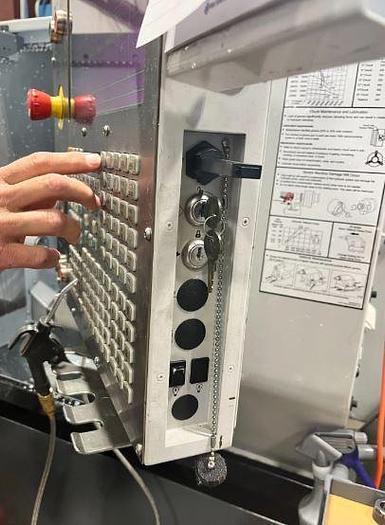

Memory Lock Keyswitch

Rigid Tapping

USB Port Interface

RS 232 Port Interface

All Available Manuals

No Tailstock but has the rails for one

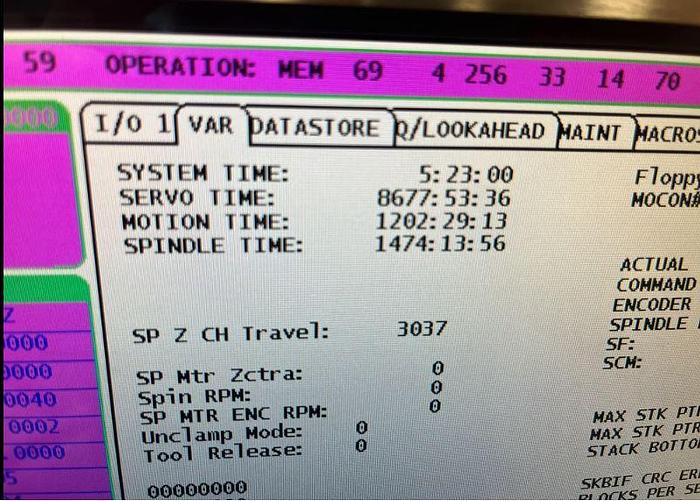

1,500 run time hours


Show All

Specifications

ManufacturerHaas
ModelST-10 Chucker
Year2012
ConditionUsed
Stock Number119775
Machine ControlHaas 32 BIT
Chuck Size6" 3-Jaw Hydraulic / Collet Chuck
Maximum Swing25.25"
Maximum Swing Over Cross Slide16.25"
Maximum Machining Diameter14"
Maximum Machining Length14"
X-Axis Travel7.88"
Z-Axis Travel14"
Spindle Nose / Bore / Bar CapacityA2-5 / 2.31" / 1.75"
Spindle Motor15 HP
Spindle Speeds0 - 6,000 rpm

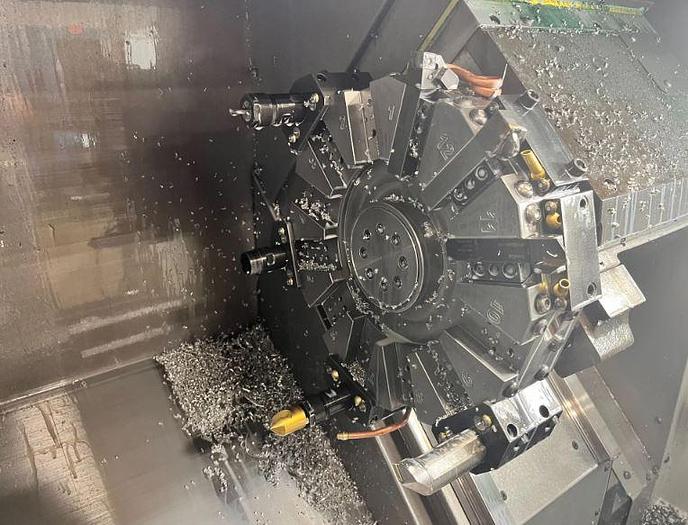

Number of Turret Positions12 Bolt on Style
Spindle Torque75 ft/lbs.
Rapid Traverse Rates1,200 IPM
Machine Dimensions LxWxH92"x55"x69"
Machine Weight6,420 lbs
