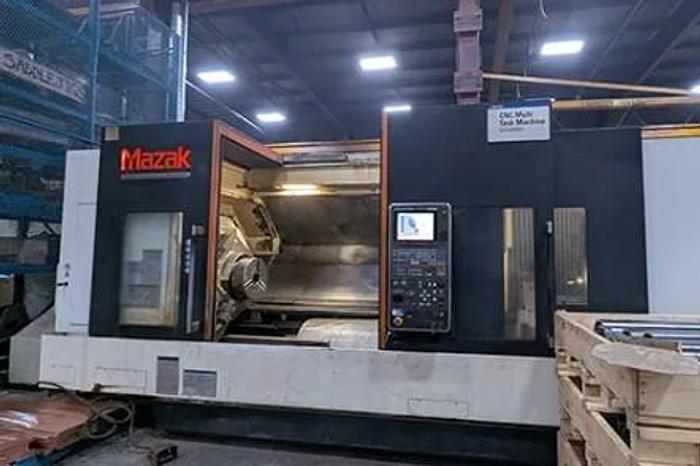

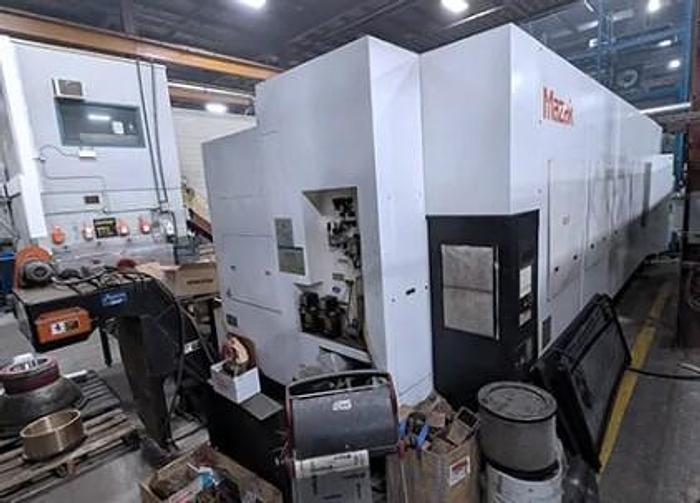

2011 Mazak Nexus QTN 450-IIMY/3000 with Milling, Y Axis, Steady Rest and

2011 Mazak Nexus QTN 450-IIMY/3000 with Milling, Y Axis, Steady Rest and

$239,000 (USD)

Location:Ontario, Canada

orCall (863) 439-6066

Description

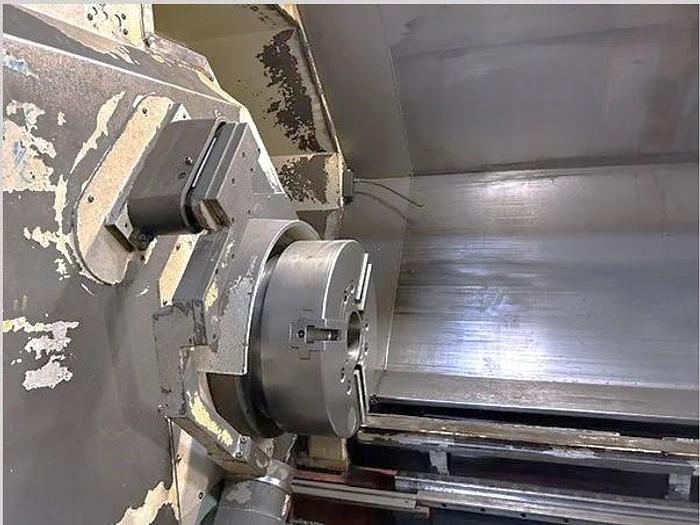

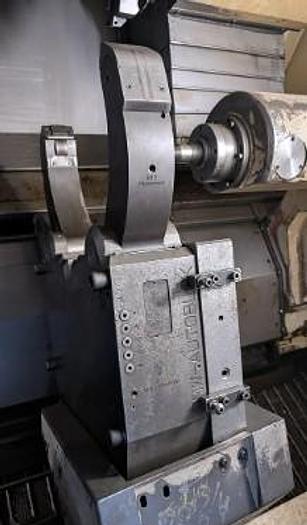

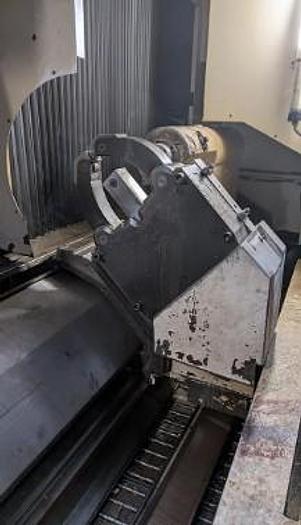

17.5 3 Jaw Hydraulic Chuck w/ 4.5" Hole Through Long Bed Machine Option Full C Axis Spindle Rotation Milling/Drilling Capability Y Axis Capable Hydraulic Steady Rest Automatic Tool Eye Chip Conveyor Programmable Tailstock Mill Synchronous Tapping (rigid tapping) Multi Tap Transformer All Available Manuals and Tooling

Includes (6) Live Tool Holders


**Less than 15,000 Cutting Hours**

Show All

Specifications

ManufacturerMazak
ModelNexus QTN 450-IIMY/3000
Year2012
ConditionUsed
Stock Number119783
ControlMazatrol Matrix Nexus 2 Control

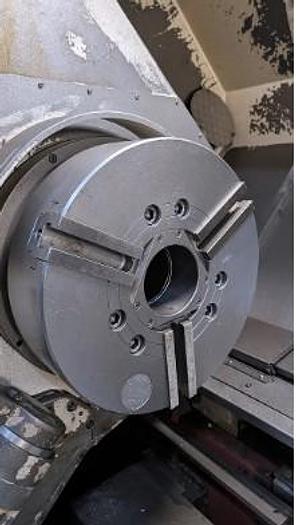

Chuck Size17.5" Hydraulic Chuck
Maximum Swing29.5"
Maximum Swing Over Cross Slide22.835"
Maximum Cutting Diameter22.835"
Maximum Cutting Length122.6"
Maximum Bar Capacity 4.5"
X-Axis Travel13.3758"
Y-Axis Travel+/- 5.91"
Z-Axis Travel123.25"
C Axis Spindle Rotation.001 Degree
Spindle Nose / Spindle BoreA2-11" / 5"
Spindle Speeds2,000 RPM
Spindle Motor50 HP
Rotary Tool Speed / Rotary Motor4,000 RPM / 10 HP

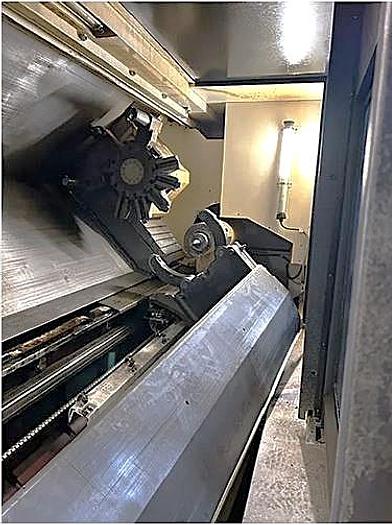

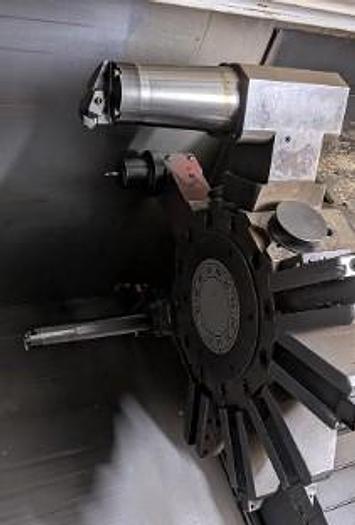

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X/Z1181 IPM / 1299 IPM

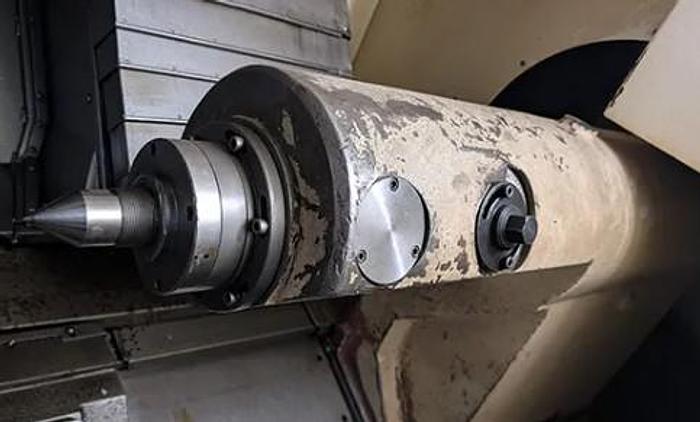

Tailstock Body Travel113.4"
Tailstock Quill Diameter / Center3.94" / MT #5
Machine DimensionsN/A
Machine Weight47,888 lbs.
