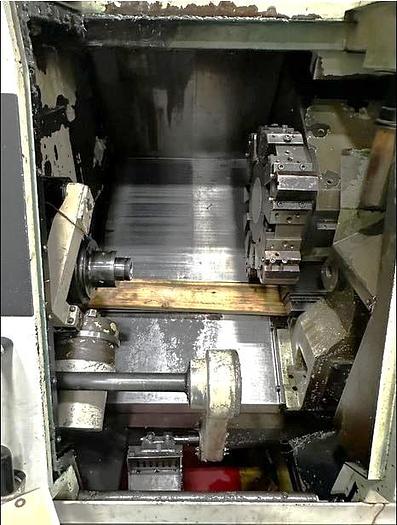

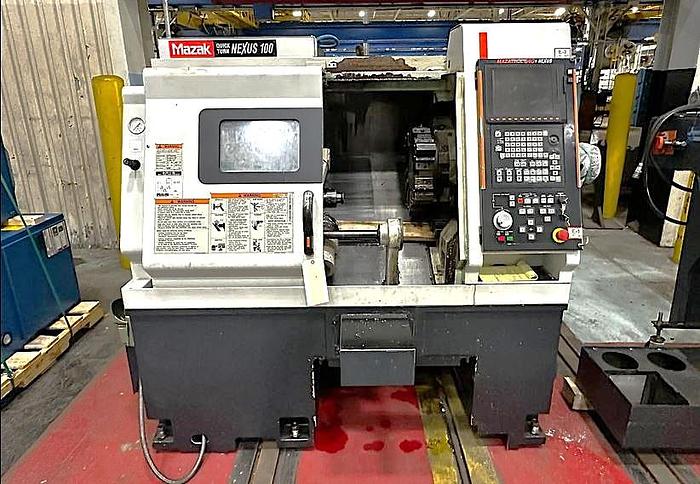

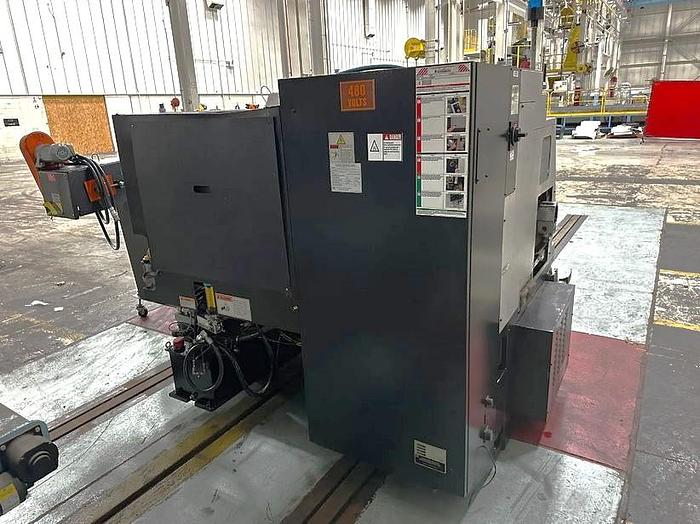

2004 Mazak Nexus QTN 100 with LNS 12' Barfeed, Parts Catcher, Chip Conveyor, Tailstock
2004 Mazak Nexus QTN 100 with LNS 12' Barfeed, Parts Catcher, Chip Conveyor, Tailstock
$29,950 (USD)
Location:Michigan
orCall (863) 439-6066
Description

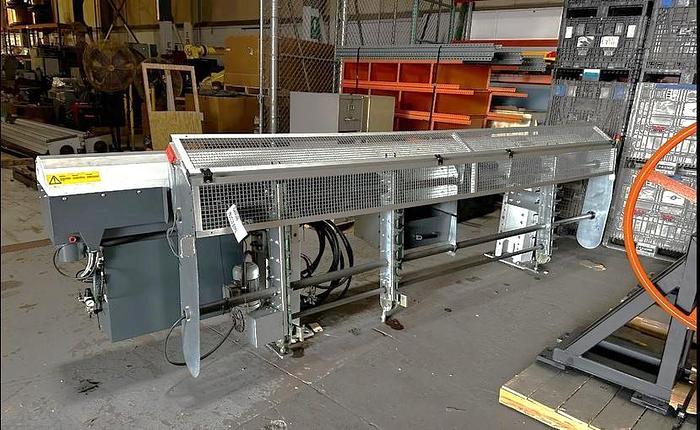

LNS Sprint 555 12' Barfeed
Collet Chuck Parts Catcher Automatic Tool Eye Chip Conveyor Tailstock Complete Coolant System w/ Tank & Pump RS 232 Port Interface 3.5" Floppy Disk Drive Multi Tap Transformer
Currently Wired 400V Electrics All Available Tooling All Available Manuals
Manufactured New in August of 2004
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 100 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119787 |
| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | Collet Chuck |
| Maximum Swing | 21.6" |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 12.1" |
| Maximum Bar Capacity | 2" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 13" |
| Spindle Nose / Spindle Bore | A2-5" / 2.4" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |

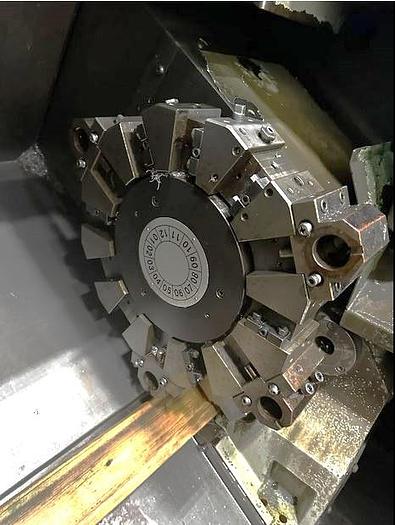

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 1181 IPM / 1299 IPM |

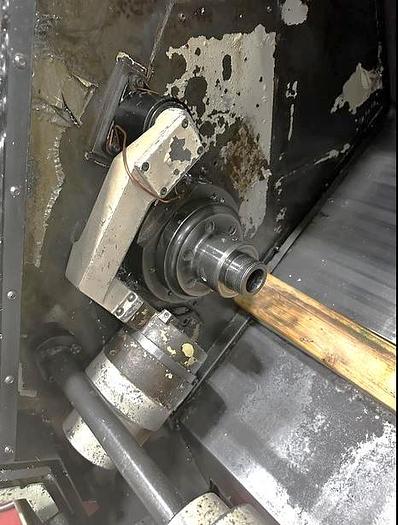

| Tailstock Body Travel / Center | 13.7" / MT #4 |
| Machine Dimensions | 66" x 65" x 67" |
| Machine Weight | 7,700 lbs. |
