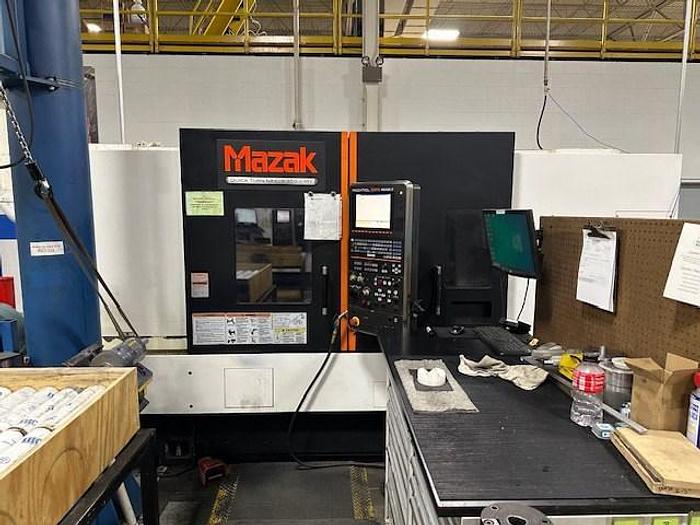

2014 Mazak Nexus QTN 350-II MY/1500 with Milling and Y Axis
2014 Mazak Nexus QTN 350-II MY/1500 with Milling and Y Axis
$179,000 (USD)
Location:Indiana
Description
Full C Axis on Main & Subspindle
Live Milling/Drilling Capability
Y Axis Capability
Programmable Tailstock

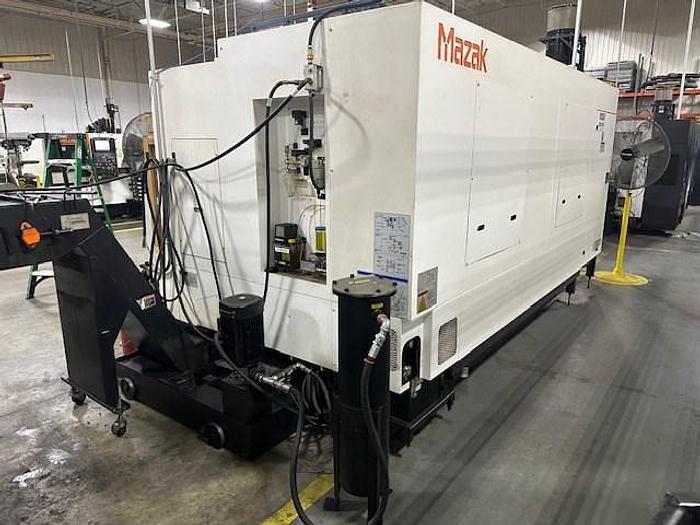

Chip Conveyor

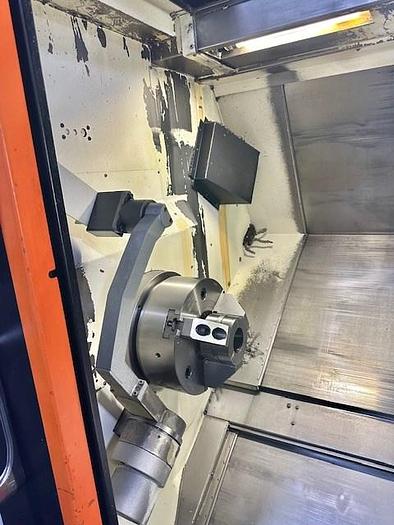

12" 3 Jaw Hydraulic Chuck on Main Spindle
Tool Presetter
High Pressure 215 PSI Coolant System w/ Filtration System
Milling Spindle Synchronous Tapping
Variable 600 Macro
EIA/ISO Input Function
EIA Helical Tapping Cycle
EIA Pattern Cycle
EIA 3D Comp
Comparison Stop
G54.1
Cylindrical & Spiral Interpolation
Coordinate Rotation & Scaling
Geometric
External Data Input/Output
Tilted Workplane
Pitch Error Compensation
Mist Collection Syste
USB Port Interface - 2 Ports
RS 232 Port Interface
Coolant System with Tank and Pump
Multi Tap Transformer
All Available Tooling
(4) Live Tool Holders with 2 ea. ID & OD
Static Tool Holders
All Available Manuals

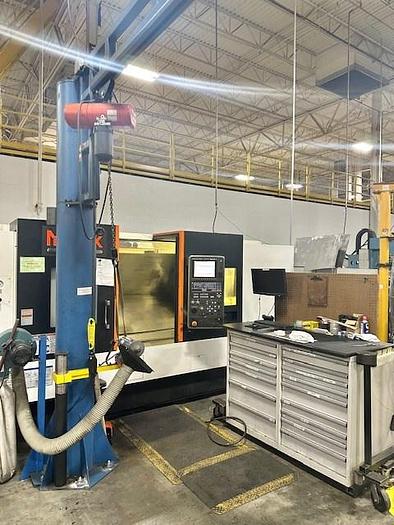

**Also includes jib crane, pedestal grinder, tool cabinets, inserts, and perishable tooling**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350-II MY/1500 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119790 |

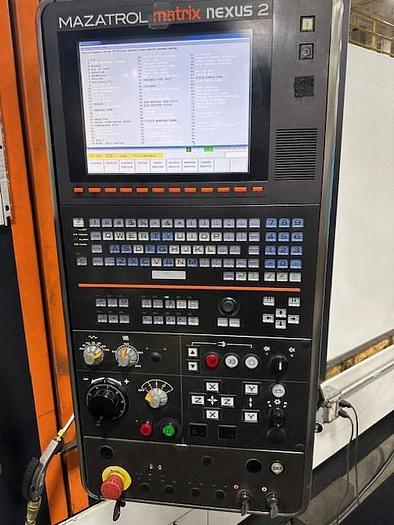

| Machine Control | Mazatrol Matrix Nexus 2 Control |
| Chuck Size | 12" 3 Jaw Hydraulic |
| Maximum swing | 29.5" |
| Maximum cutting diameter | 16.54" |
| Maximum machining length | 60.67" |
| X-axis travel | 10.76" |
| Y-Axis Travel | 6.0" (+/- 3.0") |
| Z-axis travel | 63.25" |
| C Axis Spindle Rotation | 0.0001 Degree |
| Spindle nose/spindle bore/bar capacity | A2-11"/4.5"/4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |
| Live Tooling Speed / Motor | 4,000 RPM / 10 HP |

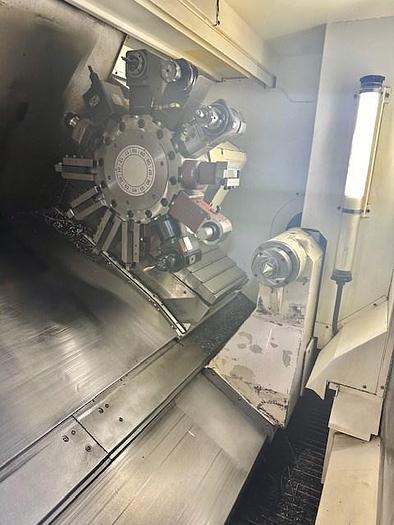

| Turret type | 12 Position Turret |
| Rapid Traverse Rates X / Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel | 60" |
| Machine dimensions lxwxh | 165" x 81" x 79" |
| Machine weight | 19,870 lbs. |
