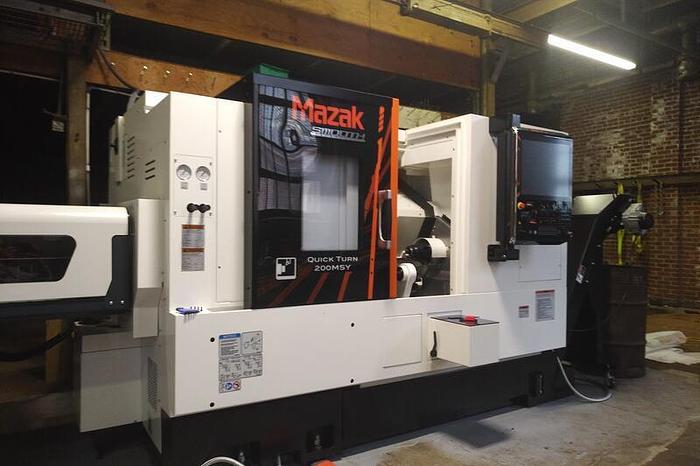

2019 Mazak Quick Turn 200MSY with Barfeed, Milling, Subspindle and Y Axis
2019 Mazak Quick Turn 200MSY with Barfeed, Milling, Subspindle and Y Axis
$169,500 (USD)
Location:Connecticut
Description
Y-Axis Capability
Full C Axis Spindle on Both Main & Subspindle
Milling & Drilling Capability

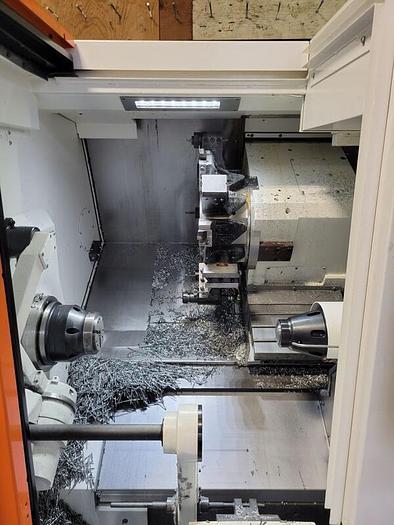

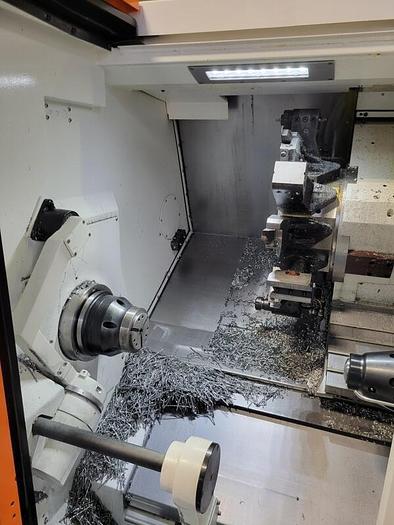

Subspindle
Automatic Tool Eye

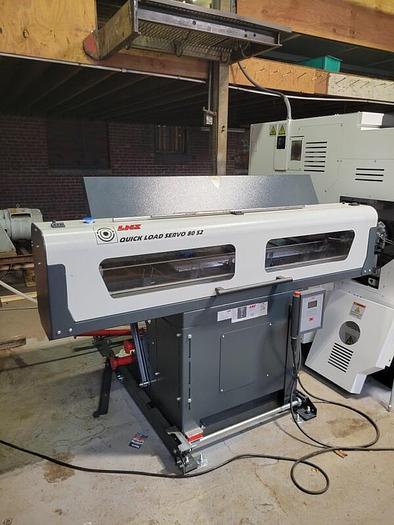

LNS Quick Load Servo 80-S2 Barfeed
Chip Conveyor
Automatic Parts Catcher

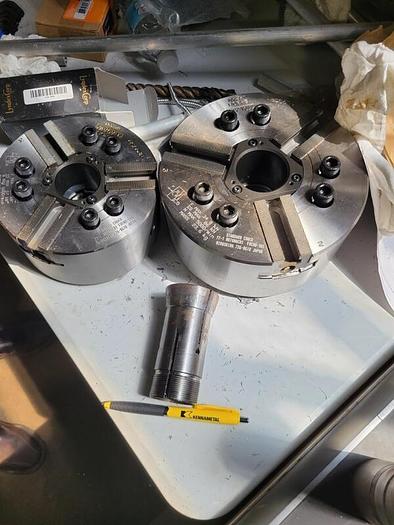

8" 3 Jaw Chuck for Main Spindle
6" 3 Jaw Chuck for Subspindle
Royal Products QG-65 Collet Chuck on Main Spindle
Royal Products QG-42 Collet Chuck on Subspindle

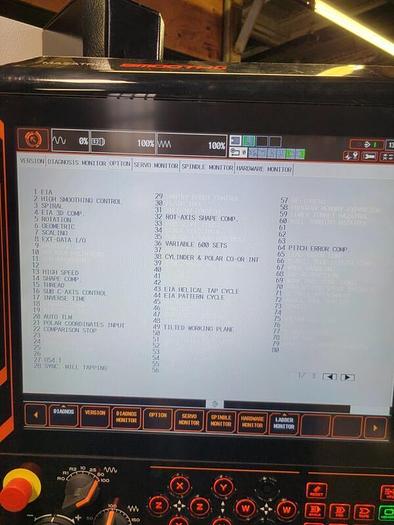

EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
High Smooth Control
Spiral Interpolation
Rotation
Geometric
Scaling
EXT-DATA I/O
Thread Cutting
High Speed
Shape Compensation
Sub C-Axis Control
Inverse Time
Polar Coordinates Input
Comparison Stop
G54.1
Synchronized Tapping
Rotational Axis Shape Compensatioun
Variable 600 Sets
Cylinder & Polar Coordinate Interpolation
Tilted Work Plane
Pitch Error Compensation
Multi Tap Transformer
All Available Manuals

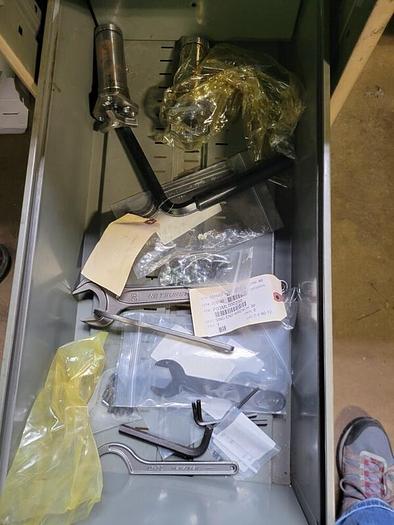

All Available Tooling

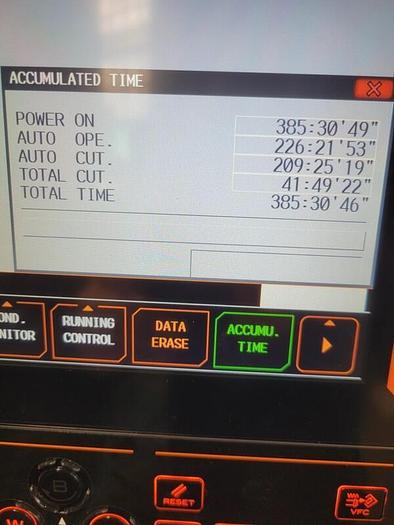

**ONLY 385 Power On Hours**
**ONLY 41 Total Cut Hours**
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn 200MSY |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119791 |

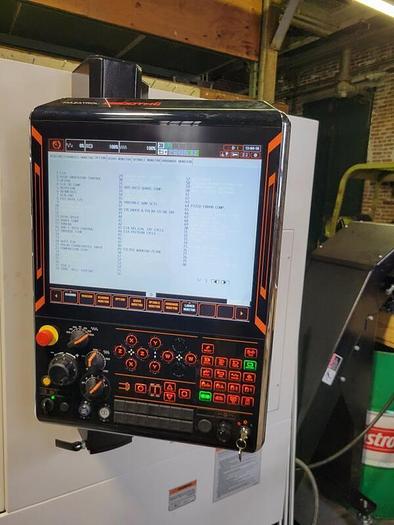

| Machine Control | Mazatrol Smooth G Control |
| Chuck Sizes Main / Subspindle | 8" & 6" 3-Jaw Hydraulic Chucks |
| Maximum Swing | 26.5" |
| Maximum Cutting Diameter | 14.75" |
| Distance Between Spindles | 22.701" |
| X-Axis Travel | 9" |
| Y-Axis Travel | 4" |
| Z-Axis Travel | 22.63" |
| W-Axis Travel | 23" |
| C-Axis Rotation | .001 Degrees Both Spindles |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3" / 2.6" |
| Main & Subspindle Speeds | 5,000 RPM / 6,000 RPM |
| Spindle Motor / Sub Spindle Motor | 35 HP / 10 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 10 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X, Y / Z | 1181 ipm / 394 ipm / 1181 ipm |
| Machine Dimensions LxWxH | 104"x67"x68" |
| Machine Weight | 12,802 lbs |
