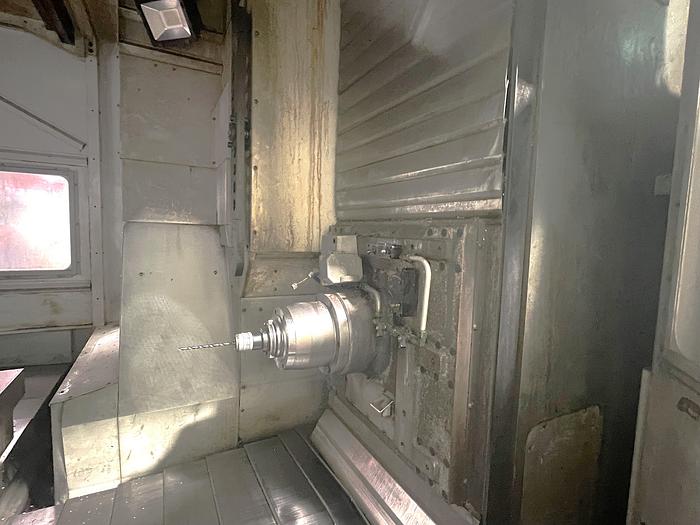

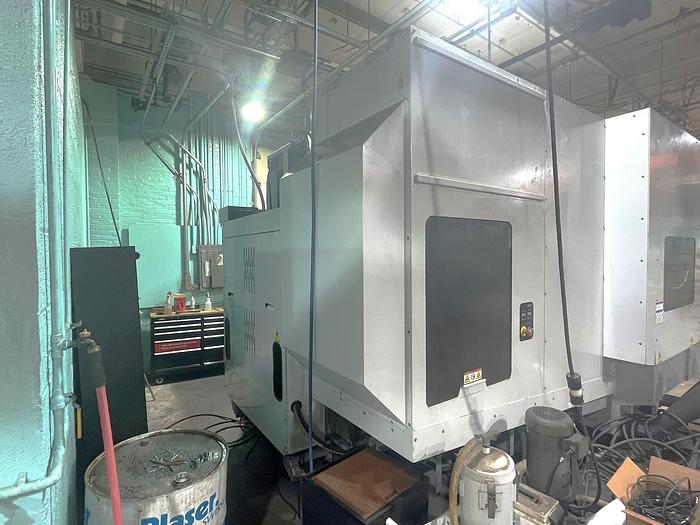

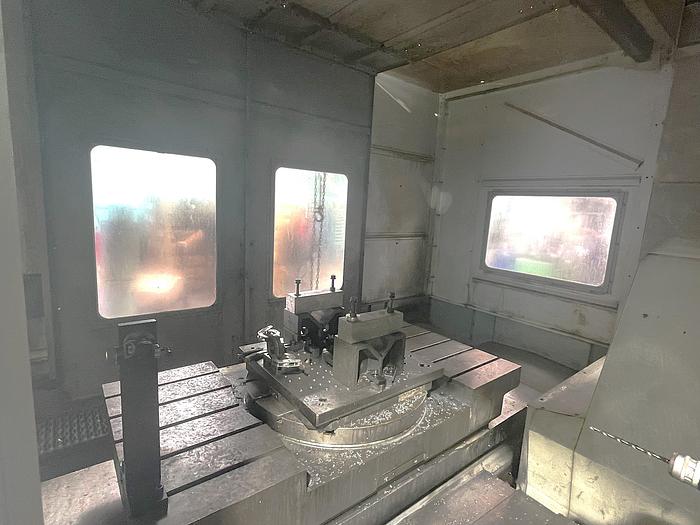

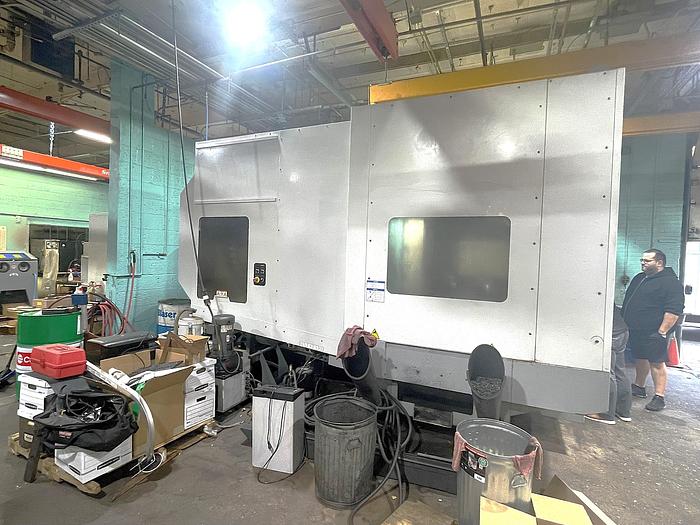

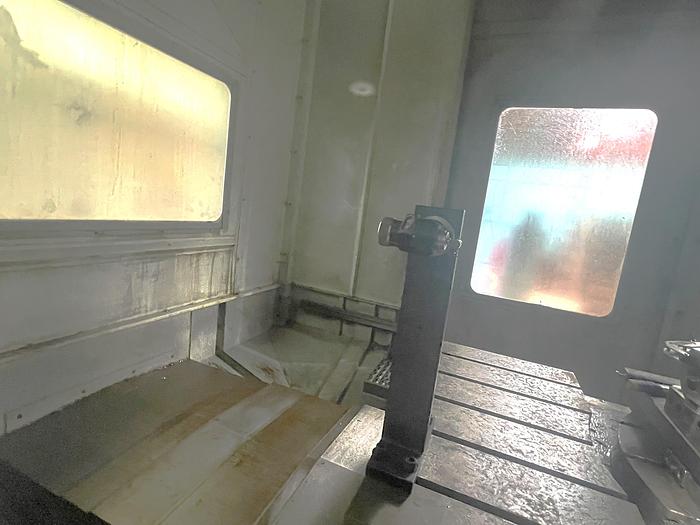

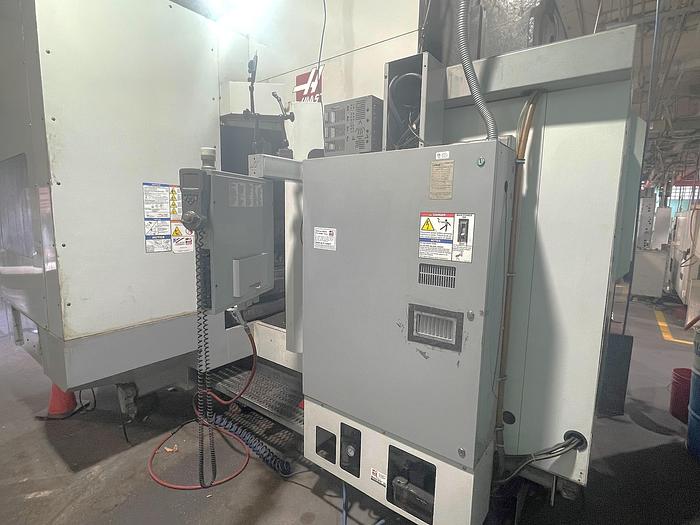

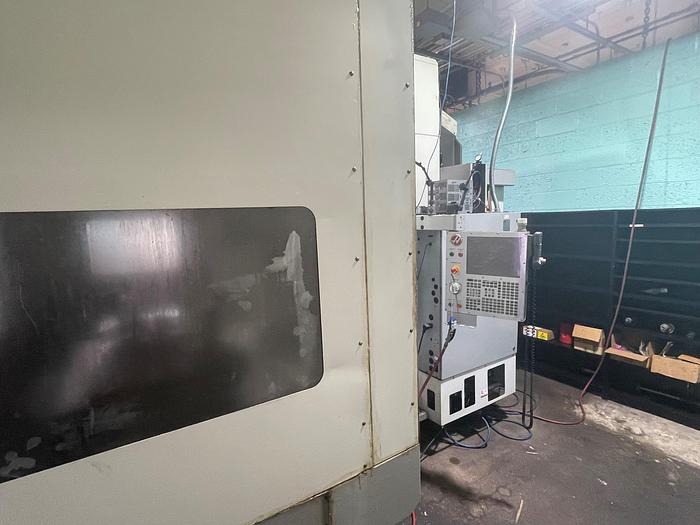

2010 Haas EC-1600YZT with Extended Y and Z Travel, Built in 4th Axis Table

No longer available

2010 Haas EC-1600YZT with Extended Y and Z Travel, Built in 4th Axis Table

$79,500 (USD)

Location:New York, NY

Description

Extended Y Axis Travel (50")

Extended Z Axis Travel (40")

Full 4th Built in Rotary Platter

Coolant Through the Spindle

Wireless Intuitive Probing System

Tool Probe Riser

Coordinate Rotation & Scaling

Spindle Orientation

User Definable Macros

Haas Intuitive Programming System

Programmable Coolant Nozzle

Visual Quick Code Programming

Remote Jog Handle

Dual Auger Style Chip Conveyors

Auxiliary Coolant Filter System

15" Color LCD Monitor

USB Port Interface

RS 232 Port Interface

Rigid Tapping

Memory Lock Keyswitch

Wired 195/260V Electrics

Show All

Specifications

ManufacturerHaas
ModelEC-1600YZT
Year2010
ConditionUsed
Stock Number119792
Table Size64" x 36"
Maximum Table Load10,000 lbs
B-Axis Table RotationFull 4th Axis
Diameter of 4th Axis Platter30"
X-axis travel64"
Y-Axis Travel50"
Z-Axis Travel40"
Spindle TaperCAT 50
Spindle Speed10,000 RPM
Spindle Motor40 HP 2-Speed Geared Head
Tool Magazine Capacity30 Position Tool Changer
Rapid Traverse Rates540 IPM
Maximum Tool Diameter / Length / Weight10" / 20" / 30 lbs
Machine Dimensions LxWxH190"x144"x135"
Machine Weight33,500 lbs
