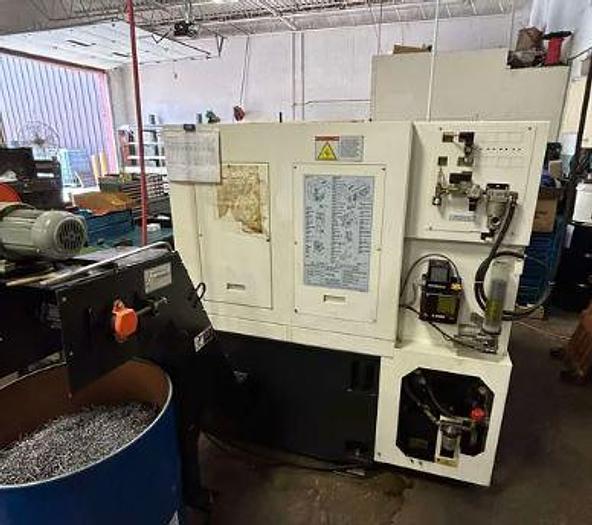

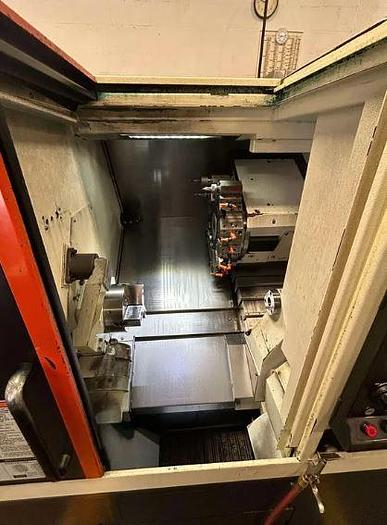

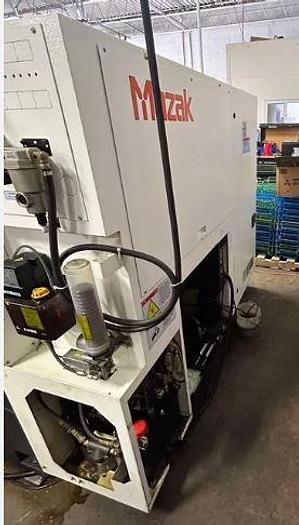

2013 Mazak Quick Turn Smart 100S
2013 Mazak Quick Turn Smart 100S
Contact us for price
Location:Illinois
orCall (863) 439-6066
Description

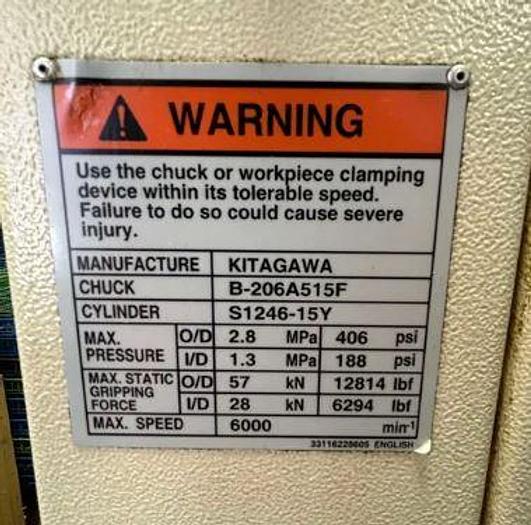

6" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
Transformer
RS 232 Port Interface
Relocation Device
All Available Manuals

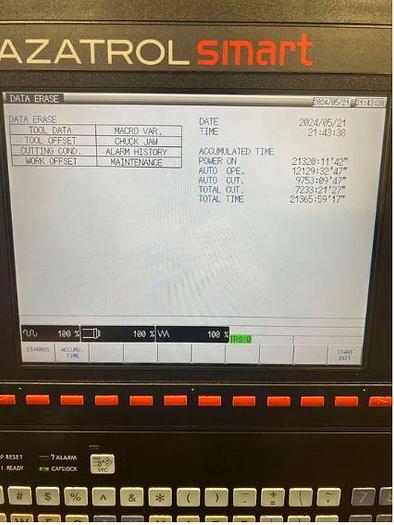

Total cut hours 7,233
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn Smart 100S |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119794 |
| Machine Control | Mazatrol Smart Control |
| Chuck Sizes Main / Subspindle | 6" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 23" |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 12.15" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 13.75" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2" / 1.65" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Station Turret Bolt on Type |
| Rapid Traverse Rates X / Z | 1299 IPM / 1417 IPM |
| Tailstock Body Travel / Center | 13.75" / MT #5 |
| Machine Dimensions LxWxH | 75"x63"x67" |
| Machine Weight | 7,716 lbs |
