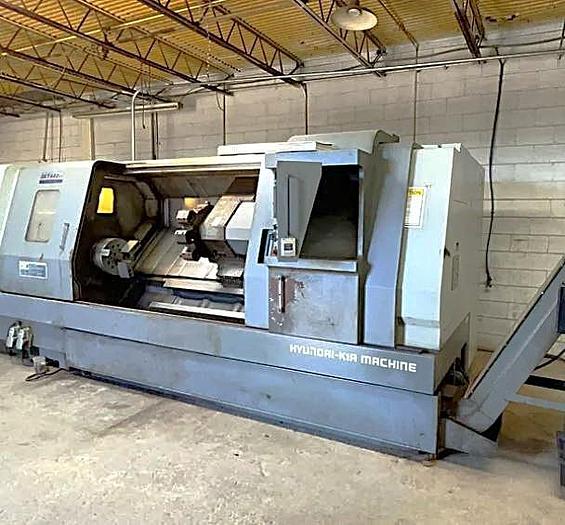

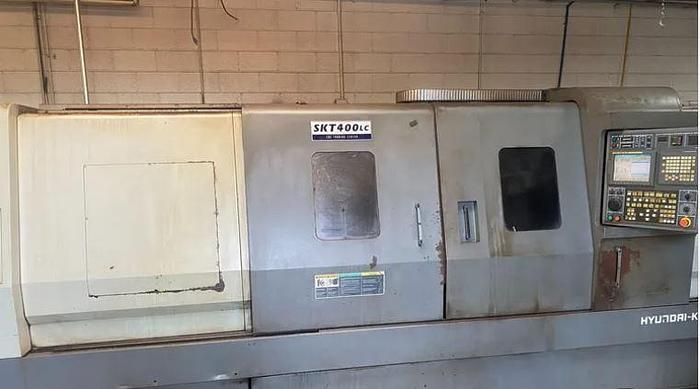

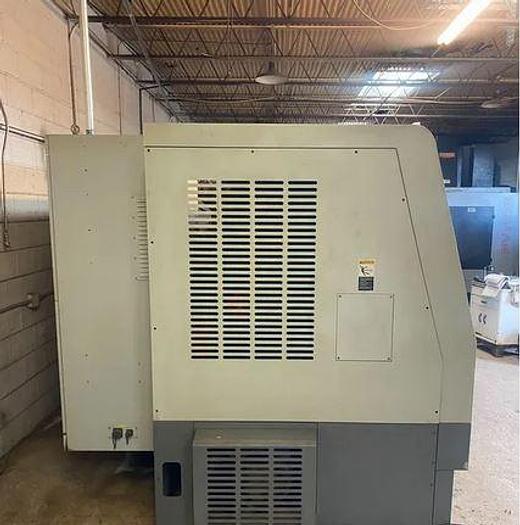

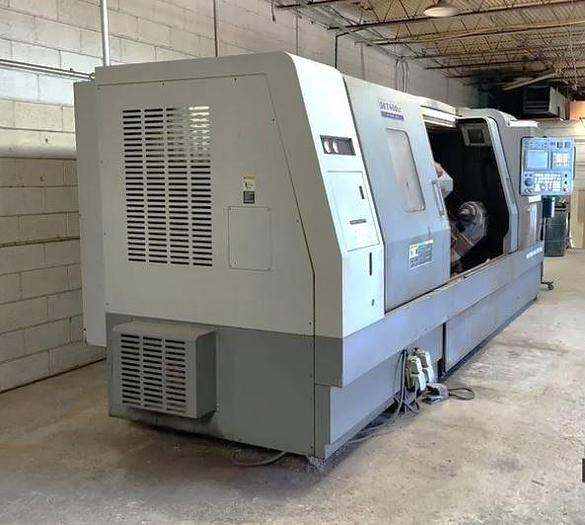

2006 Hyundai Kia SKT-400LC Long Bed Heavy Duty Lathe
2006 Hyundai Kia SKT-400LC Long Bed Heavy Duty Lathe
$77,900 (USD)
Location:Texas
orCall (863) 439-6066
Description

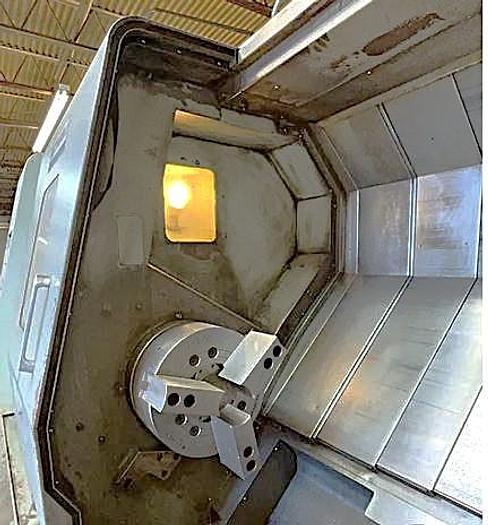

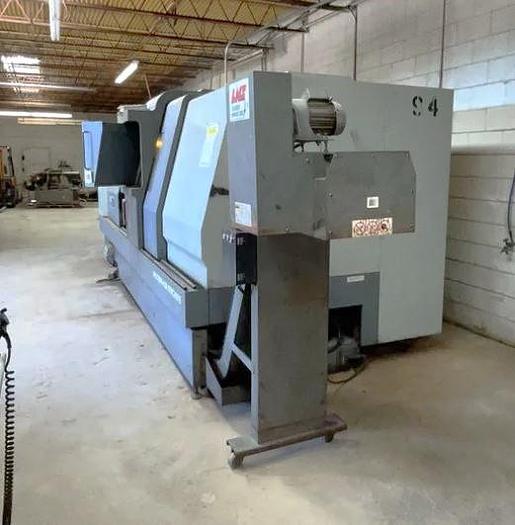

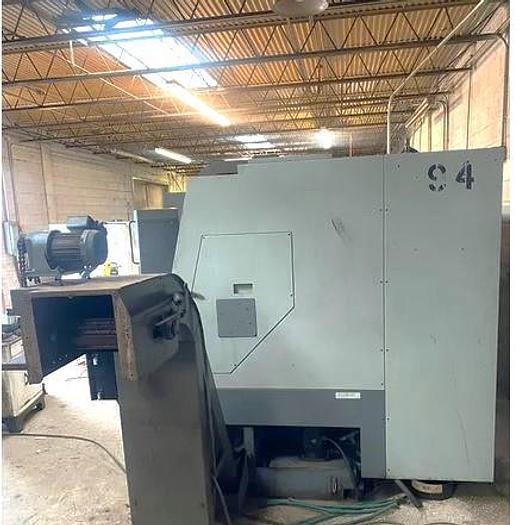

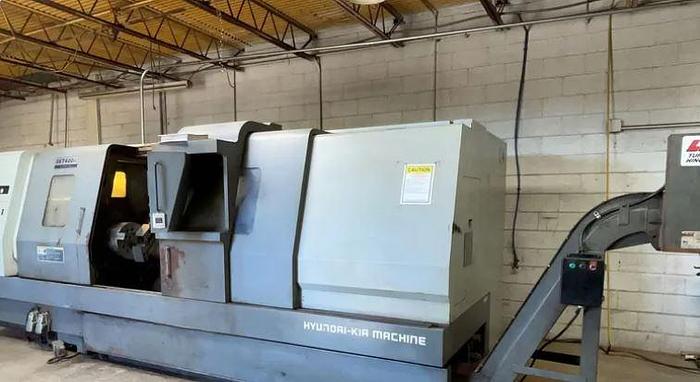

15" Kitagawa 3 Jaw Hydraulic Chuck Side Exit Chip Conveyor
Tailstock
Slant Bed Design
Geared Headstock
Boxed Ways
Dual Foot Pedals for Chuck and Tailstock Complete Coolant System
RS 232 Port Interface
All Available Manuals All Available Tooling
*Not certain of year of manufacture, needs to be confirmed*

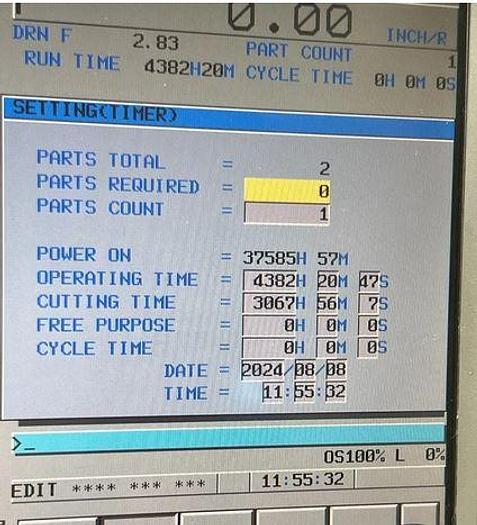

**Operating Time 4382**
**Cutting Time 3067**
Specifications
| Manufacturer | Hyundai Kia |
| Model | SKT-400LC |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119803 |

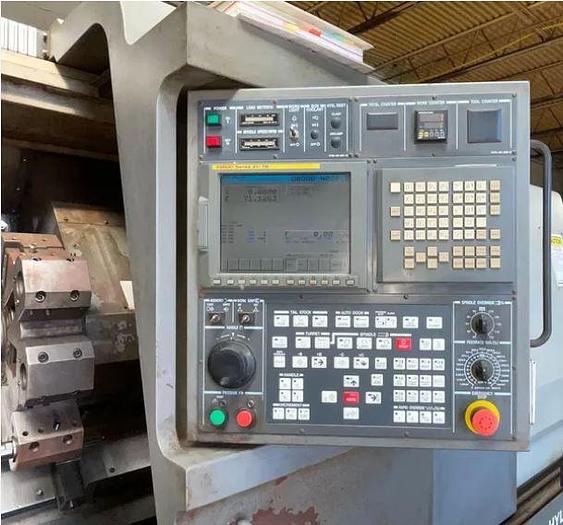

| Control | Fanuc 21i-TB Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 28.5" |
| Maximum Turning Diameter | 22.45" |
| Maximum Turning Length | 83.07" |
| Maximum Bar Capacity | 4.61" |
| X-Axis Travel | 12.6" |
| Z-Axis Travel | 86.68" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 20 - 2,000 RPM |
| Spindle Motor | 40 HP |

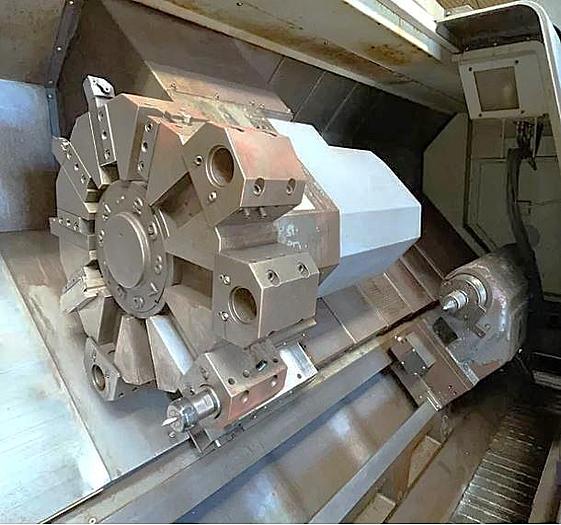

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Body Travel / Center | 82.74" / MT #5 |
| Machine Dimensions | 214" X 88" X 90" |
| Machine Weight | 24,251 lbs. |
