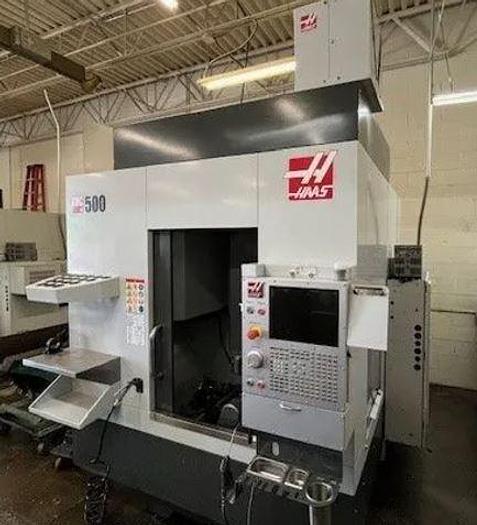

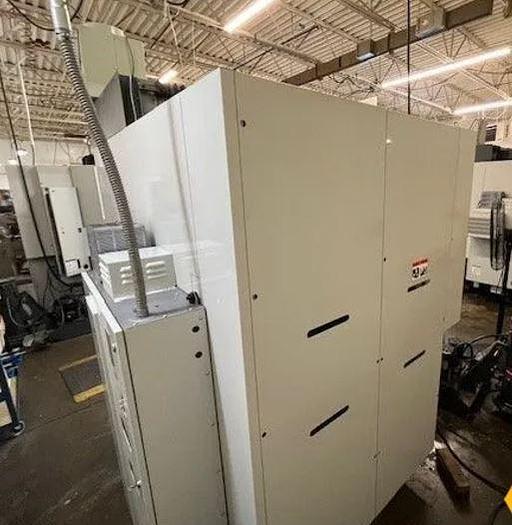

2020 Haas UMC-500
2020 Haas UMC-500
Contact us for price
Location:California
orCall (863) 439-6066
Description

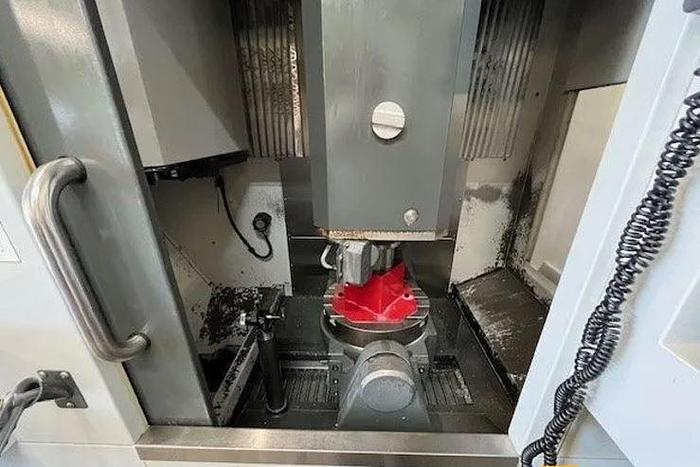

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 1000 PSI
Auxiliary Coolant Filter
Renishaw Probing with Tool & Part Probing

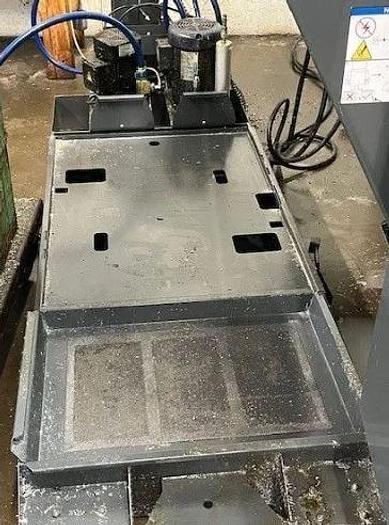

Chip Conveyor
15,000 RPM Spindle
50 Station Tool Changer
Remote Jog Handle
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Haas Visual Programming System
Rigid Tapping
High Speed Machining
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump

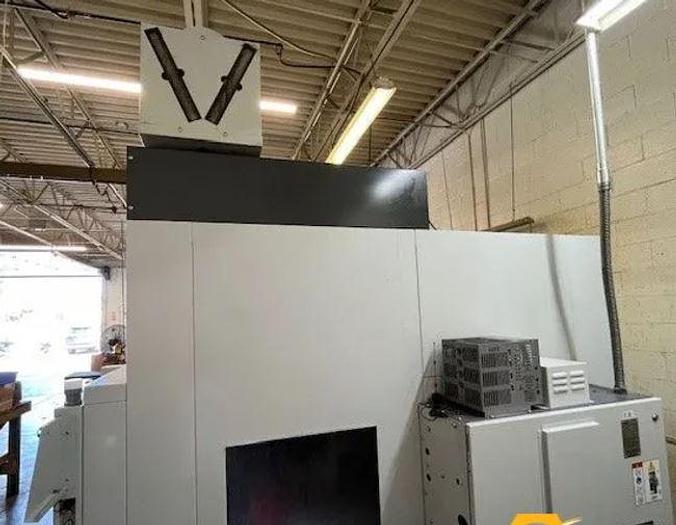

Enclosure Exhaust
Specifications
| Manufacturer | Haas |
| Model | UMC-500 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119806 |
| Table size | 15.7" Diameter |
| Table load capacity | 500 lbs |
| X axis travel | 24" |
| Y axis travel | 16" |
| Z axis travel | 16" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 120" x 98" x 110" |
| Machine weight | 12,500 lbs |
