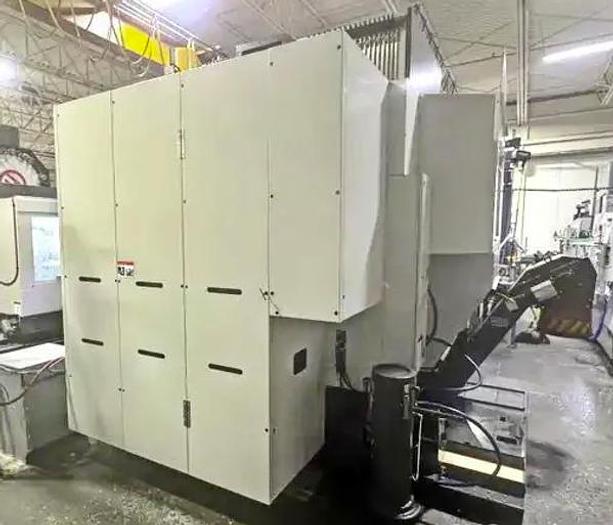

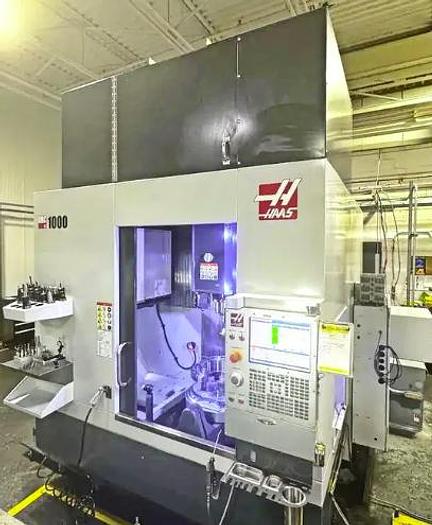

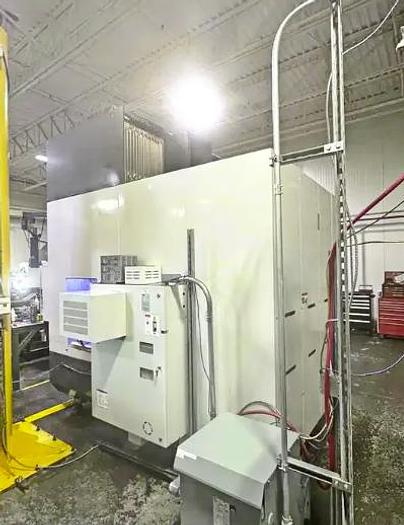

2020 Haas UMC-1000
2020 Haas UMC-1000
Contact us for price
Location:Pennsylvania
orCall (863) 439-6066
Description
Trunnion Style 5th Axis Table

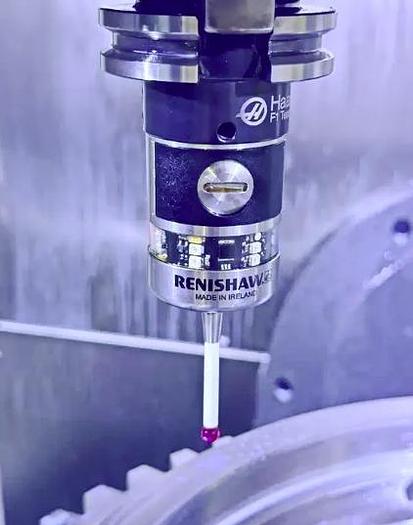

WIPS Renishaw Tool & Part Probe
VPS Editing
Media Display
1GB Memory
Compensation Tables
Coolant Through the Spindle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Chip Conveyor
Programmable Coolant Nozzle
Rigid Tapping
Remote Jog Handle
High-Speed Machining
Tool Air Blast
Coolant System with Tank & Pump & 95 Gallon Coolant Tank
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface

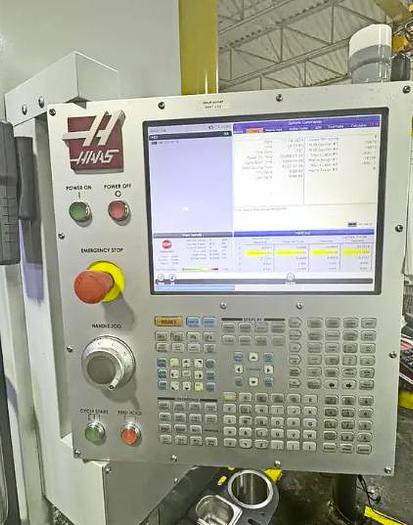

15" Color LCD Monitor w/ Touch Screen Control
Modified lid for Crane loading if needed
** Price New as Equipped at $ 264,475**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119807 |
| Table size | 24.8" Diameter |
| Table load capacity | 1,000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT 40 |
| Spindle speed | 10,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 15,600 lbs |
