2018 Haas ST-30
2018 Haas ST-30
$62,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Programmable Tailstock

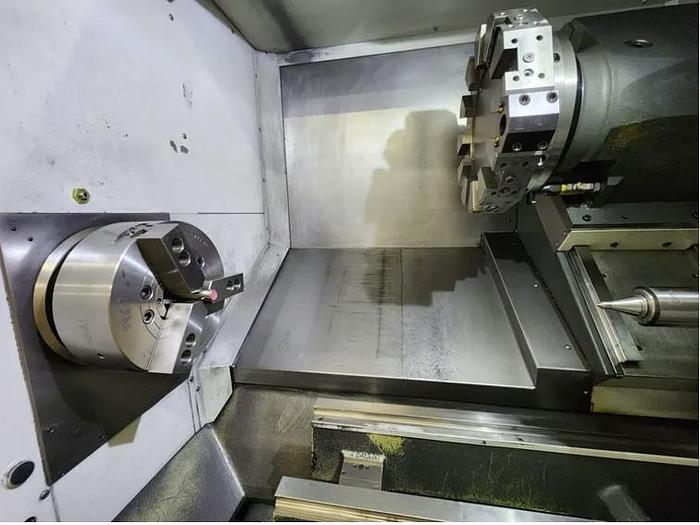

10" 3 Jaw Hydraulic Chuck

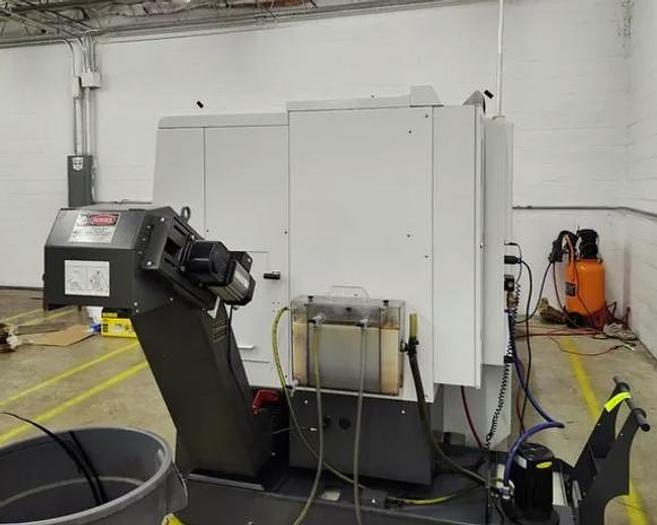

Chip Conveyor
Rigid Tapping
Oil Separator
spindle Orientation
RS 232 Port Interface
All Available Tool Blocks
Coolant System with Tank & Pump
Assorted Tool Holders
Specifications
| Manufacturer | Haas |
| Model | ST-30 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119808 |

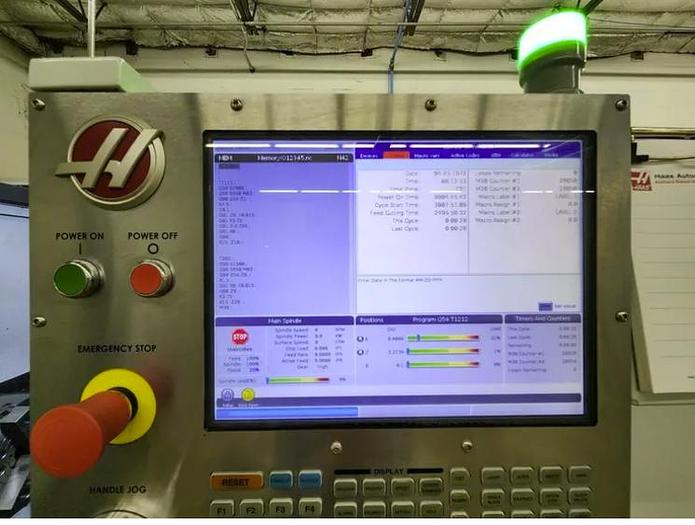

| Machine Control | Haas CNC Control |
| Chuck Size | 10" |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 18" |
| Maximum Machining Length | 23" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
