2012 Haas TL-3
2012 Haas TL-3
$32,500 (USD)
Location:Indiana
orCall (863) 439-6066
Description

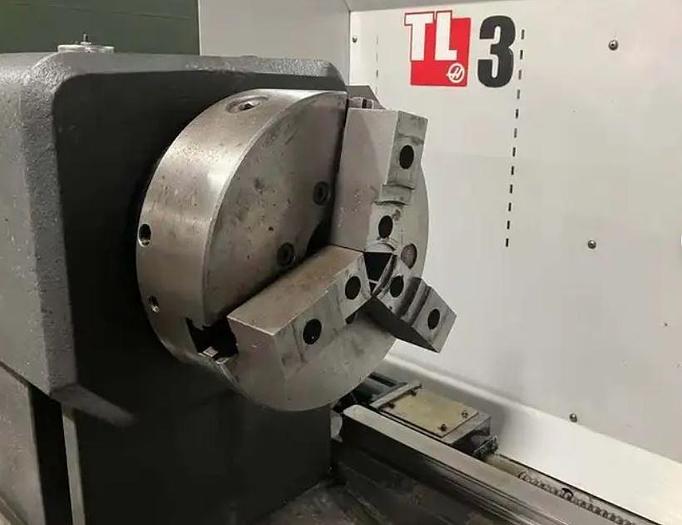

12" 3 Jaw Chuck
Tailstock

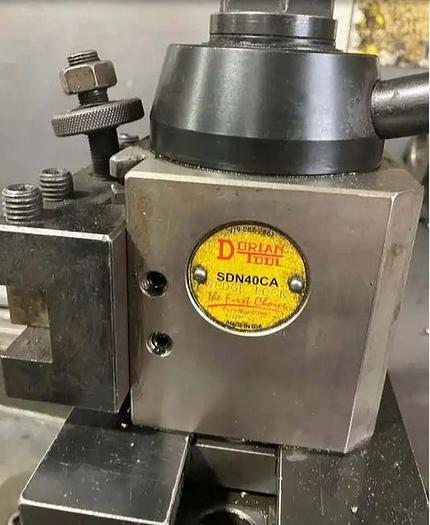

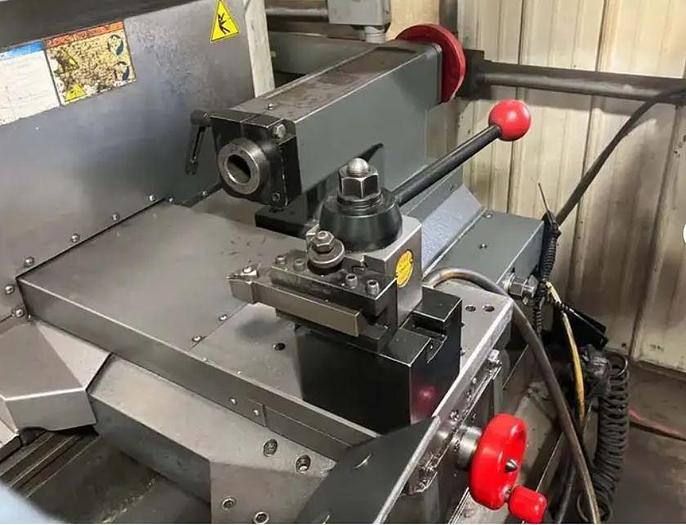

Dorian Tool Post
Memory Lock Key Switch
2-Speed Gearbox
Intuitive Programming System
USB Port Interface
RS 232 Port Interface
Work Light
Coolant Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | TL-3 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119812 |

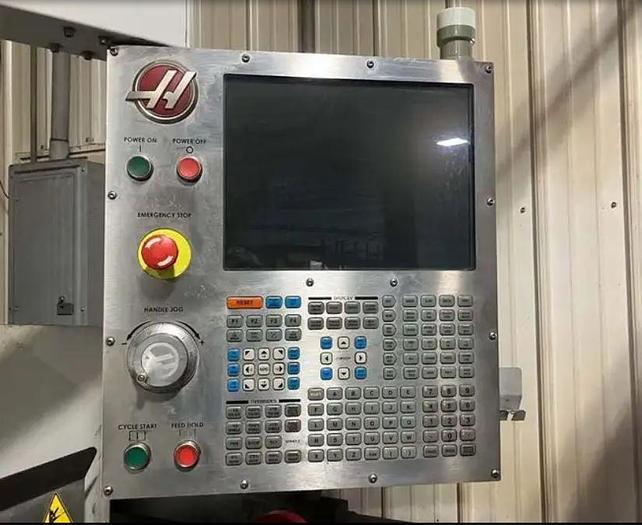

| Machine Control | Haas CNC Control |
| Chuck Size | 12" 3-Jaw Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0-1,800 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Motor | 18 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123"x77"x87" |
| Machine Weight | 9,624 lbs |
