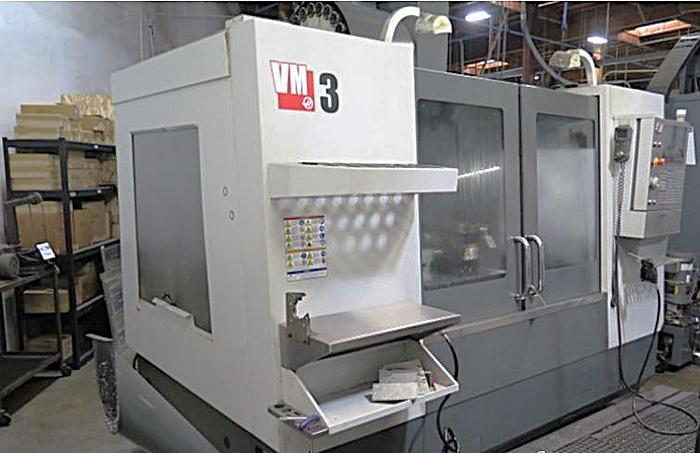

2015 Haas VM-3 VMC, Probing, Coolant Through the Spindle, 4th Axis

2015 Haas VM-3 VMC, Probing, Coolant Through the Spindle, 4th Axis

Contact us for price

Location:California

orCall (863) 439-6066

Description

4th Axis Drive & Wiring

Haas 4th Axis Rotary Table

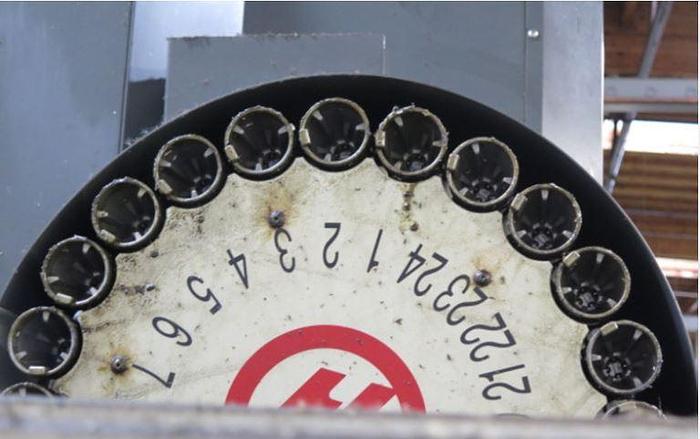

24+1 Position Side Mounted Tool Changer

Coolant Through the Spindle

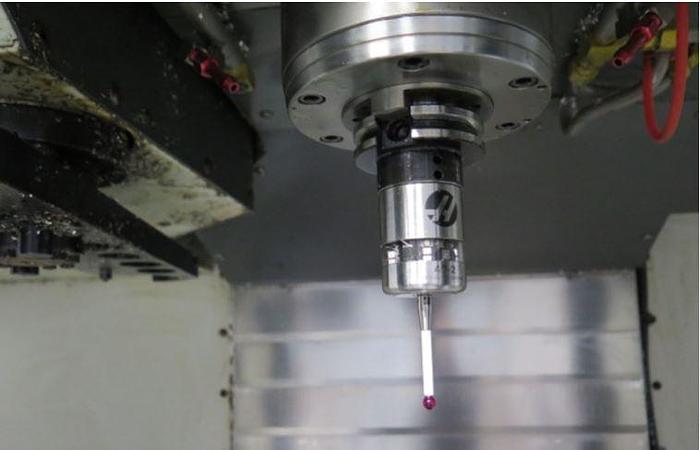

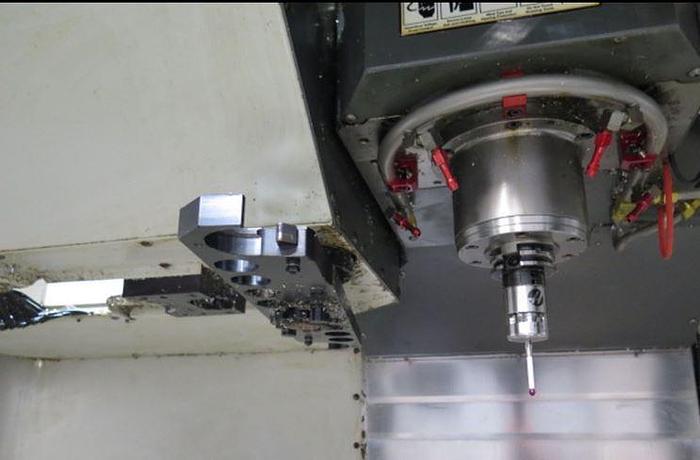

WIPS (Renishaw Part & Tool Probe)

12,000 RPM Spindle

Auger Style Chip Conveyor

High Speed Machining

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

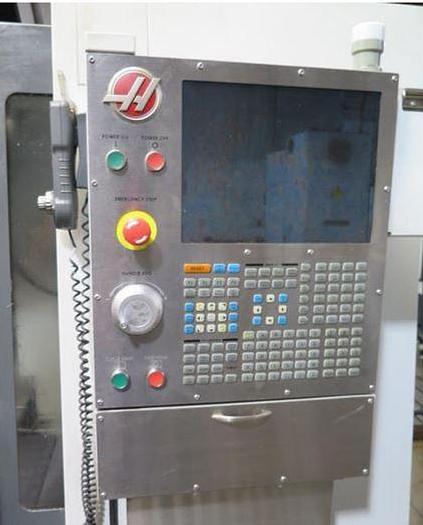

Haas Intuitive Programming System

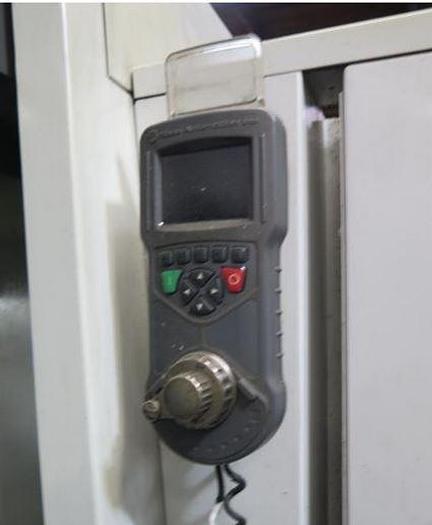

Remote Jog Handle

Programmable Coolant Nozzle

Rigid Tapping

High Intensity Lighting

Coolant Tank with Pump

Ethernet Interface

RS 232C Port Interface for DNC Operation

USB Port Interface

Wired 195/260V Electrics

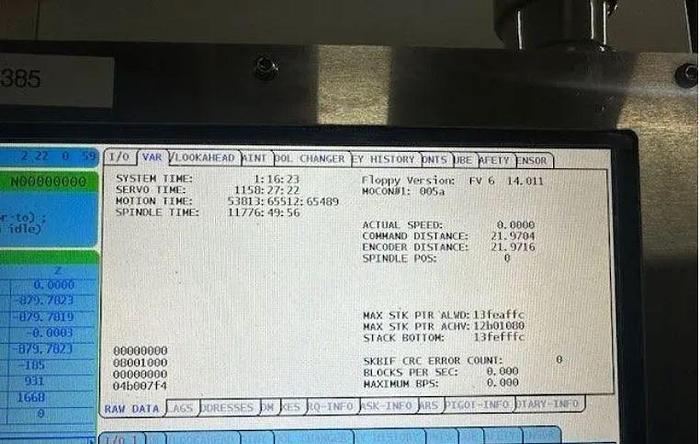

**Spindle Hours 11,776**

Show All

Specifications

ManufacturerHaas
ModelVM-3
Year2015
ConditionUsed
Stock Number119818

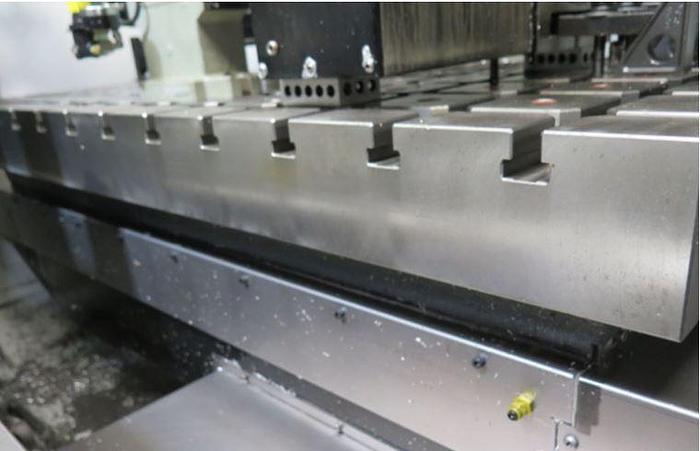

Table size54" x 25"
Max table load4,000 lbs.
X axis travel40"
Y axis travel26"
Z axis travel25"
Spindle taperCAT #40
Spindle speed12,000 RPM
Spindle motor30 HP
Spindle nose to table top4.2" - 29.2"
Number of tool positions24 + 1 Position Side Mount
Max tool weight12 lbs.
Rapid Traverse Rates710 IPM
Machine dimensions122" x 96" x 100"
Machine weight (approximately)14,000 lbs.
