2019 Haas Super Mini Mill 2 with Probing, High Speed Machining, Chip Auger
Sold
2019 Haas Super Mini Mill 2 with Probing, High Speed Machining, Chip Auger
$29,500 (USD)
Location:Indiana
Description

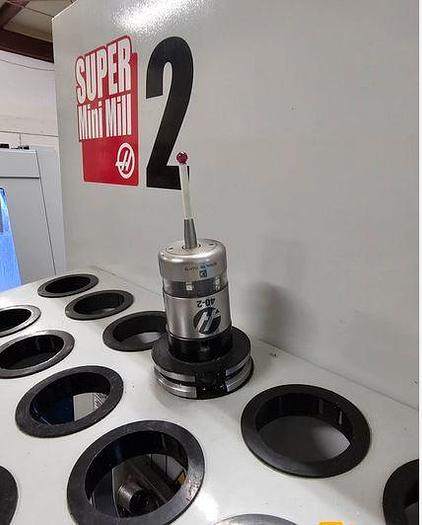

Haas Probing Package with both Tool & Part Probing
Auger Style Chip Conveyor
20 Station Tool Changer
High Flow Coolant Pump
Haas Visual Part Programming System
Coordinate Rotation & Scaling
User Definable Macros
Spindle Orientation
Rigid Tapping
1 GB Programming Memory
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Wired 220V Three Phase Power
**AVAILABLE IMMEDIATELY, SPECIAL PRICING BEFORE YEAR END ONLY**
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119823 |

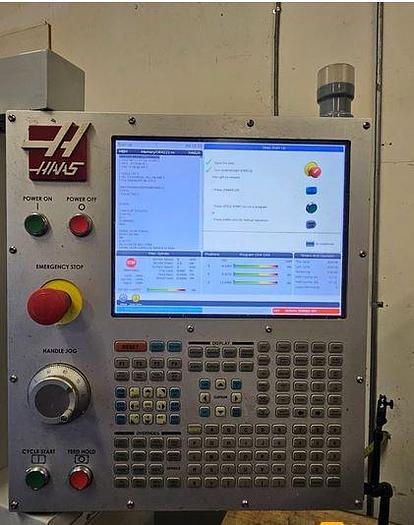

| Machine Control | Haas NextGen Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 20 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91" x 88" x 100" |
| Machine Weight | 6,000 lbs |
