2020 Haas VF4SS with Haas TR-160-2 Trunnion 4th/5th Axis Table, Probing, Coolant Through the Spindle
2020 Haas VF4SS with Haas TR-160-2 Trunnion 4th/5th Axis Table, Probing, Coolant Through the Spindle
$119,500 (USD)
Location:Indiana
Description
4th Axis Drive & Wiring
5th Axis Drive & Wiring

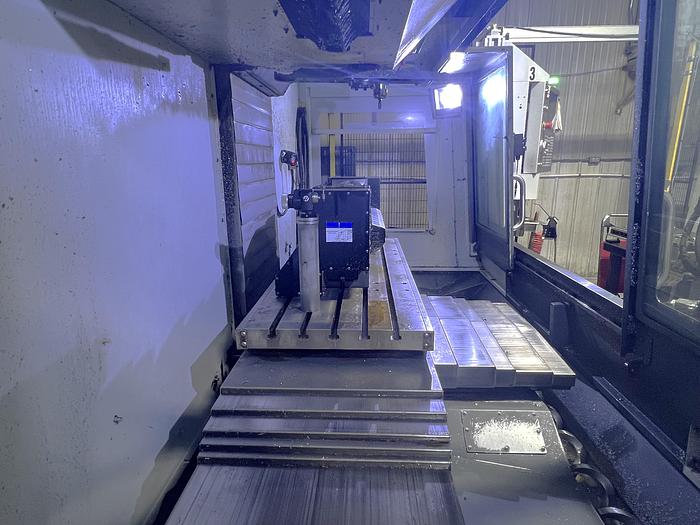

Haas TR-160-2 Trunnion Style 2 Axis Table
Haas Wireless Intuitive Probing Package
Tool Probe Riser Block
1000 PSI Coolant Through the Spindle
Auxiliary Coolant Filter System
Auger Style Chip Removal
Coolant Maintenance Package
Coolant Mist Condenser
Coolant Tank Oil Skimmer
Automatic Coolant Refill
Enclosure Exhaust System
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Auto Door for Mills
1 GB Program Storage
Early Power Failure Detection Module
Window Air Blast
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
Haas Connect: Remote Monitoring
Haas Drop
Media Display M-Code M130
Safe Run
WiFi Connection
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation

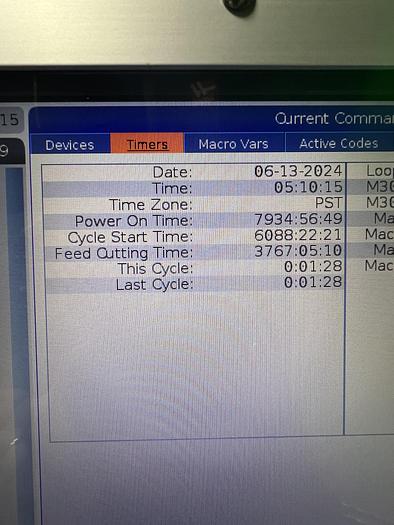

**Power On Hours 7,934**
**Cycle Start Hours 6,088**
**Feed Cutting Hours 3,767**
**Price New as Equipped at $187,645**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119845 |

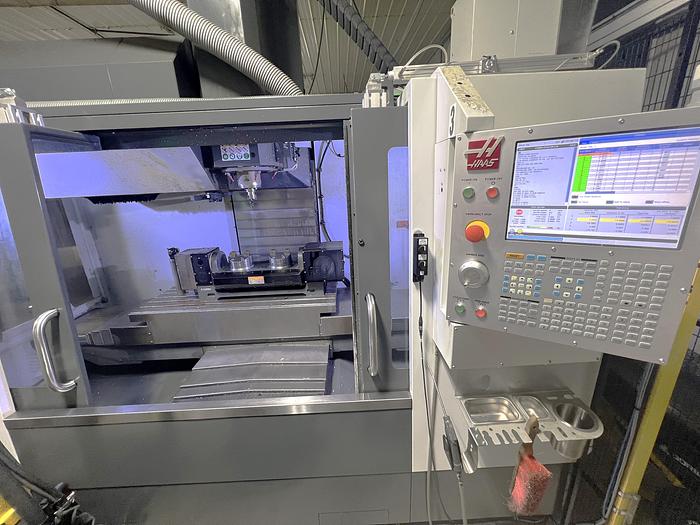

| Machine Control | Haas NextGen Control |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |

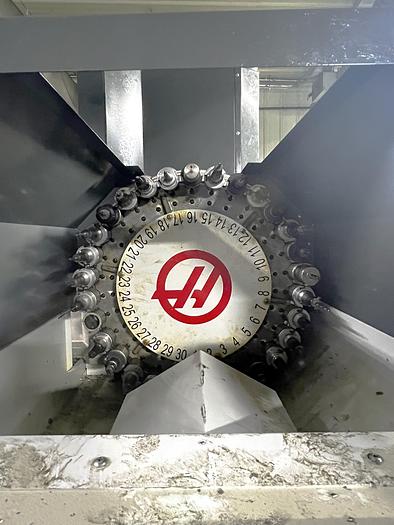

| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
