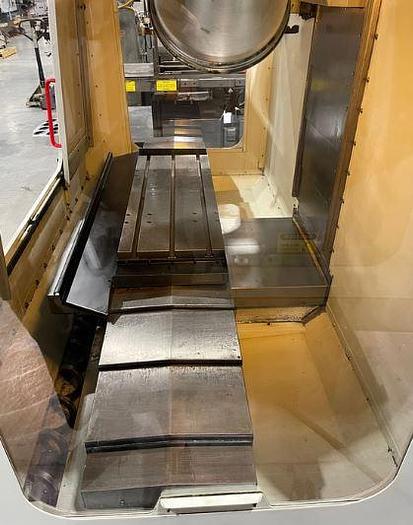

2002 Haas VF-2B
2002 Haas VF-2B
$21,500 (USD)
Location:Florida
orCall (863) 439-6066
Description
Prewired for a 4th Axis
Auger Style Chip Conveyor
1 MB Program Memory
Rigid Tapping
Spindle Orientation
Coordinate Rotation & Scaling
2 Speed Gearbox
3.5" Floppy Disk Drive Interface
RS232 Port Interface
Flood Coolant
Coolant Tank with Pump
460V / 3 Phase / 60 HZ
All Available Manuals
Servo Time 11,888
Motion Time 12,870
Spindle Time 13,624
Specifications
| Manufacturer | Haas |
| Model | VF-2B |
| Year | 2002 |
| Condition | Used |
| Stock Number | 119846 |
| Table Size | 36"x14" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 rpm |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
