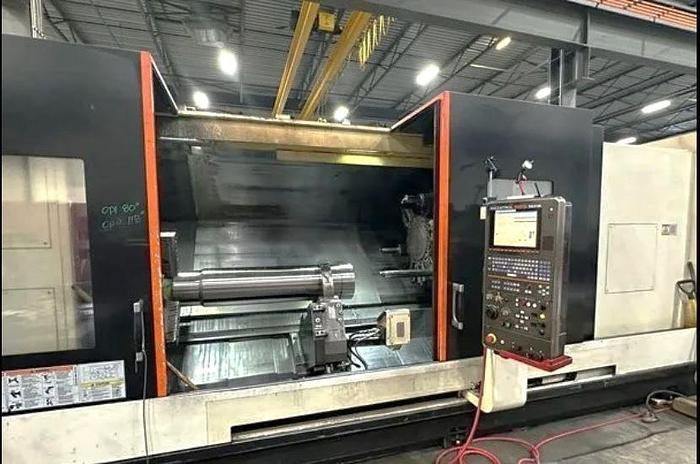

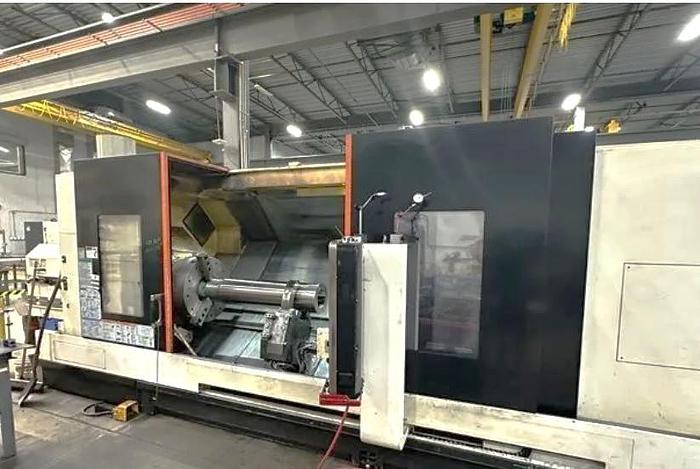

2011 Mazak Slant Turn Nexus 550M/3000 Big Bore with Milling Capability and 12.5" Bar Capacity
2011 Mazak Slant Turn Nexus 550M/3000 Big Bore with Milling Capability and 12.5" Bar Capacity
$299,500 (USD)
Location:Alberta, Canada
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

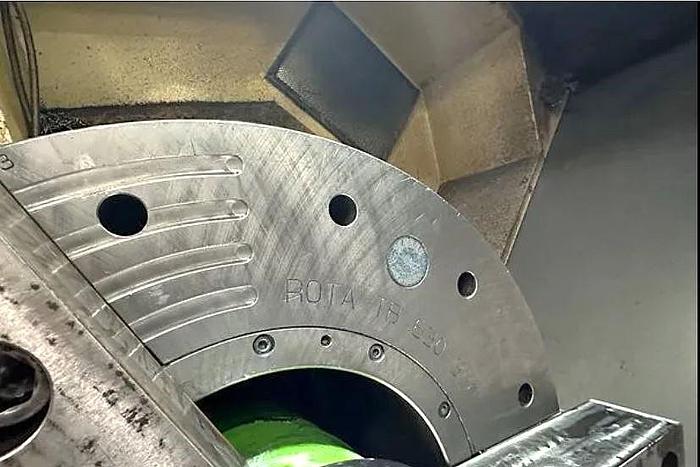

24" 3 Jaw Schunk Rota TB 630-380 Air Chuck

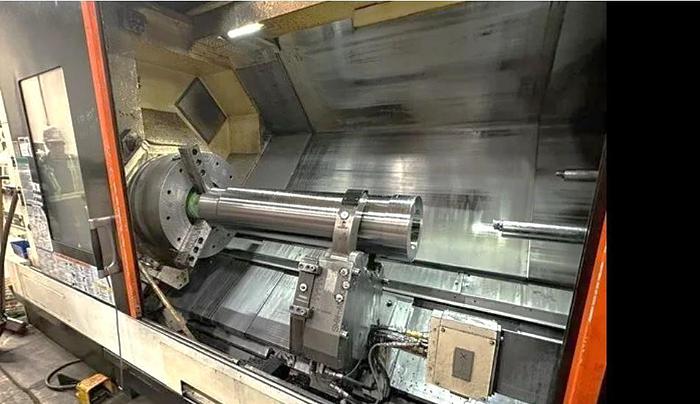

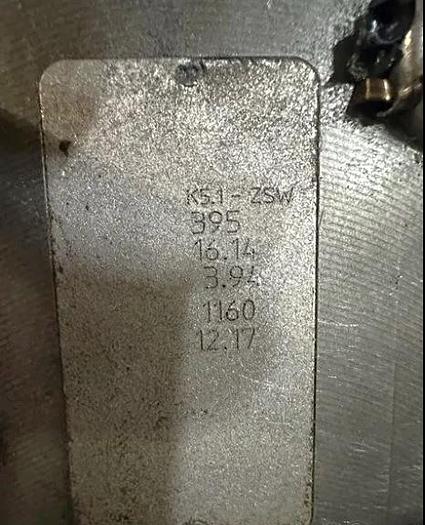

Model K5.1 - ZSW 3.94-16.14" Hydraulic Steady Rest
Chip Conveyor
ProgrammableTailstock
Tool Presetter
EIA/ISO Input Function
Absolute Positioning
RS 232 Port Interface
USB Port Interface
Network Interface
Windows XP Operating System
MT Connect Prep
Chuck Open / Close
Multi Tap Transformer
All Available Tooling
All Available Manual
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn Nexus 550M/3000 Mazatrol Matrix Nexus |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119865 |

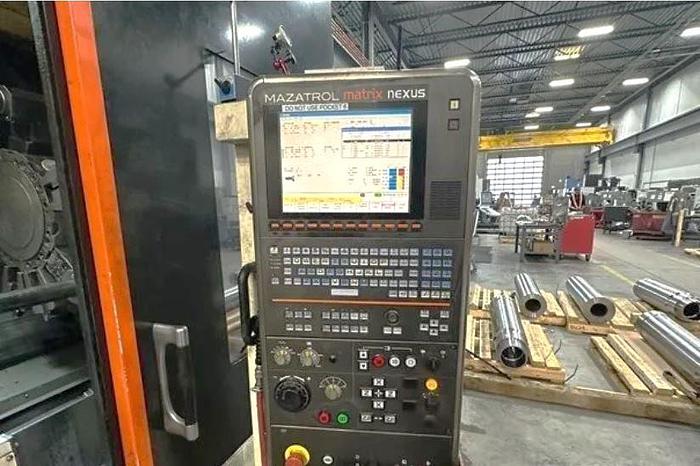

| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 24.8" 3 Jaw Air Chuck |
| Maximum swing | 40.94" |
| Maximum cutting diameter | 35.8" |
| Maximum turning length | 126.38" |
| X-axis travel | 18.25" |
| Z-axis travel | 125.25" |
| C axis increment | .001 Degree Full C |
| Spindle nose / spindle bore | A2-20" / 12.5" |
| Spindle speed - 2 speed range | 4 - 750 RPM |
| Spindle motor 30 min. / cont. | 60 HP / 50 HP |
| Rotary tool motor / speeds | 15 HP / 4,000 RPM |

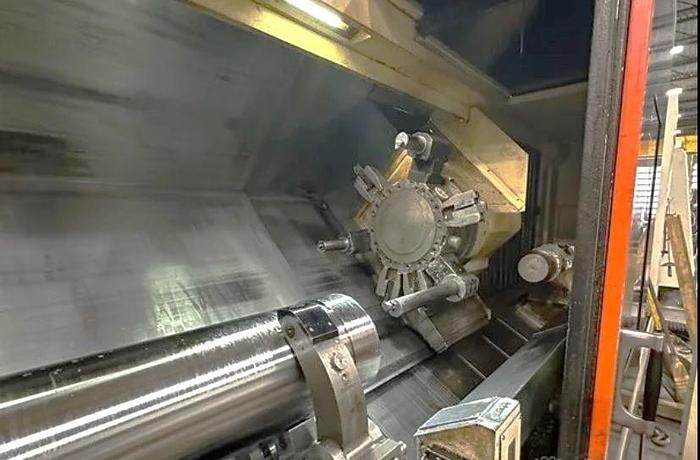

| Number of turret positions | 12 Turret Positions |
| Turning tool / boring tool | 1.25" sq. / 2.5" round |
| Rapid traverse rates x / z | 787 IPM / 945 IPM |
| Tailstock body / quill travel | 116.75" / 9.8" |
| Tailstock quill diameter / center | 7.09" / MT #6 |
| Machine dimensions | 365" x 117" x 101" |
| Machine Weight | 51,667 lbs. |
