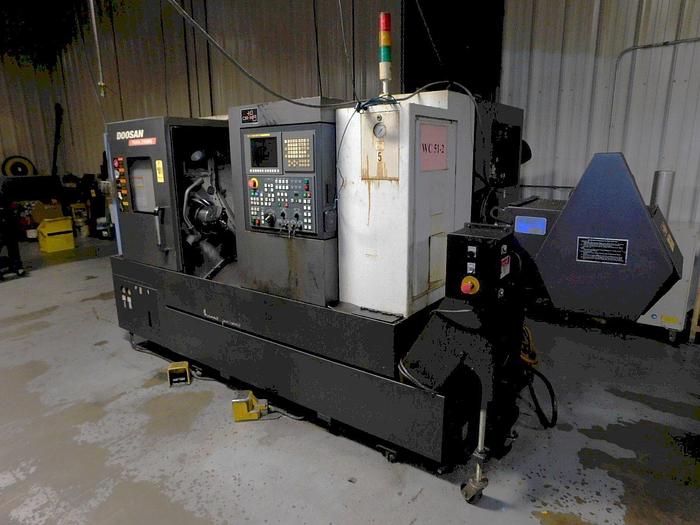

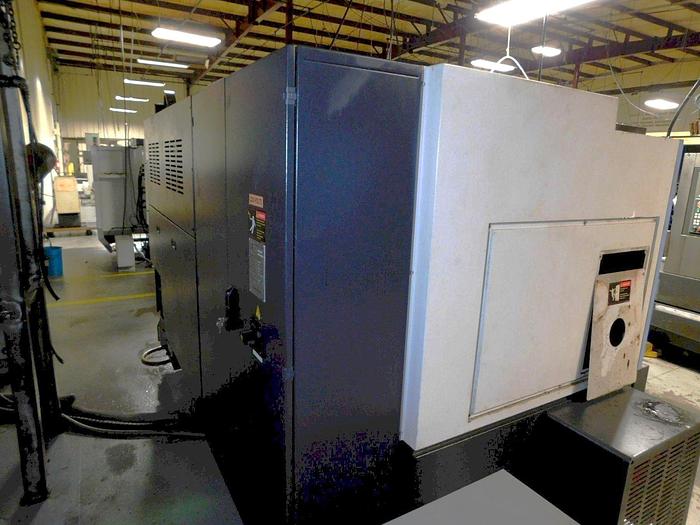

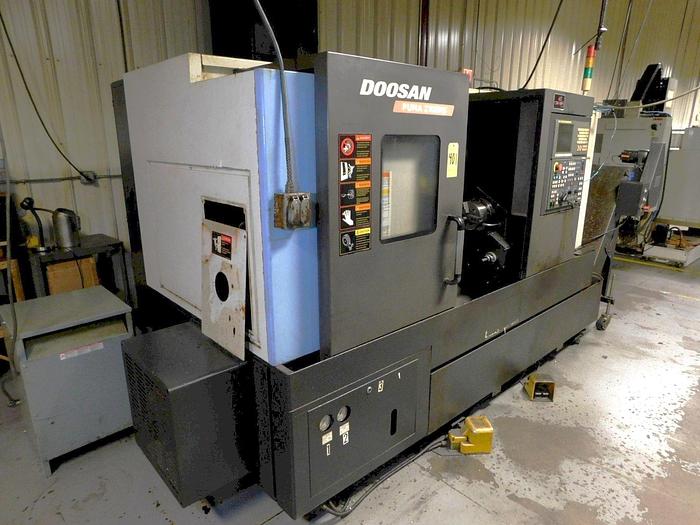

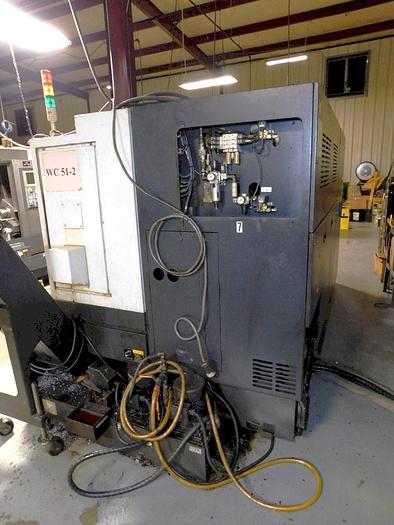

2012 Doosan Puma 2100MS with Milling and Subspindle, Chip Conveyor

2012 Doosan Puma 2100MS with Milling and Subspindle, Chip Conveyor

$69,500 (USD)

Location:Illinois

orCall (863) 439-6066

Description

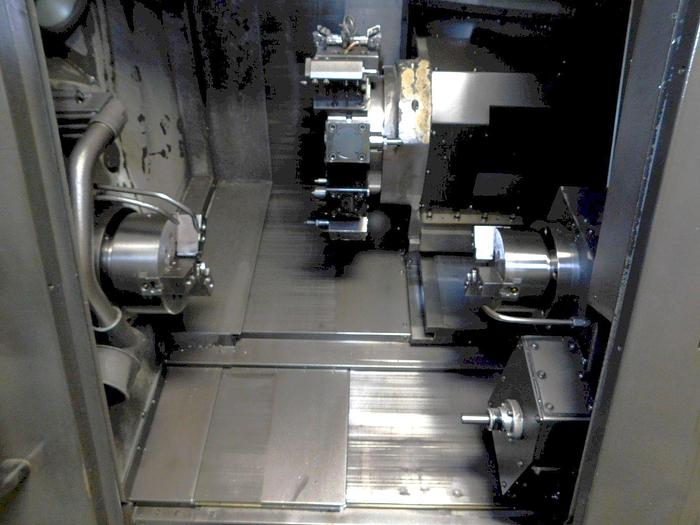

Full C Axis Spindle Rotation - Both Spindles

Live Milling / Drilling Capability

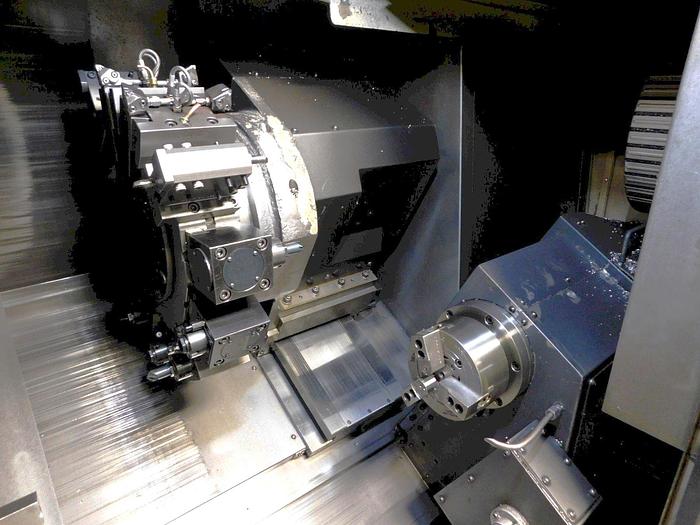

Subspindle

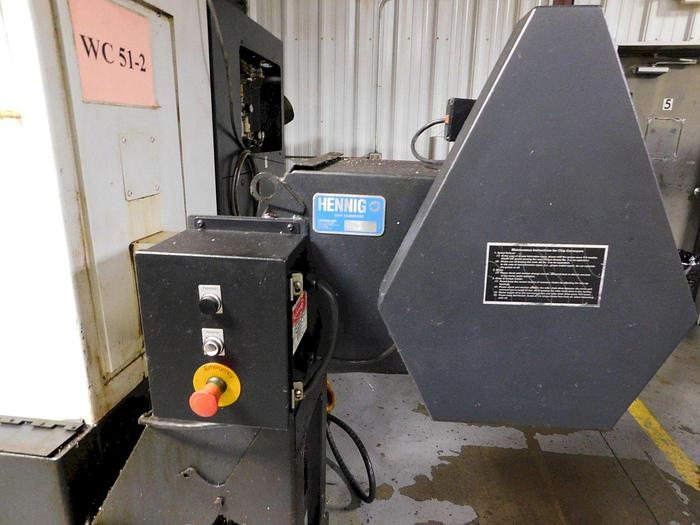

Chip Conveyor

8" 3 Jaw Hydraulic Chuck - Main Spindle

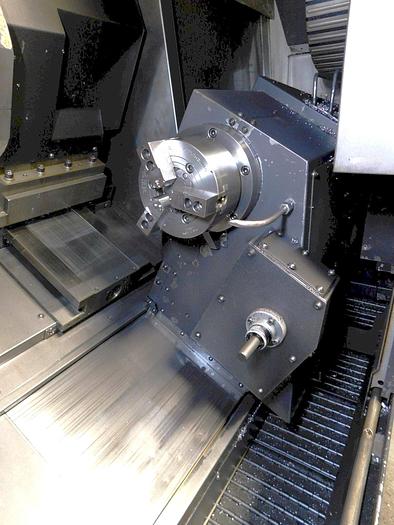

6" 3 Jaw Hydraulic Chuck - Subspindle

Tool Presetter

Transformer

Coolant System with Tank & Pump

3 Color Machine Status Lights

3.5" Floppy Disk Interface

RS 232 Port Interface

All Available Manuals

All Available Tooling

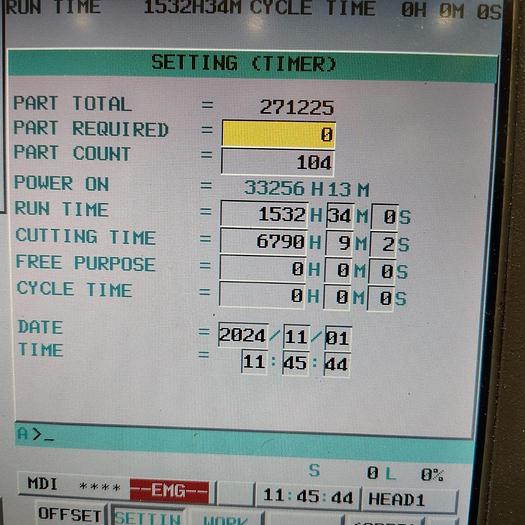

**Power On Hours 33,526**

**Cutting Hours 6,790**

Show All

Specifications

ManufacturerDoosan
ModelPuma 2100MS
Year2012
ConditionUsed
Stock Number119867

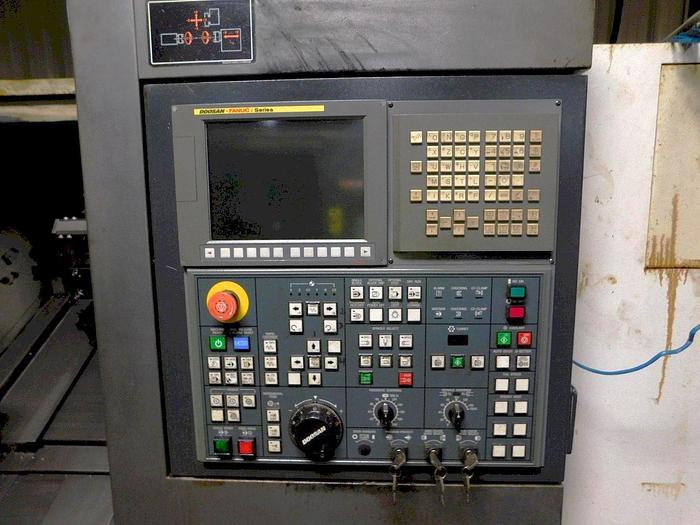

ControlFanuc i Series Control
Chuck Size8" Hydraulic / 6" Hydraulic
Maximum Swing30.7"
Maximum Machining Diameter15.98"
Maximum Machining Length20.47"
Maximum Bar Capacity2.6"
X-Axis Travel10.2"
Z-Axis Travel23.2"
Spindle Nose / Spindle BoreA2-6" / 3"
Spindle Speed4500 RPM
Spindle Motor25 HP
Subspindle Speed4,500 RPM
Subspindle Motor10 HP
Rotary Tool Speed / Rotary Motor5000 RPM / 7.5 HP

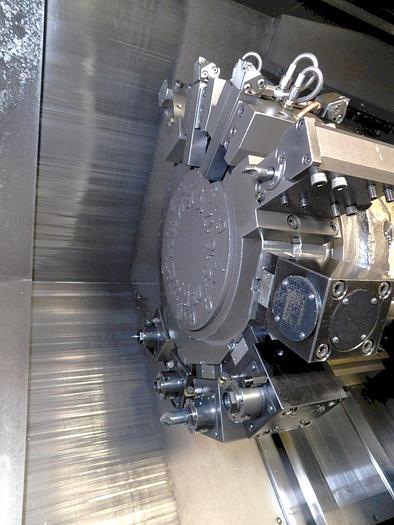

Number of Turret Positions12 Station Turret
Rapid Traverse Rates1181 IPM
Machine Dimensions135"x77"x85"
Machine Weight13,225 lbs.
