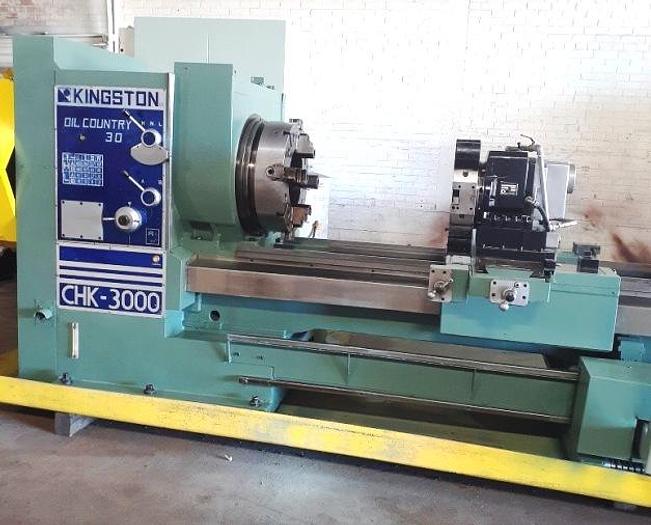

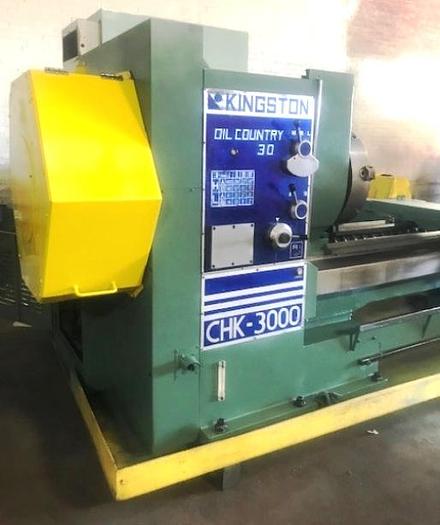

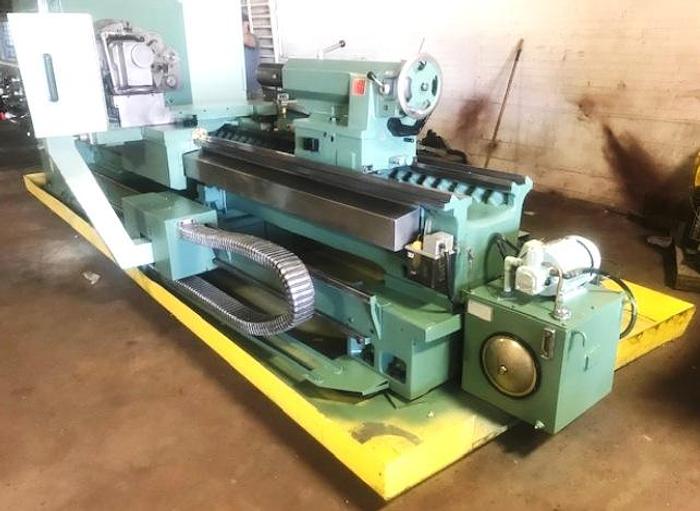

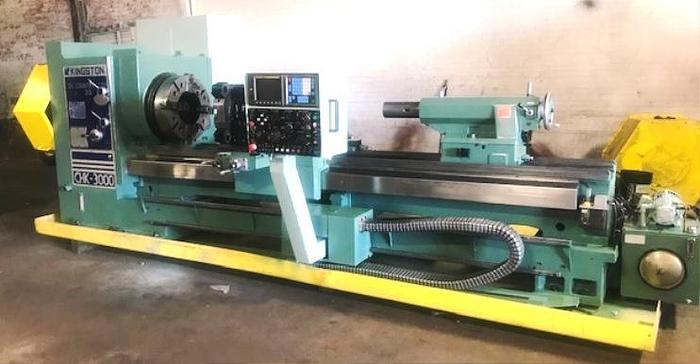

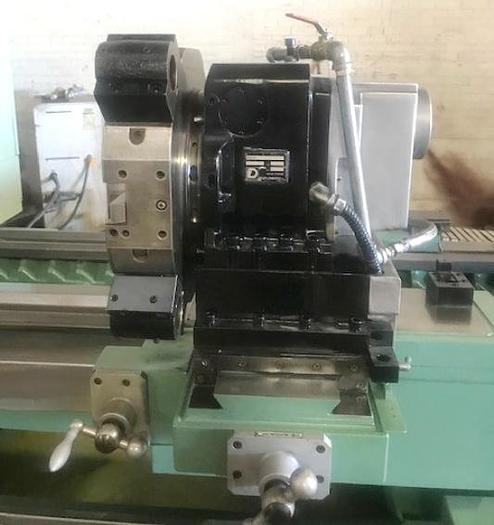

2002 Kingston CHK-3000 CNC Lathe w/ 12.5" Bore, (2) 24" Chucks, 8 Station Turret, Steady Rest, Tailstock, Auto Thread Re-Track
2002 Kingston CHK-3000 CNC Lathe w/ 12.5" Bore, (2) 24" Chucks, 8 Station Turret, Steady Rest, Tailstock, Auto Thread Re-Track
Contact us for price
Location:Texas
orCall (863) 439-6066
Description

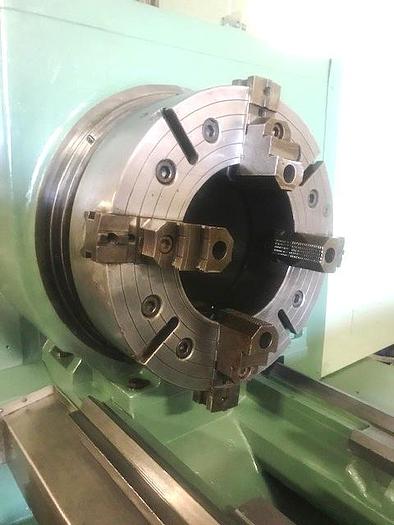

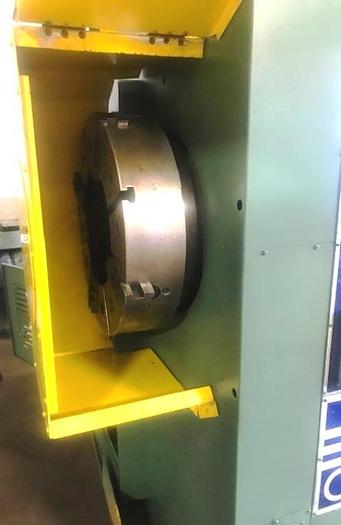

(2) 24" 4-Jaw Chucks
Taper Attachment
4-Way Rapid Traverse Hydraulic Braking System

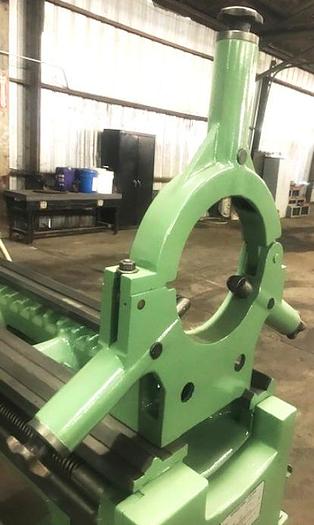

Steady Rest
Chip Conveyor
Auto Thread Re-Track

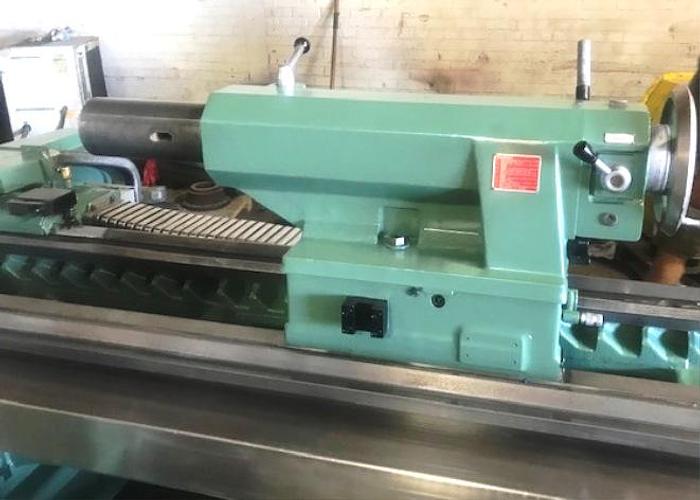

2-Speed Drive Tailstock Quill
Remote Jog Handle
Coolant System
All Available Manuals
Specifications
| Manufacturer | Kingston |
| Model | CHK-3000 w/ 12.5" Bore |
| Year | 2002 |
| Condition | Used |
| Stock Number | 119871 |

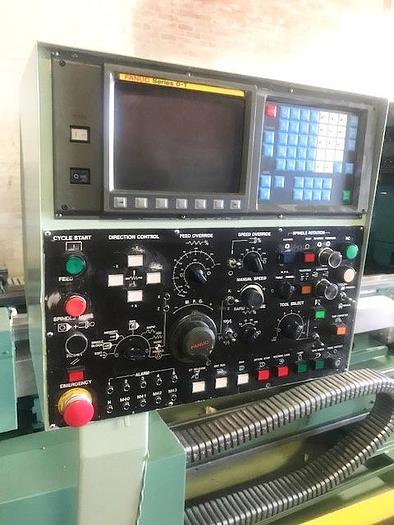

| Machine Control | Fanuc OT |
| Chuck Size | (2) 24" 4-Jaw Manual Chuck |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 20.5" |
| X-axis travel | 21.25" |
| Z-Axis Travel | 120" |
| Compound Travel | 9.45" |
| Bed Width | 22" |
| Spindle Nose / Bore / Bar Capacity | A2-20" / 12.5"/ 12.5" |
| Spindle Speeds | 5 - 300 RPM |
| Spindle Motor | 20 HP |

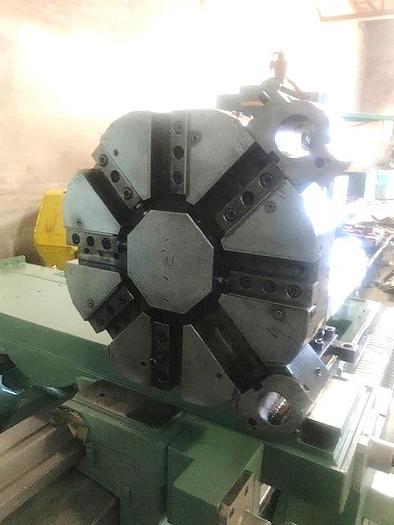

| Number of Turret Positions | 8 Position Turret |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.12" / 11.75" / #6 MT |
| Threading Inch | (5) 1-28 TPI |
| Threading Metric | (41) 1-28mm |
| Machine Dimensions LxWxH | 226"x74"x75" |
| Machine Weight | 18,000 lbs |
