2020 Haas UMC-1000SS

2020 Haas UMC-1000SS

Contact us for price

Location:Texas

orCall (863) 439-6066

Description

Trunnion Style 5th Axis Table

Coolant Through the Spindle

Renishaw Probing

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

Haas Visual Part Programming System

Chip Conveyor

Programmable Coolant Nozzle

Rigid Tapping

CNC Control Cabinet Cooler

Dynamic Work Offsets

Remote Jog Handle

RS 232 Port Interface

Coolant System with Tank & Pump

Auxiliary Coolant Filter

8 Extra M Codes

Air Vise Ready

150mm Haas Pneumatic Air Vice

Early Power Failure Detection Module

Ethernet Interface

USB Port Interface

RS 232 Port Interface

All Available Manuals






Show All

Specifications

ManufacturerHaas
ModelUMC-1000SS
Year2020
ConditionUsed
Stock Number119872
Table size24.8" Diameter
Table load capacity1000 lbs
X axis travel40"
Y axis travel25"
Z axis travel25"
B axis rotate of trunnion-35 Degrees to 120 Degrees
C axis table rotation.001 Degree Positioning
Spindle taperCAT #40
Spindle speed12,000 RPM
Spindle motor30 HP
Distance Spindle Nose to Table Top4" - 29"

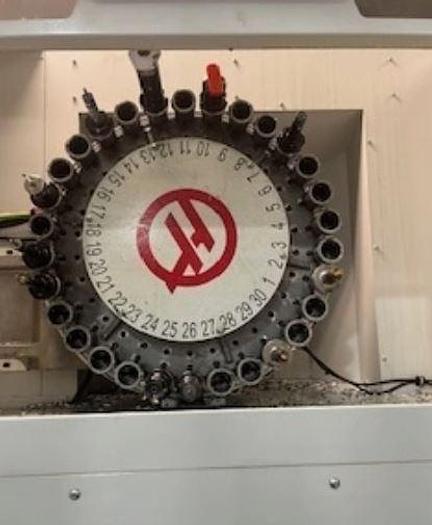

Tool magazine30 Position Toolchanger
Maximum Tool Diameter / Length / Weight5" / 12" / 12 lbs.
Rapid traverse rates900 IPM
Maximum feed rates650 IPM
Machine dimensions168" x 94" x 116"
Machine weight19,100 lbs
