2020 Haas UMC-500SS with Coolant Through the Spindle, High Speed Machining, 12,000 rpm, Probe Ready
2020 Haas UMC-500SS with Coolant Through the Spindle, High Speed Machining, 12,000 rpm, Probe Ready
$97,500 (USD)
Location:Washington
orCall (863) 439-6066
Description

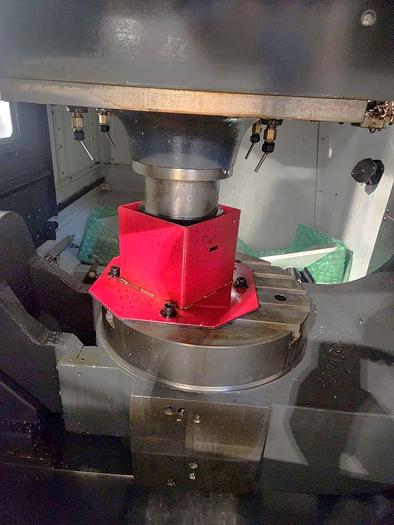

Trunnion Style 5th Axis Table
Coolant Through the Spindle
12,000 RPM Spindle
Prepped ONLY for Renishaw Probing (no probes included)
Chip Conveyor

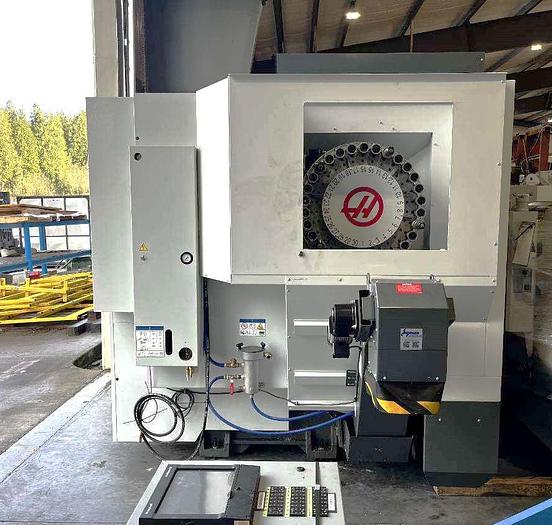

30 Station Side Mounted Tool Changer
Through Tool Air Blast
Dynamic Work Offset
Tool Center Point Control
Color Remote Jog Handle
User Definable Macros
Coordinate Rotation & Scaling
Haas Visual Programming System
Spindle Orientation
High Speed Machining

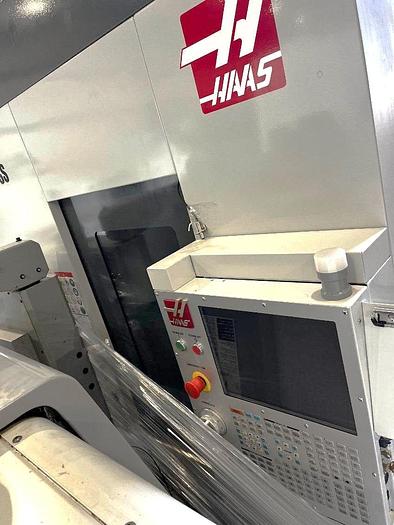

15" Color Monitor
VPS Editing
Media Display
1 GB Program Memory
Wireless Networking
Compensation Tables
Ethernet Interface
USB Port Interface
RS 232 Port Interface

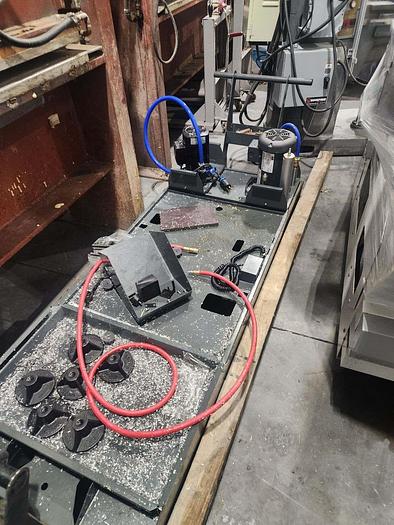

Coolant System with Tank & Pump
Specifications
| Manufacturer | Haas |
| Model | UMC-500SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119873 |
| Table size | 15.7" Diameter |
| Table load capacity | 500 lbs |
| X axis travel | 24" |
| Y axis travel | 16" |
| Z axis travel | 16" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 120" x 98" x 110" |
| Machine weight | 13,500 lbs |
