2012 Haas VF-3SS
2012 Haas VF-3SS
Contact us for price
Location:Kentucky
orCall (863) 439-6066
Description

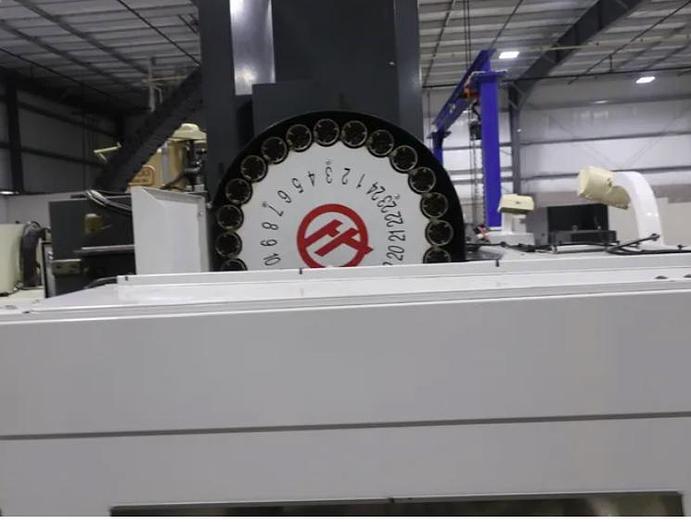

24+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Remote Jog Handle
Rigid Tapping
Legacy Options
55 Gallon Coolant Tank
High-Intensity Lighting

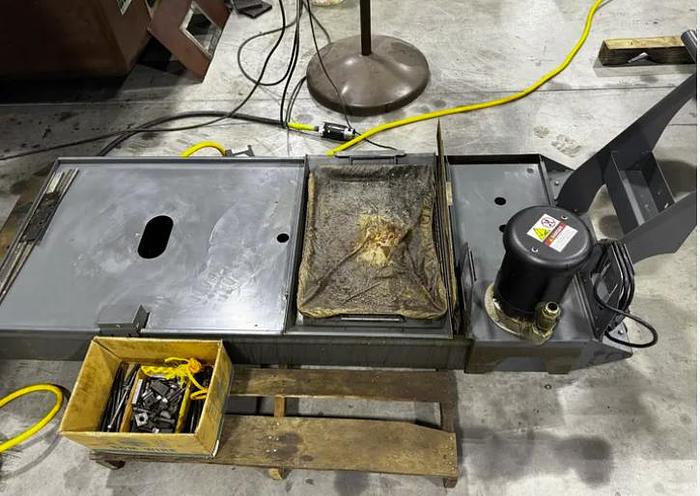

Coolant Tank with Pump

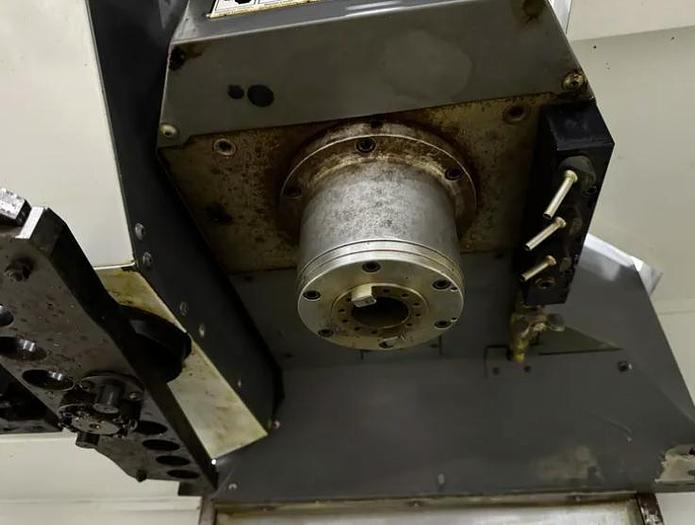

Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Miscellaneous Tooling
Specifications
| Manufacturer | Haas |
| Model | VF-3SS |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119886 |

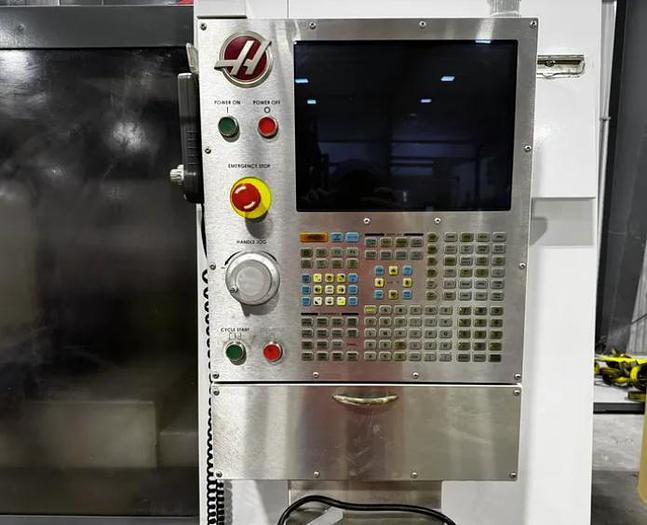

| Machine Control | Haas CNC Control |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
