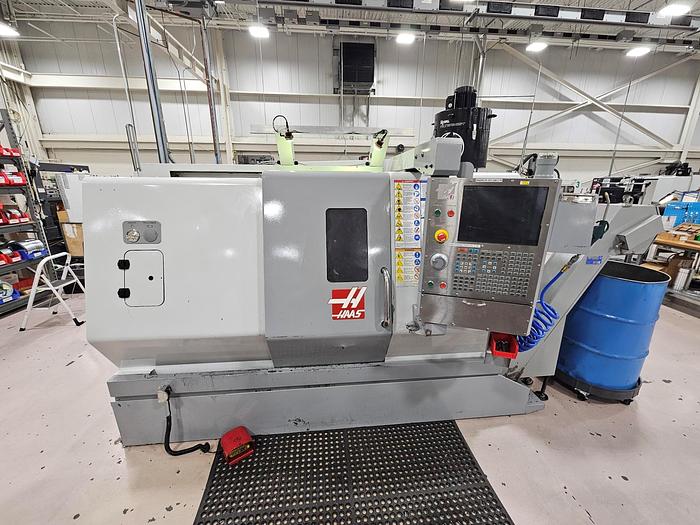

2007 Haas SL-20 Chucker with C Axis, Milling/Drilling Capability, Chip Conveyor, Tool Presetter, 8" Chuck
2007 Haas SL-20 Chucker with C Axis, Milling/Drilling Capability, Chip Conveyor, Tool Presetter, 8" Chuck
Contact us for price
Location:New Jersey
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation - works but drive belts are slipping
Live Milling Capability - not currently functional
Chip Conveyor - Belt Type
Tool Presetter
8" 3 Jaw Hydraulic Chuck
High Intensity Lighting
Royal Filtermist Mist Collector System
Rigid Tapping
Spindle Orientation
Coolant System with Tank & Pump
USB Port Interface
3.5" Floppy Drive Interface
RS232 Port Interface
Miscellaneous Static Tool Blocks
No Live Holders are included
Wired 208/230V Electrics
**Client Did Not Use The Live Tooling On The Machine, And Therefore Has No Live Holders**

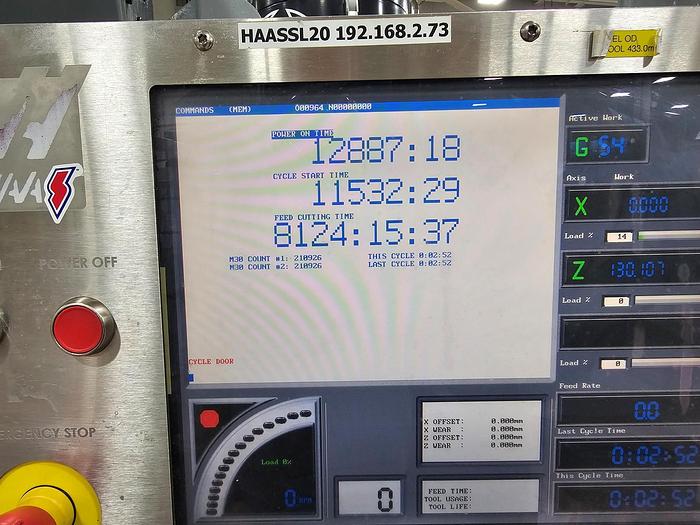

**Power On Hours 12,887**
**Cycle Start Hours 11,532**
**Feed Cutting Hours 8,124**
Specifications
| Manufacturer | Haas |
| Model | SL-20 Chucker |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119893 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 11.75" |
| Distance Between Centers | 20" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | Full C Axis |
| Spindle Speeds | 0 - 4,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.5" |
| Spindle Motor | 20 HP |
| Spindle Torque | 120 ft/lbs |
| Live Milling Speed | 4,000 RPM |
| Number of Turret Positions | 12 Station Turret - Hybrid Type Turret |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
