2017 Doosan HC400-II
2017 Doosan HC400-II
$107,500 (USD)
Location:Florida
orCall (863) 439-6066
Description

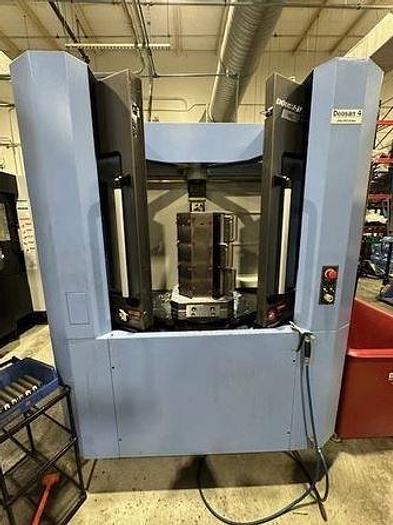

2 Pallet Changer System
Full 4th Axis Rotary Table
Coolant Through the Spindle

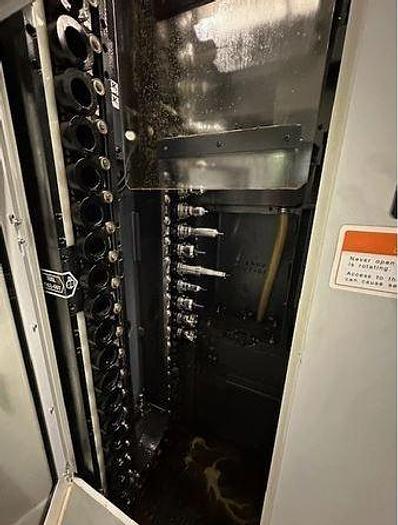

60 Station Tool Changer

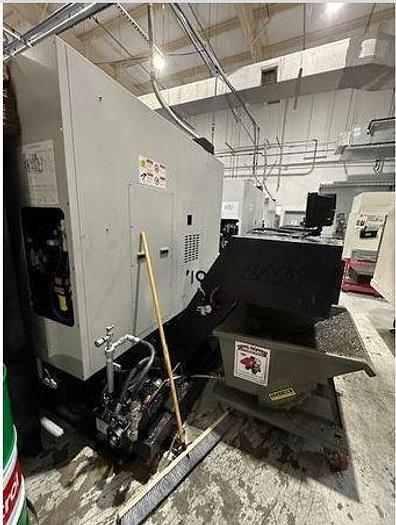

Chip Conveyor
Programmable Coolant
Rigid Tapping
Spindle Orientation
Work Light
Card Interface
RS232 Port Interface

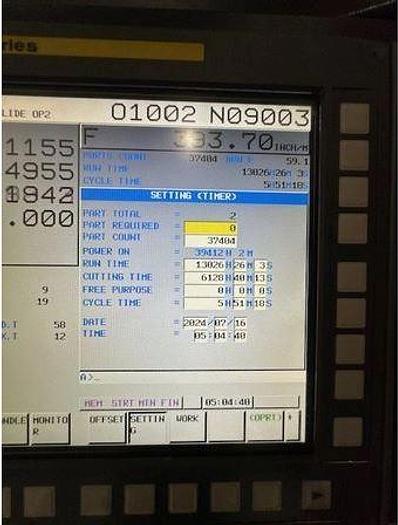

**Machine has 6,128 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | HC400-II |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119897 |
| Machine Control | Fanuc i Series Control |
| Pallet Size / Number of Pallets | 15.7" x 15.7" / 2 Pallets |
| Maximum Table Load | 882 lbs. |
| Pallet Indexing | .001 Degree Full 4th Axis |
| Maximum Workpiece Size D x H | 23.6" x 31.5" |
| X-Axis Travel | 23.6" |
| Y-Axis Travel | 22" |
| Z-Axis Travel | 22.2" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP - Direct Drive |
| Number of Tool Positions | 60 Station Tool Changer |
| Rapid Traverse Rates | 1575 IPM |
| Cutting Feedrates | 1575 IPM |
| Machine Dimensions | 194" x 90.6" x 105.9" |
| Machine Weight | 26,800 lbs. |
