2022 Haas UMC-1000SS
2022 Haas UMC-1000SS
Contact us for price
Location:Arizona
Description
Trunnion Style 5th Axis Table
Prepped for Coolant Through the Spindle
Auxiliary Coolant Filter System
Variable Flow Coolant Pump
Haas Wireless Probing Package with Haas HTS400 Tool Setter Probe
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Enclosure Exhaust System
Chip Conveyor
Programmable Coolant Nozzle
50 Station Tool Changer
Rigid Tapping
Chip Tray Filter Kit
CNC Control Cabinet Cooler
Dynamic Work Offsets
Large Screen Remote Jog Handle
High Speed Machining
Coolant System with Tank & Pump & 95 Gallon Coolant Tank
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface
15" Color LCD Monitor w/ Touch Screen Control
Haas Connect
WiFi for Haas Machines
Tool Center Point Control
1 GB Programming Memory
All Available Manuals

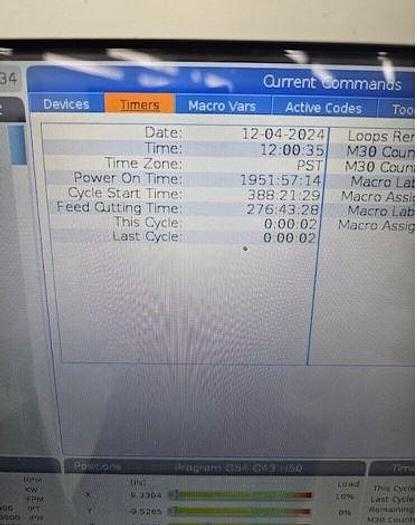

**Less than 300 run time hours**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000SS |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119907 |
| Table size | 24.8" Diameter |
| Table load capacity | 1,000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | #40 Taper |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 19,100 lbs |
