2013 Mazak Quick Turn Smart 250 w/ Chip Conveyor, 10" Hyd Chuck, Tailstock, Tool Eye
2013 Mazak Quick Turn Smart 250 w/ Chip Conveyor, 10" Hyd Chuck, Tailstock, Tool Eye
$47,500 (USD)
Location:Texas
orCall (863) 439-6066
Description

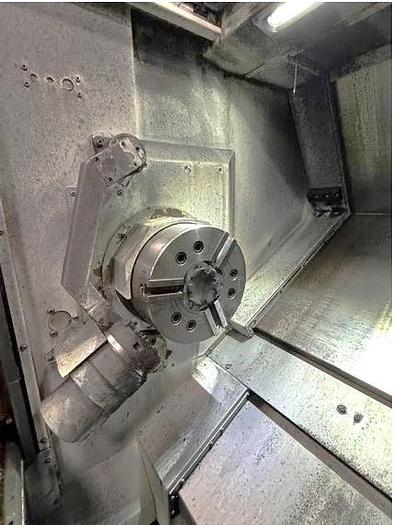

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
USB Port Interface
PCMCIA Card Interface
Pitch Error Compensation
Spiral Interpolation
Card Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals

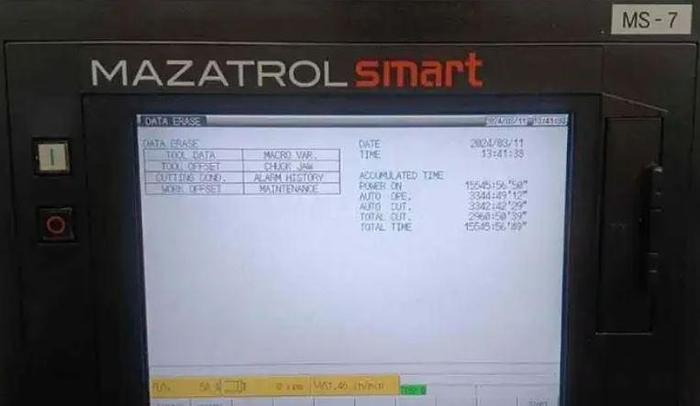

**Power On Hours 15,545**
**Auto Operation Hours 3344**
**Auto Cut Hours 3342**
**Total Cut Hours 2960**
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn Smart 250 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119909 |

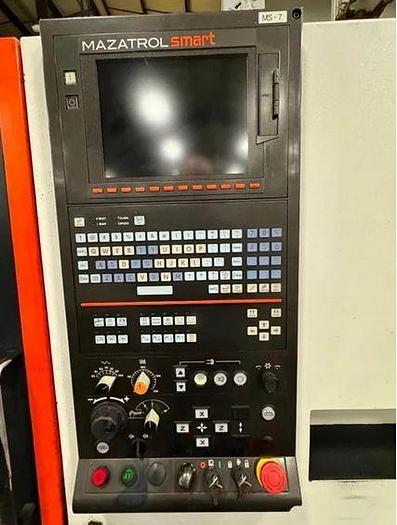

| Machine Control | Mazatrol Smart Control |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 26" |
| Maximum Cutting Diameter | 16" |
| Maximum Cutting Length | 19.868" |
| X-Axis Travel | 8.26" |
| Z-Axis Travel | 22" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Center | 20.65" / MT #4 |
| Tailstock Quill Travel / Quill Diameter | 3.7" / 3.7" |
| Machine Dimensions LxWxH | 120"x87"x90" |
| Machine Weight | 10,125 lbs |
