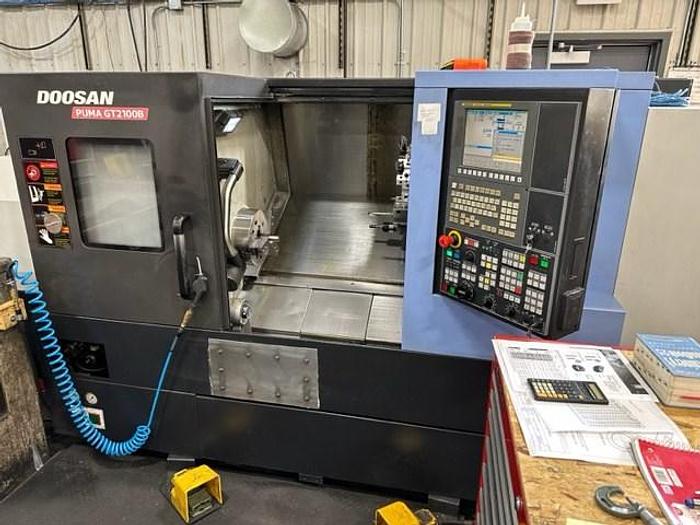

2015 Doosan Puma GT-2100B Big Bore w/ 3.2" Bar Capacity, Chip Conveyor, Parts Catcher, Tailstock, Tool Presetter, 10" Chuck
2015 Doosan Puma GT-2100B Big Bore w/ 3.2" Bar Capacity, Chip Conveyor, Parts Catcher, Tailstock, Tool Presetter, 10" Chuck
$59,000 (USD)
Location:Illinois
orCall (863) 439-6066
Description

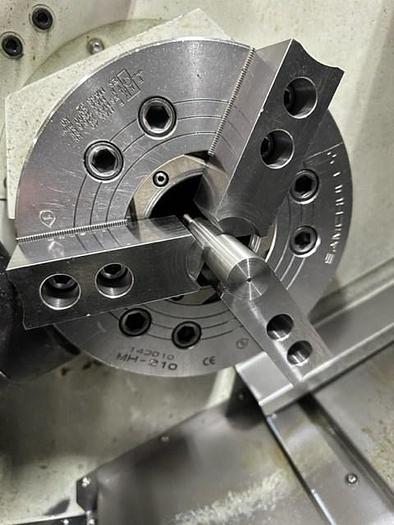

10" 3 Jaw Hydraulic Chuck
3.2" Bar Capacity Big Bore Spindle Option
Programmable Tailstock with MT #4 Live Center Chip Conveyor

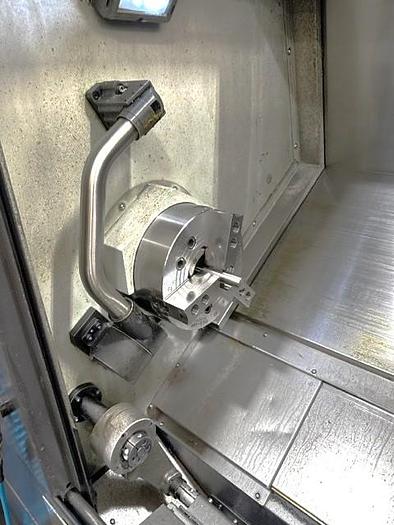

Automatic Parts Catcher
Tool Presetter
High Pressure Coolant INTERFACE ONLY (CoolJet unit is not included)
64 Pairs Tool Offsets
Barfeed Interface ONLY
Macro Executer
Doosan Tool Load Monitoring System
Coolant System with Tank and Pump
Ethernet Connection
USB Port Interface RS 232 Port Interface
Boxed Way Design
All Available Tooling All Available Manuals

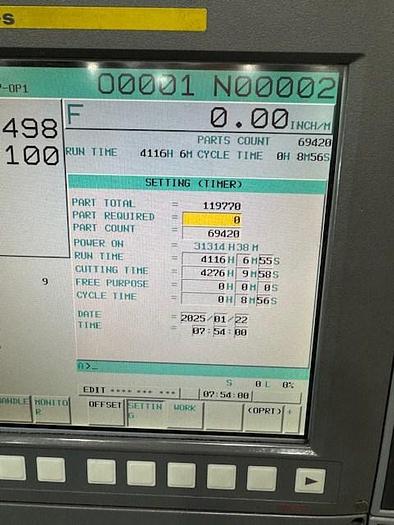

**Run Time Hours 4,116**
**Cutting Hours 4,276**
Specifications
| Manufacturer | Doosan |
| Model | Puma GT-2100B |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119911 |

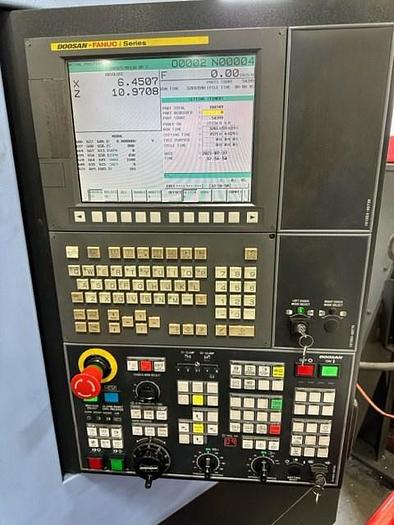

| Control | Fanuc 0i-TC CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 23.6" |
| Maximum Turning Diameter | 15.4" |
| Maximum Turning Length | 21.7" |
| Distance Between Centers | 23" |
| Maximum Bar Capacity | 3.12" |
| X-Axis Travel | 9.1" |
| Z-Axis Travel | 22.8" |
| Spindle Nose / Spindle Bore | A2-8" / 3.6" |
| Spindle Speeds | 3,500 RPM |
| Spindle Motor | 25 HP |

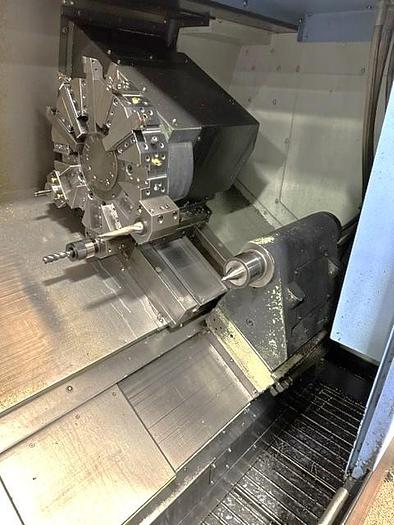

| Turret Type | 12 Station Turret |
| Rapid Traverse Rates X / Z | 945 IPM / 1181 IPM |
| Tailstock Quill Diameter / Center | 3.1" / MT #4 |
| Tailstock Quill Travel | 3.1" |
| Machine Dimensions LxWxH | 129" x 65" x 70" approximate |
| Machine Weight | 8,377 lbs. |
