2023 Doosan Puma 3100L with SMW Steady Rest, Chip Conveyor, Tailstock, Tool Presetter, 4" Bar Capacity, 50" Centers
2023 Doosan Puma 3100L with SMW Steady Rest, Chip Conveyor, Tailstock, Tool Presetter, 4" Bar Capacity, 50" Centers
$134,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
12" 3 Jaw Hydraulic Chuck
50" Long Bed Option

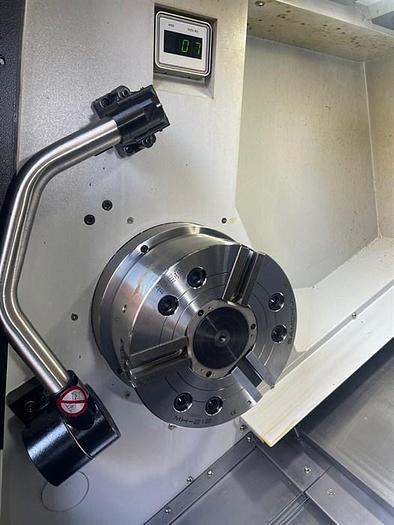

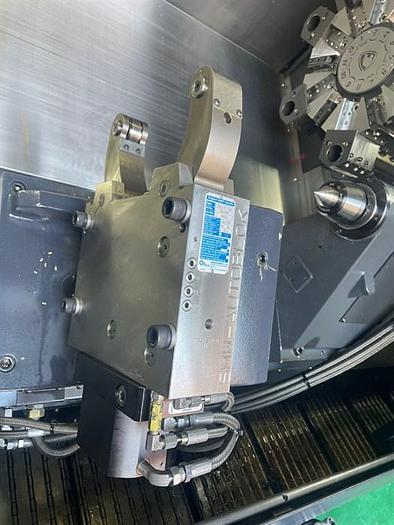

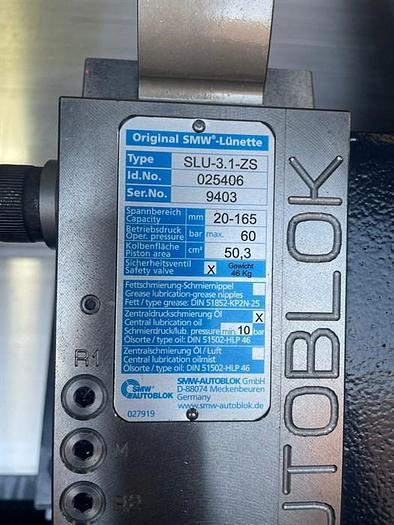

SMW Model SLU 3.1-ZS Hydraulic Steady Rest with 20mm - 165mm Capacity Programmable Tailstock with Live Center Chip Conveyor
Tool Presetter
Chip Bucket
Tool Load Monitoring
128 Pairs of Tool Offsets
Chuck Clamp Confirmation Coolant System with Tank and Pump RS 232 Port Interface
USB Port Interface
Boxed Way Design
All Available Tooling All Available Manuals
**ONLY 285 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 3100L |
| Year | 2023 |
| Condition | Used |
| Stock Number | 119912 |

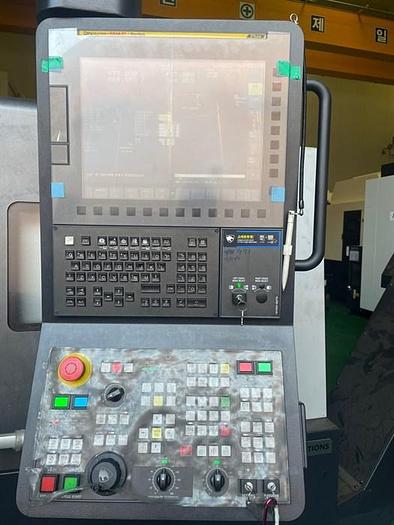

| Control | Fanuc i Series Control |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing over Bed | 28.3" |
| Maximum Turning Diameter | 18.9" |
| Maximum Turning Length | 50.2" |
| Maximum Bar Capacity | 4.0" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 53.1" |
| Spindle Nose / Spindle Bore | A2-11" / 4.4" |
| Spindle Speeds | 2,800 RPM |
| Spindle Motor | 45 HP |

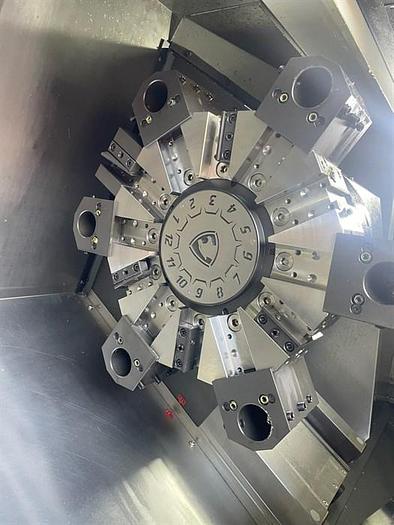

| Turret Type | 12 Station Turret |
| Rapid Traverse Rates X / Z | 945 IPM / 1181 IPM |

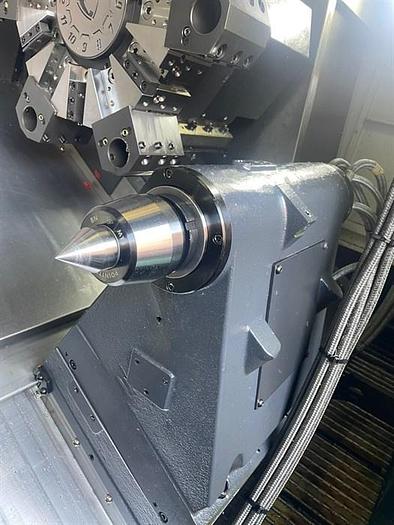

| Tailstock Body Travel | 45.3" |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.9" / 3.9" / MT #5 |
| Machine Dimensions | Not Available |
| Machine Weight | 15,212 lbs. |
