2007 Haas EC-1600-4X with Built in Rotary Table, Haas Probing, Coolant Thru Spindle
2007 Haas EC-1600-4X with Built in Rotary Table, Haas Probing, Coolant Thru Spindle
Contact us for price
Location:Georgia
or
Call (863) 439-6066
Description

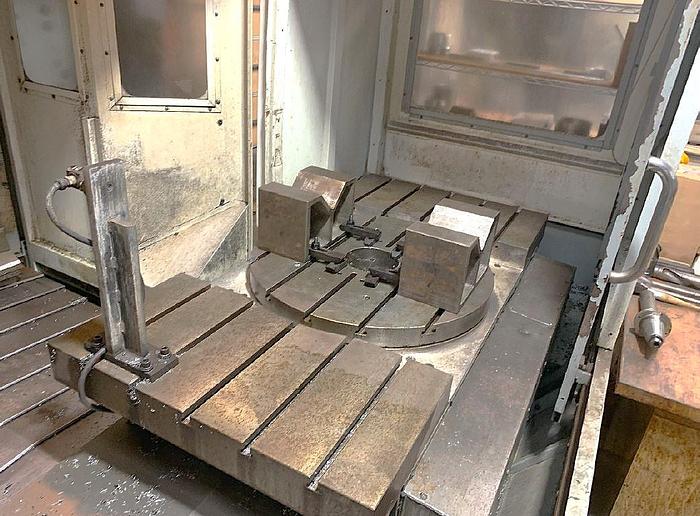

Built In 4th Axis Rotary Table
Haas VQC Probing System with Tool Presetter Probe
Coolant Thru the Spindle - 300 PSIU
Auxiliary Coolant Filter System
Rigid Tapping
Programmable Coolant Nozzle
Spindle Orientation
Visual Quick Code Programming System
Coordinate Rotation & Scaling
Complete Coolant System with Tank & Pump
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | EC-1600-4X |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119919 |
| Table Size | 64" x 36" |
| Maximum Table Load | 10,000 lbs |
| X-axis travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 30 HP - 2 Speed Geared Head |
| Tool Magazine Capacity | 30 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Rapid Traverse Rates | 540 IPM |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 30,000 lbs |
