2020 Haas VF2 with 10,000 RPM, 4th Axis Drive/Wiring, TSC READY, HS Machining, PCool, Auger, Optional 4th Axis Rotary

2020 Haas VF2 with 10,000 RPM, 4th Axis Drive/Wiring, TSC READY, HS Machining, PCool, Auger, Optional 4th Axis Rotary
$42,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

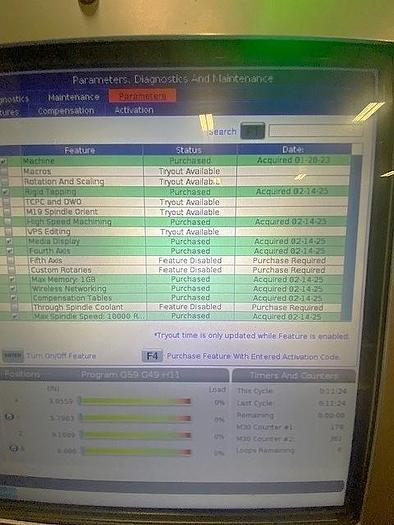

4th Axis Drive & Wiring
10,000 RPM Spindle Upgrade
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Prepped ONLY for Coolant Through the Spindle
High Speed Machining
Compensation Tables
Internal High Voltage Transformer
1 GB Programmable Memory
Rigid Tapping
Media Display
Wireless Networking
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump

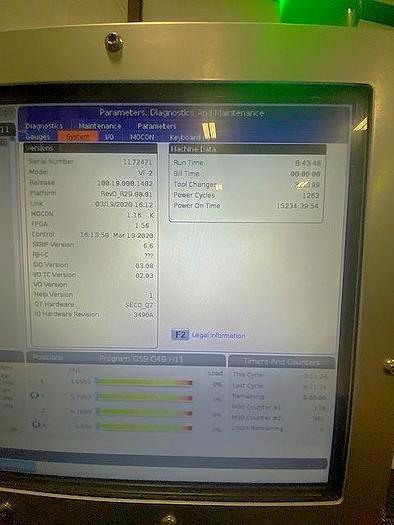

**Power On Hours 15,234**
**Estimated Spindle Hours 5,000**
**Vices on table are NOT included with machine sale**

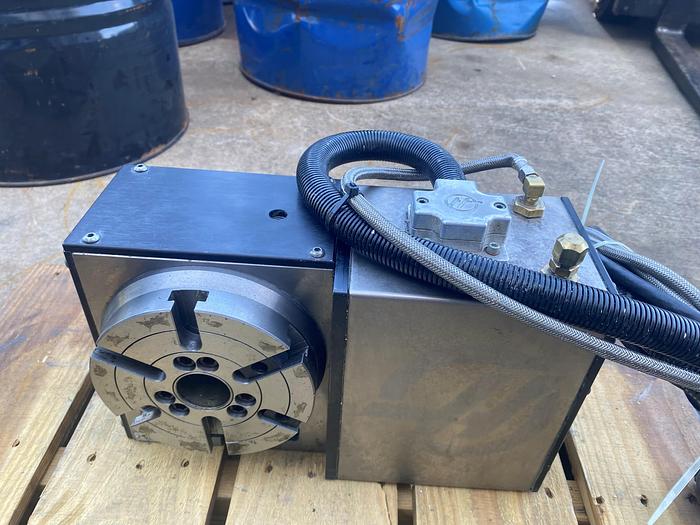

**Haas HRT-160 4th Axis Rotary Table with Chuck and Tailstock Available for Additional $5000**
**Price today as equipped at $83,560 or with HRT-160 rotary table included at $96,055**
**In plant under power**
**2020 Haas VF4 also available for sale in same shop**
Specifications
Manufacturer | Haas |
Model | VF2 |
Year | 2020 |
Condition | Used |
Stock Number | 119935 |
Table Size | 36" x 18" |
Maximum Table Load | 3,000 lbs |
X-axis travel | 30" |
Y-Axis Travel | 16" |
Z-Axis Travel | 20" |
Distance Spindle Nose to Table Top | 4" - 24" |
Spindle Taper | CAT 40 |
Spindle Speed | 10,000 RPM |
Spindle Motor | 30 HP |
Tool Magazine Capacity | 20 Station Umbrella Style ATC |
Rapid Traverse Rates | 1,000 ipm |
Machine Dimensions LxWxH | 95"x95"x100" |
Machine Weight | 9,000 lbs |
