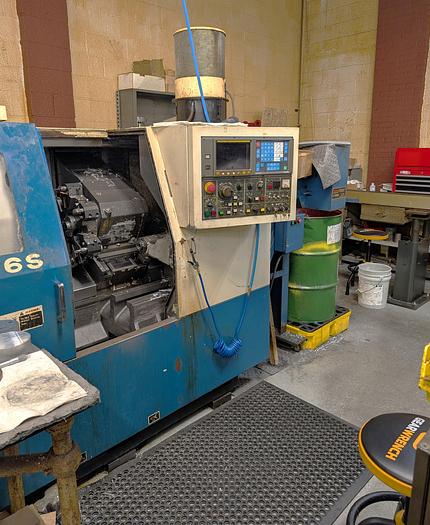

1996 Daewoo Puma 6S with Tailstock, Chip Conveyor, Tool Presetter, Fanuc OT Control
1996 Daewoo Puma 6S with Tailstock, Chip Conveyor, Tool Presetter, Fanuc OT Control
$6,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
6.5" 3 Jaw Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor
Mist Collector
Coolant System with Tank and Pump
Boxed Way Design
Foot Pedal for Chuck Open/Close
RS-232 Interface
All Available Manuals
All Available Tool Holders
Wired 220V Electrics
Specifications
| Manufacturer | Daewoo |
| Model | 6S |
| Year | 1996 |
| Condition | Used |
| Stock Number | 119954 |
| Machine Control | Fanuc 0T Control |
| Chuck Size | 6.5" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 19.7" |
| Maximum Turning Diameter | 14.2" |
| Maximum Turning Length | 14.6" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 15" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 1.8" / 1.5" |
| Spindle Speeds | 60 - 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Taper / Quill Stroke | #3MT / 3.9" |
| Floor Space Requirement | 91" x 59" x 64" |
| Machine Weight | 8,140 lbs |
