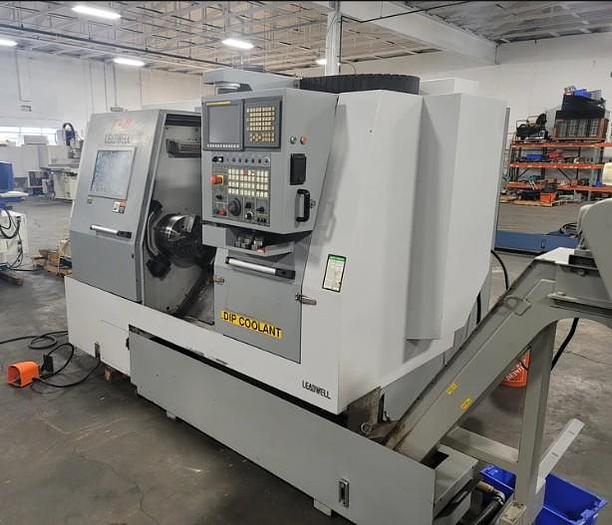

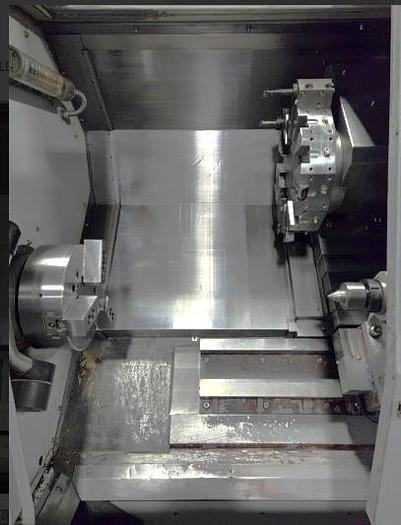

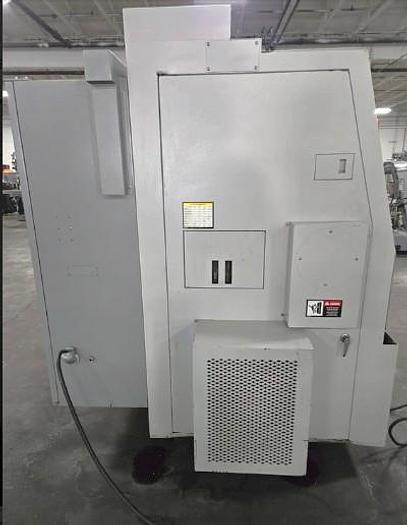

2007 Leadwell T-8 with 12" Chuck, 3" Bar Capacity, Chip Conveyor, Tool Presetter, Tailstock
2007 Leadwell T-8 with 12" Chuck, 3" Bar Capacity, Chip Conveyor, Tool Presetter, Tailstock
$29,950 (USD)
Location:Kentucky
or
Call (863) 439-6066
Description

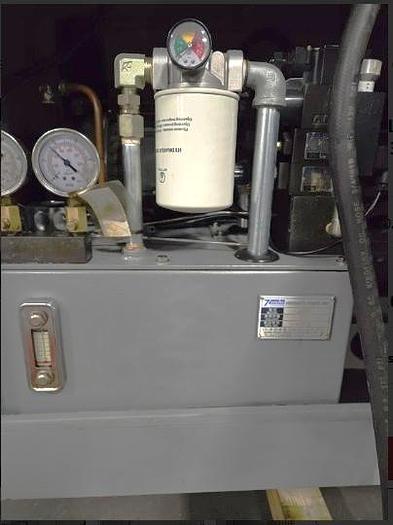

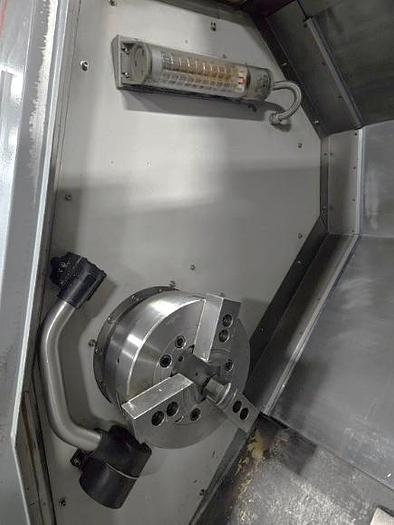

12" 3 Jaw Hydraulic Chuck Programmable Tailstock

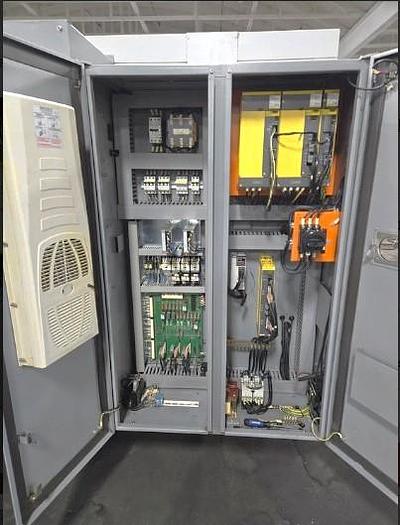

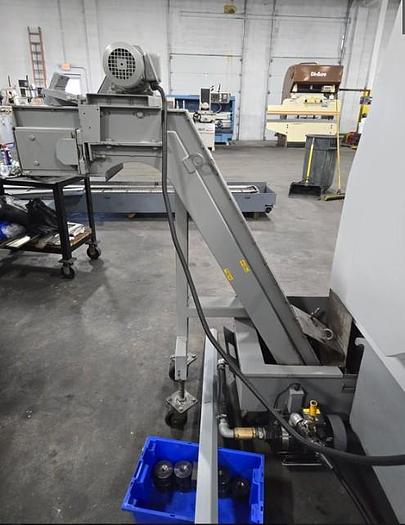

Tool Presetter Chip Conveyor Coolant System with Tank & Pump RS 232 Port Interface Wired 220V Electrics All Available Tooling All Available Manuals
**New in October 2007**

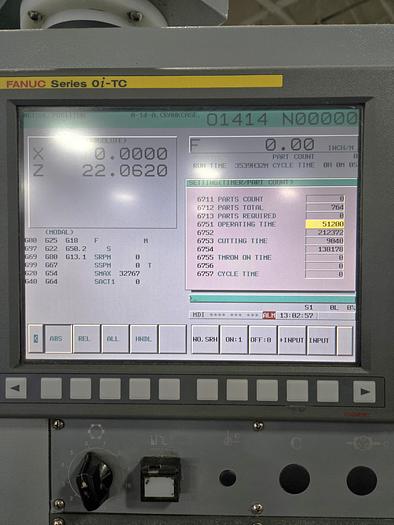

**Operating Hours 4,392** (two rows of listed in pictures combined then divided by 60 due to being displayed in minutes)
**Cutting Hours 2,453** (two rows of listed in pictures combined then divided by 60 due to being displayed in minutes)
Specifications
| Manufacturer | Leadwell |
| Model | T-8 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119955 |

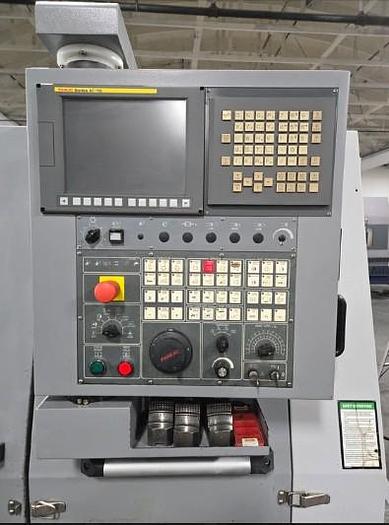

| Control | Fanuc 0i-TC |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing over Bed | 26.3" |
| Maximum Turning Diameter | 17.7" |
| Maximum Turning Length | 29.9" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 8.8" |
| Z-Axis Travel | 31.1" |
| Spindle Nose / Spindle Bore | A2-8" / 3.53" |
| Spindle Speeds | 3,500 RPM |
| Spindle Motor | 25 HP |

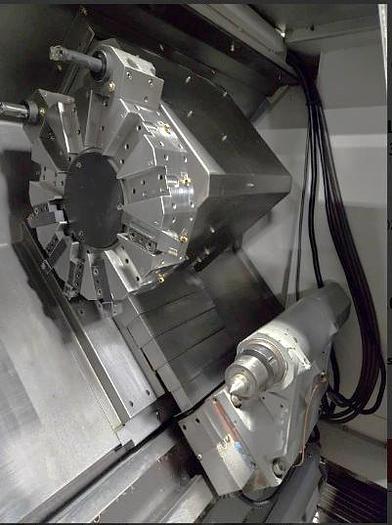

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 788 IPM / 945 IPM |
| Machine Dimensions | 132" x 96" x 84" |
| Machine Weight | 11,000 lbs. |
