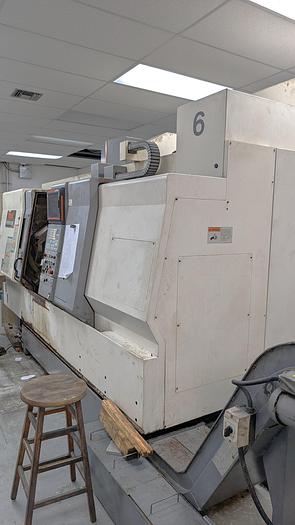

2003 Mazak Integrex 200-IIIT with Lower Turret, Tailstock, B Axis Pendulum Turret
2003 Mazak Integrex 200-IIIT with Lower Turret, Tailstock, B Axis Pendulum Turret
$24,500 (USD)
Location:Florida
Description

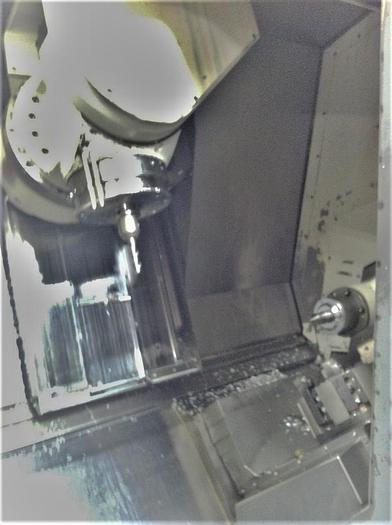

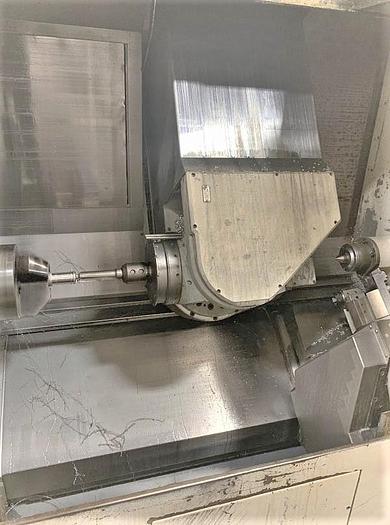

B Axis Pendulum Head - 225 Degree
Y Axis Capability
Programmable Tailstock
Full C Axis on Both Spindles - .0001 Indexing

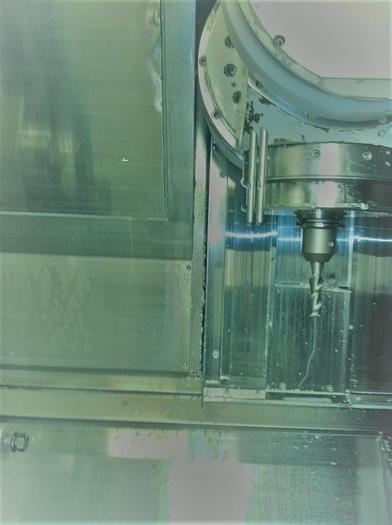

Live Milling on Upper Turret

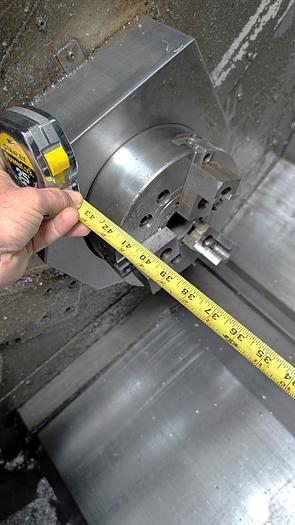

8" 3 Jaw Hydraulic Chuck on Main Spindle
Chip Conveyor
40 Position Tool Changer

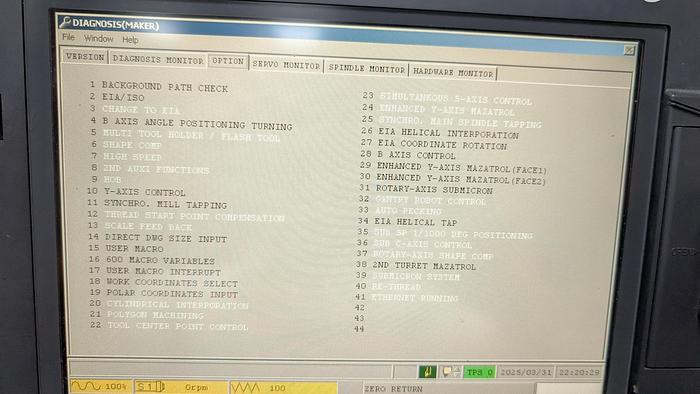

EIA/ISO Input Function
EIA Helical Interpolation
EIA Coordinate Rotation
EIA Helical Tapping
Direct DWG Size Input
User Macro
600 Macro Variables
User Macro Interupt
Work Coordinates Select
Polar Coordinates Input
Milling Spindle Synchronous Tapping
Rotary Axis Submicron
2nd Turret Mazatrol
Enhanced Y Axis Mazatrol Face 1 & Face 2
PCMCIA Interface - 2 Slots
IC Memory Card Interface
3.5" Floppy Disk Drive
RS-232C Port for DNC Interface
15" Color LCD Screen
Main & Subspindle Synchronization
Multi Tap Transformer
Currently Wired 400V Electrics
**Manufactured New in May of 2003**

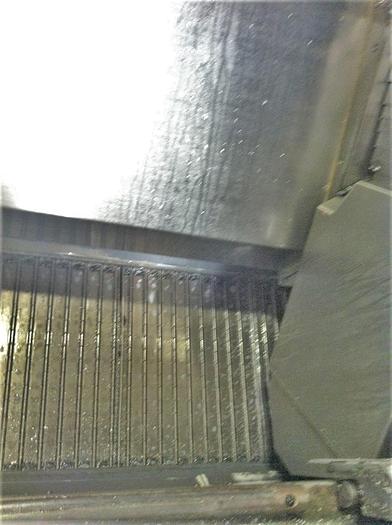

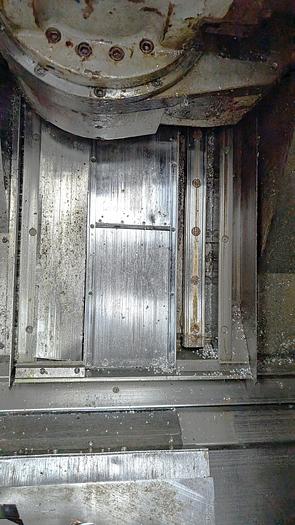

**Needs X Axis Way Covers Repaired**
Specifications
| Manufacturer | Mazak |
| Model | Integrex 200-IIIT |
| Year | 2003 |
| Condition | Used |
| Stock Number | 119958 |

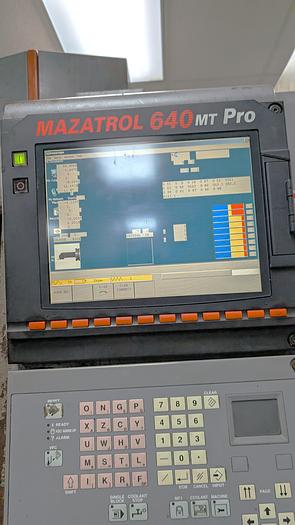

| Machine Control | Mazatrol Fusion 640MT Pro |
| Chuck Size | 8" 3 Jaw Hydraulic |
| Maximum Swing | 26" |
| Maximum Turning Diameter | 26" for chucking |
| Distance Between Centers | 40" |
| X-Axis Travel | 22.83" |
| Y-Axis Travel | +/- 3.15" |
| Z-Axis Travel | 41.14" |
| C-Axis Rotation | .0001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.99" / 2" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 30 HP |
| Milling Spindle Speed | 12,000 RPM |
| Milling Spindle Motor | 25 HP |
| Tool Magazine Capacity | 40 Station Tool Changer |

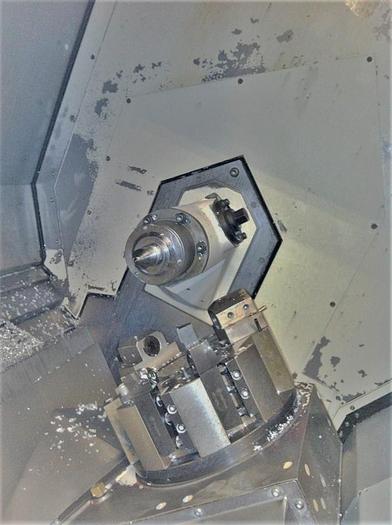

| Number of Lower Turret Positions | 9 Station Turret |
| Rapid Traverse Rates (X, Y, Z) | 1496 IPM, 1024 IPM, 1496 IPM |
| Machine Dimensions LxWxH | 151" x 93" x 103" |
| Machine Weight | 21,780 lbs |
