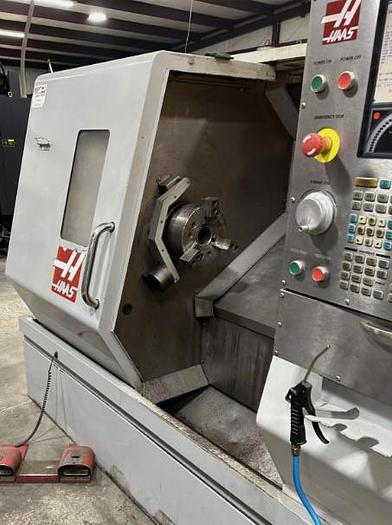

2008 Haas SL-30T

2008 Haas SL-30T

Contact us for price

Location:California

or
Call (863) 439-6066

Description

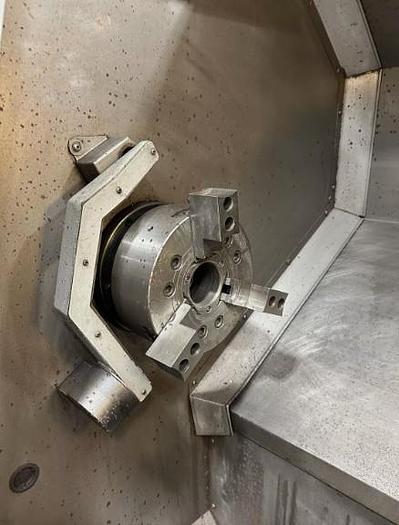

10" 3 Jaw Hydraulic Chuck

Chip Auger

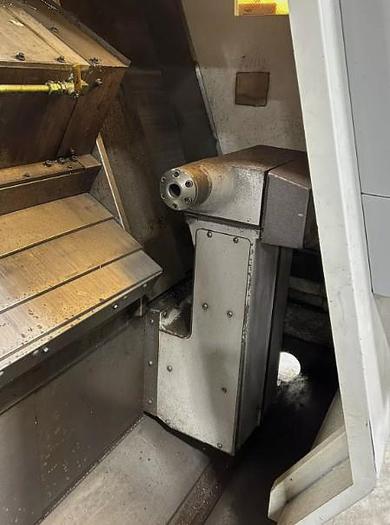

Programmable Tailstock

Tool Presetter

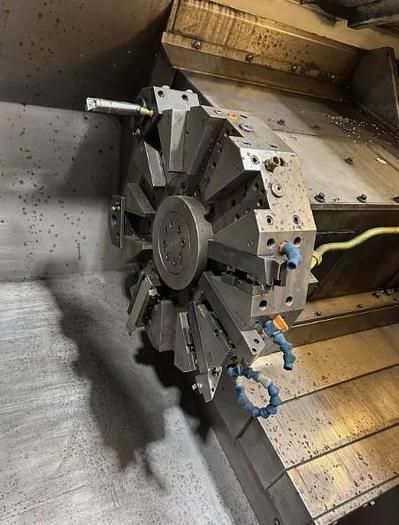

Block Style Turret

Rigid Tapping

Chuck & Tailstock Foot Pedals

208/230V 3 phase Electrics

All Available Manuals




Show All

Specifications

ManufacturerHaas
ModelSL-30T
Year2008
ConditionUsed
Stock Number119962

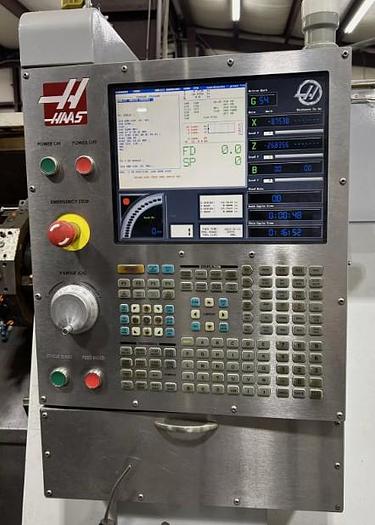

Machine ControlHaas 32 BIT
Chuck Size10" 3-Jaw Hydraulic
Maximum Swing30"
Maximum Swing Over Cross Slide14.5"
Maximum Cutting Diameter14.5"
Maximum Turning Length34"
Maximum Bar Capacity2.5"
Distance Between Centers39"
X-Axis Travel11.3"
Z-Axis Travel34"
Spindle Nose / Spindle BoreA2-6" / 3.00"
Spindle Speeds20 - 3,400 RPM
Spindle Motor30 HP
Number of Turret Positions12 Station Turret
Rapid Traverse Rates710 IPM
Tailstock Body Travel / Taper33.5" / MT #4
Machine Dimensions LxWxH129" x 66" x 74"
Machine Weight14,000 lbs
