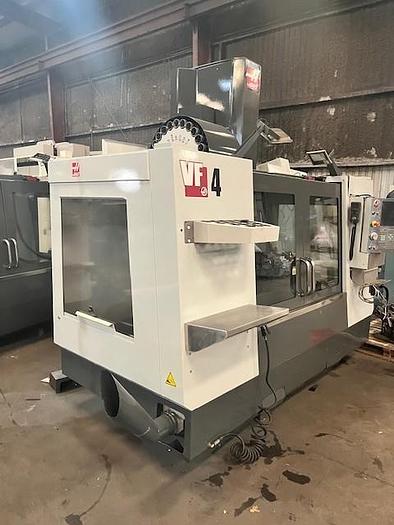

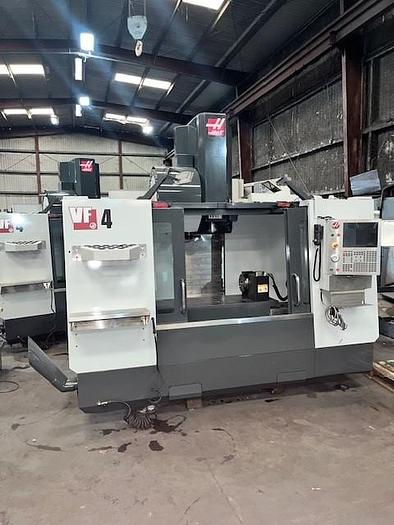

2014 Haas VF4 with Haas HRT210 4th Axis Rotary Table, 24 Station SMATC, PCool, Chip Auger
2014 Haas VF4 with Haas HRT210 4th Axis Rotary Table, 24 Station SMATC, PCool, Chip Auger
$64,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

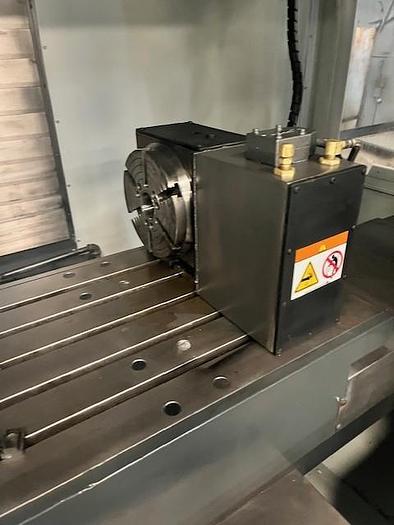

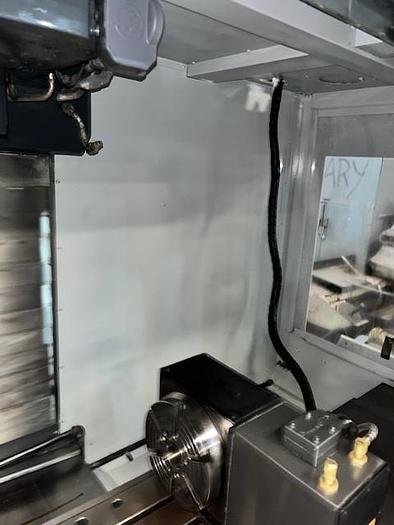

Haas HRT-210 4th Axis Rotary Table
4th Axis Drive & Wiring
24 Station Side Mounted Tool Changer
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Coolant Through Spindle Ready
User Definable Macros

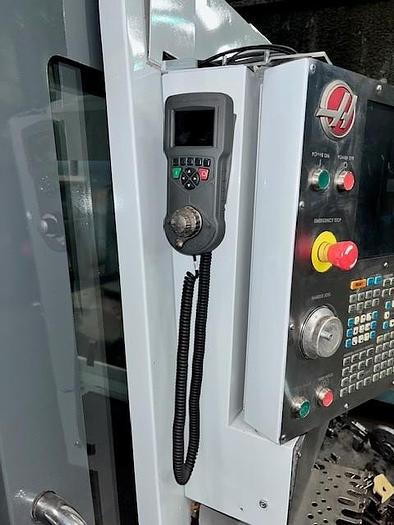

Remote Jog Handle
High Intensity Lighting
Rigid Tapping

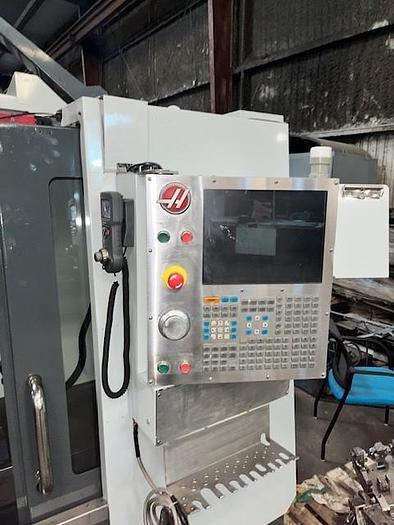

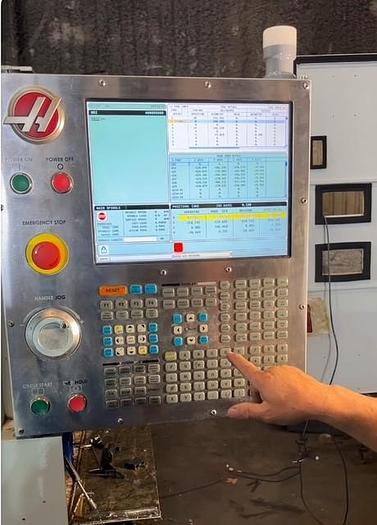

USB Port Interface RS-232C Port Interface 15" LCD Color Monitor
Coolant System with 55 Gallon Coolant Tank & Pump
**Price New Today with Current Haas Discounting at just under $118,000**
Specifications
| Manufacturer | Haas |
| Model | VF4 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119963 |
| Control | Haas CNC Control |
| Table size | 52" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 0 - 8,100 RPM |
| Spindle Motor 30 Minutes/Continuous | 30 HP / 20 HP |
| Spindle Nose to Table Top | 4" - 29" |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1000 IPM |
| Cutting Feedrates | 650 IPM |
| Machine Dimensions | 152" x 102" x 109" |
| Machine Weight | 13,500 lbs. |
