2022 Okuma Genos M560-V with 4th Axis Rotary Table, Coolant Through Spindle, Probe, Chip Conveyor
2022 Okuma Genos M560-V with 4th Axis Rotary Table, Coolant Through Spindle, Probe, Chip Conveyor
$139,500 (USD)
Location:Nevada
or
Call (863) 439-6066
Description

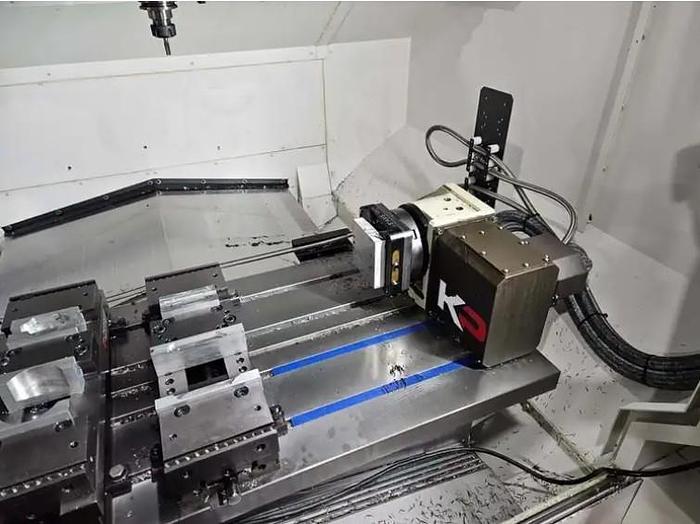

4th Axis Rotary Table
4th Axis Drive & Wiring
Probe
250 PSI High Pressure Coolant System
Coolant Through the Spindle
Programmable Coolant
12,000 RPM Spindle
32 Station Side Mounted Tool Changer
Chip Conveyor
Remote Jog Handle
Complete Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals

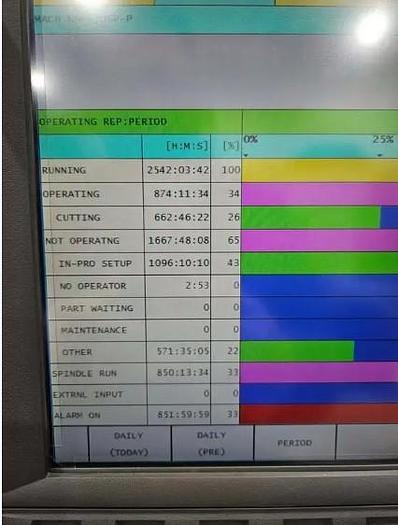

**Total Machine Running Hours 2,542**
**Total Spindle Running Hours 850**
**Total Cutting Hours 662**
Specifications
| Manufacturer | Okuma |
| Model | Genos M560-V |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119974 |
| Machine Control | OSP-P300MA Control |
| Table Size | 51.18" x 22.05" |
| Maximum Weight on Table | 1,980 lbs. |
| X-axis travel | 41.34" |
| Y-Axis Travel | 22.05" |
| Z-Axis Travel | 18.11" |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 - Big Plus |
| Spindle Motor | 30 HP |
| Distance Spindle Nose to Table Top | 5.91" - 24.02" |
| Tool Magazine Capcity | 32 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.9" / 11.8" / 18 lbs. |
| Rapid Traverse Rates X, Y / Z | 1575 IPM / 1262 IPM |
| Machine Dimensions LxWxH | 122.05" x 99" x 108.11" |
| Machine Weight | 18,260 lbs. |
