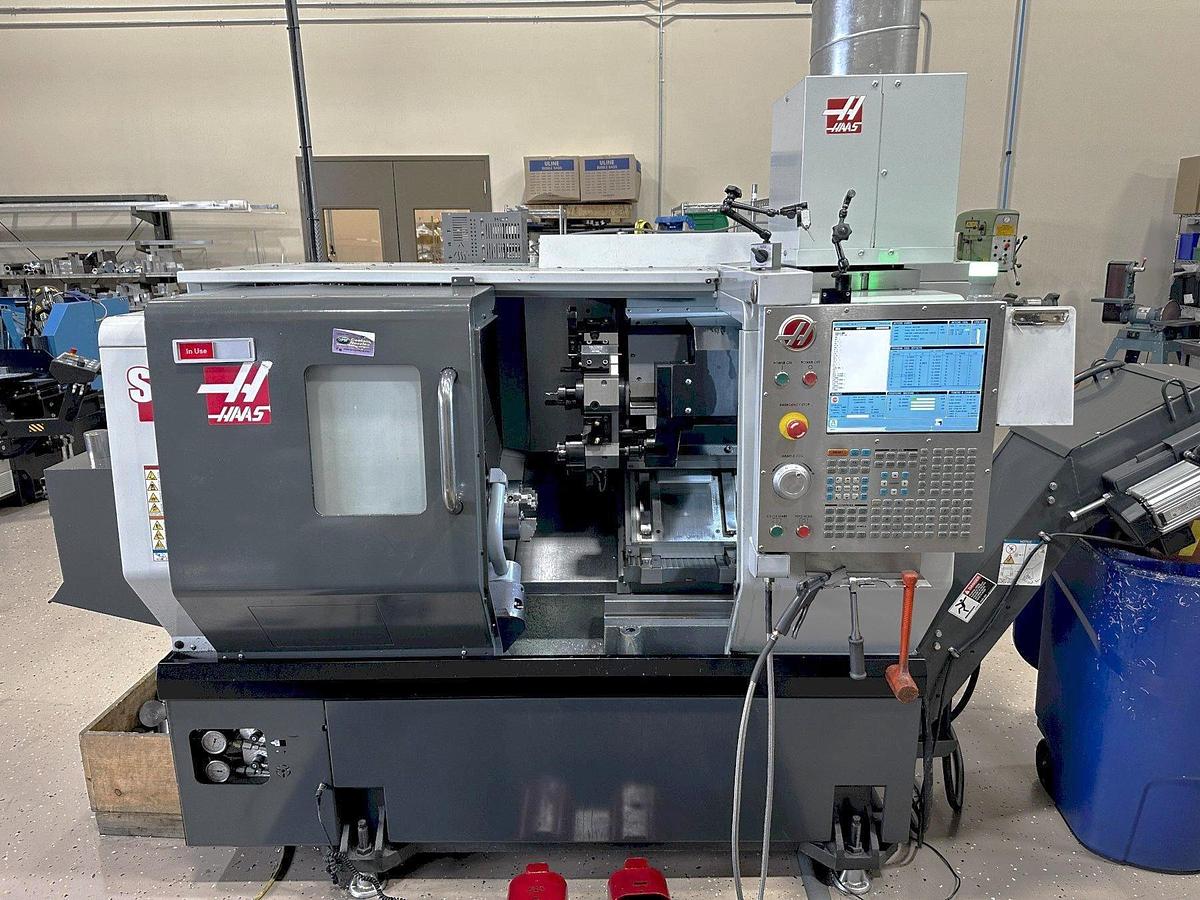

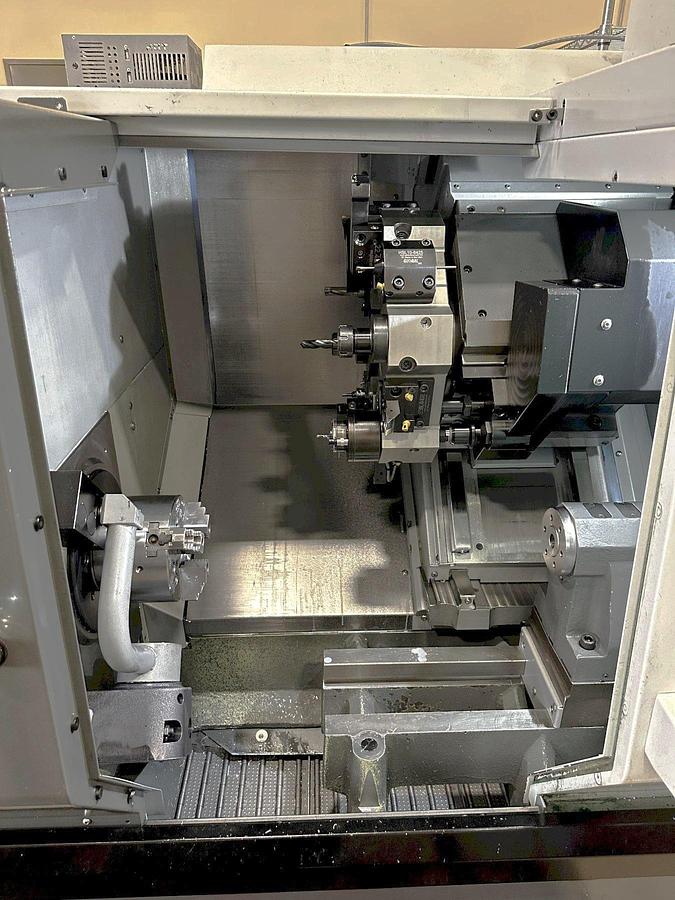

2015 Haas ST-10Y with LIve Milling, Y Axis Capability, Tailstock, Tool Presetter, Chip Conveyor

2015 Haas ST-10Y with LIve Milling, Y Axis Capability, Tailstock, Tool Presetter, Chip Conveyor

$52,500 (USD)

Location:Michigan

or
Call (863) 439-6066

Description

Milling / Drilling Capability

Full C Axis Spindle Rotation

Y Axis Capability

Chip Conveyor

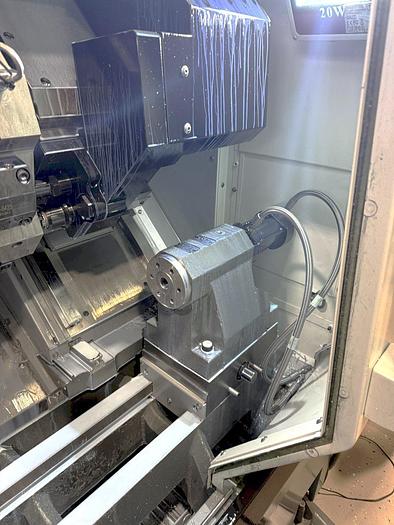

Tailstock

Tool Presetter

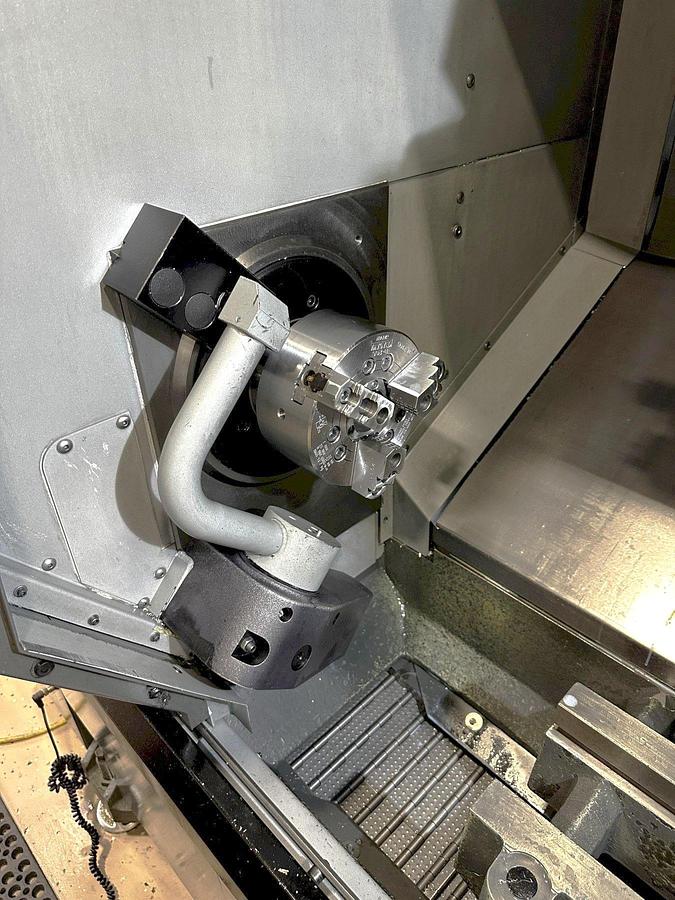

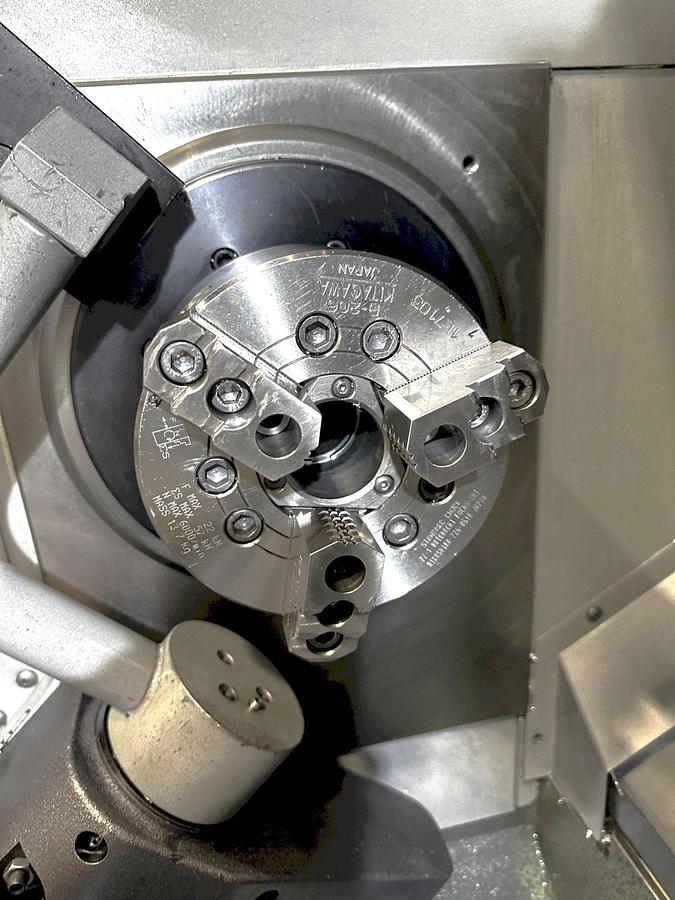

6.5" 3 Jaw Hydraulic Chuck

2nd Chuck to go with as well

Spindle Orientation

Visual Part Programming System

User Definable Macros

Rigid Tapping

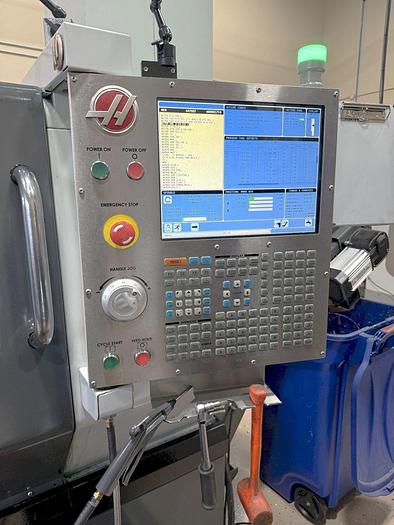

15" LCD Color Monitor

Memory Lock Keyswitch

USB Port Interface

RS 232 Port Interface

Complete Coolant System with Tank & Pump

All Available Static and Live Tool Holders


**Price New as Equipped at $105,716**

Show All

Specifications

ManufacturerHaas
ModelST-10
Year2014
ConditionUsed
Stock Number119976
Machine ControlHaas CNC Control
Chuck Size6.5" 3-Jaw Hydraulic
Maximum Swing25.25"
Maximum Machining Diameter11"
Maximum Machining Length16"
X-Axis Travel7.88"
Y-Axis Travel+/- 2"
Z-Axis Travel16"
C Axis Spindle Rotation.001 Degree
Spindle Nose / Bore / Bar CapacityA2-5" / 2.31" / 1.75"
Spindle Motor15 HP
Spindle Speeds6,000 RPM
Spindle Torque75 ft/lbs.
Live Tooling Speed5,000 RPM

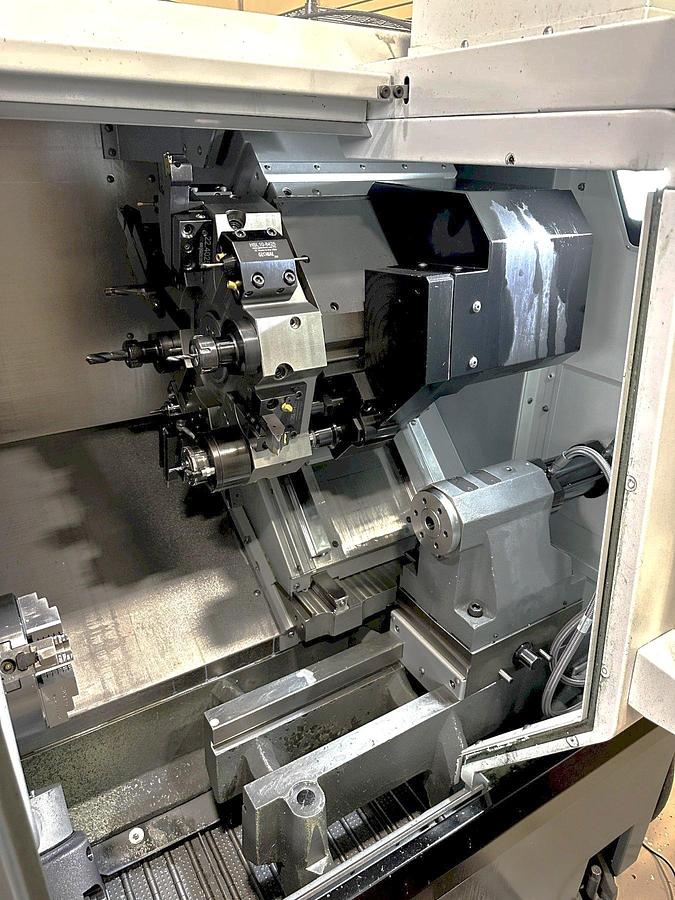

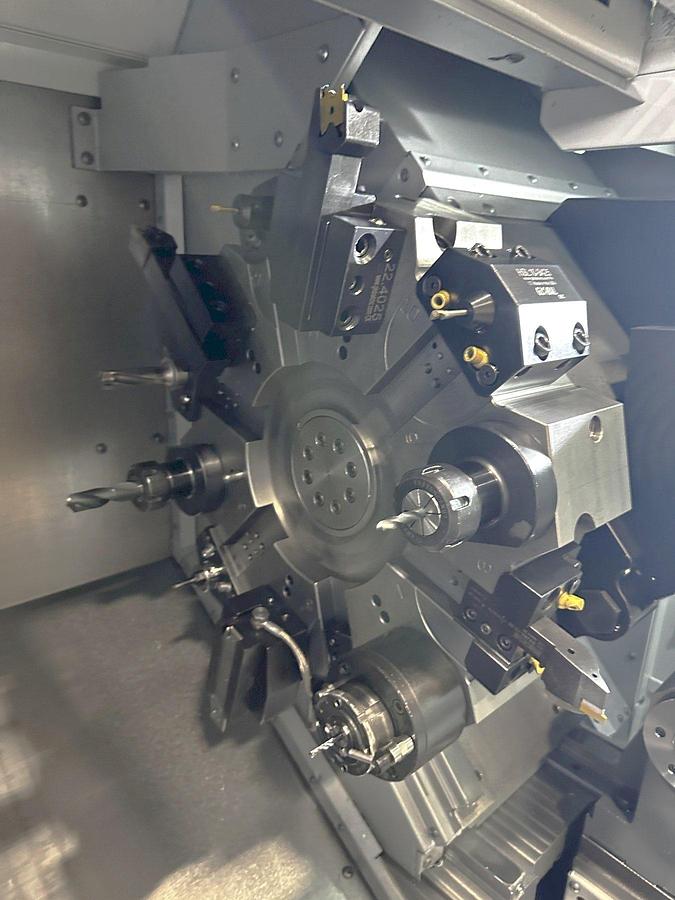

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X, Y / Z472 IPM / 1200 IPM
Tailstock TaperMT #3
Tailstock Body Travel / Quill Travel20" / 3.8"
Machine Dimensions LxWxH126"x70"x81"
Machine Weight7,900 lbs
