2007 Hwacheon Sirius UL Die/Mold Machine with Probing, Coolant Thru Spindle, 4th Axis, 20,000 RPM, 30 Station ATC
2007 Hwacheon Sirius UL Die/Mold Machine with Probing, Coolant Thru Spindle, 4th Axis, 20,000 RPM, 30 Station ATC
$24,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
4th Axis Rotary Table
Renishaw Probing
Coolant Through the Spindle
30 Station Side Mounted Tool Changer
20,000 RPM Spindle
Chip Conveyor
Coolant System with Tank & Pump
Oil Chiller Unit
All Available Manuals
Specifications
| Manufacturer | Hwacheon |
| Model | Sirius UL Die/Mold Machine |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119978 |

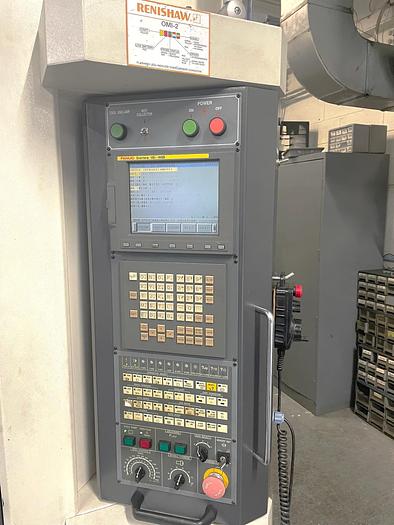

| Machine Control | Fanuc 18i-MB |
| Table size | 47.28" x 23.64" |
| Table load capacity | 1,760 lbs |
| X-axis travel | 47.37" |
| Y-axis travel | 23.64" |
| Z-axis travel | 21.67" |
| Spindle taper | # 40 |

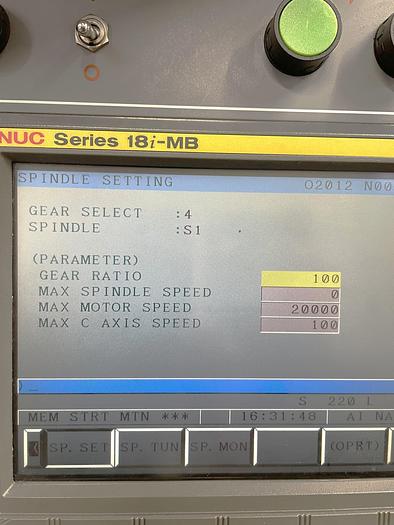

| Spindle speed | 20,000 RPM |
| Spindle motor 30 min. / cont. | 50 HP / 25 HP |
| Tool magazine capacity-side mount | 30 Station Side Mounted ATC |
| Max. tool diameter / length | 6.7" / 11.82" |
| Maximum Tool Weight | 17.6 lbs. |
| Rapid traverse rates | 1418 IPM |
| Machine dimensions lxwxh | 158" x 108" x 125" |
| Machine weight | 25,960 lbs. |
