2015 Doosan Puma 2600SY with Parts Catcher, Exit Conveyor, Chip Conveyor, 10" & 8" Chucks
2015 Doosan Puma 2600SY with Parts Catcher, Exit Conveyor, Chip Conveyor, 10" & 8" Chucks
$89,950 (USD)
Location:Michigan
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation - Both
Live Milling/Drilling Capability
Subspindle Y Axis Capability
Barfeed Interface

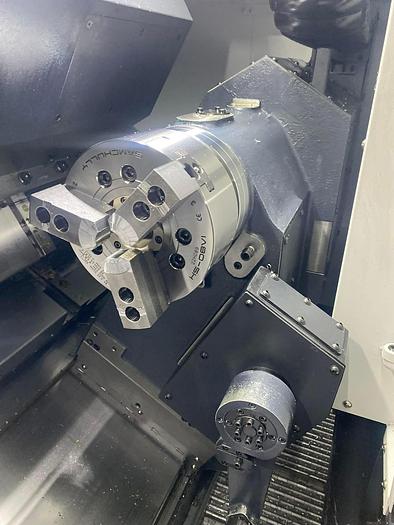

10" 3 Jaw Hydraulic Chuck on Main Spindle

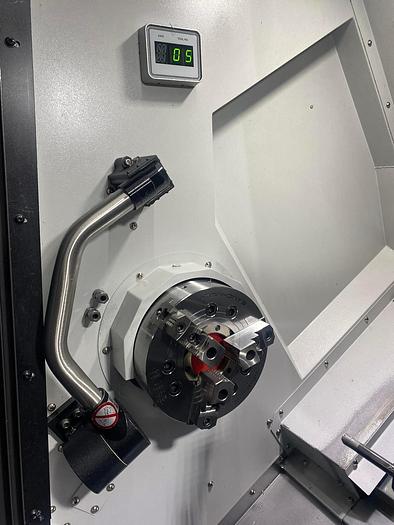

8" 3 Jaw Hydraulic Chuck on Subspindle
Tool Presetter
Automatic Parts Catcher
Parts Exit Conveyor
Chip Conveyor
3 Color Machine Status Condition Lights
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

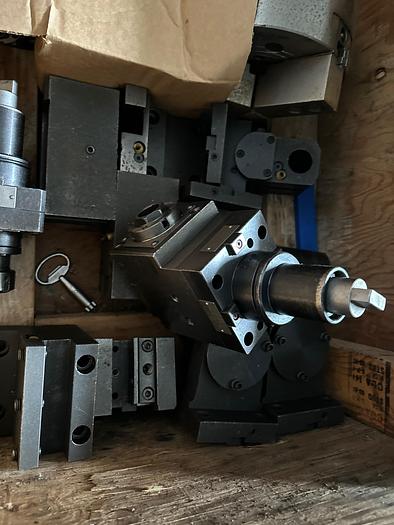

All Available Static and Live Tool Holders
**Power On Hours 20,599**
**Total Cutting Hours 7,869**
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600SY |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119980 |

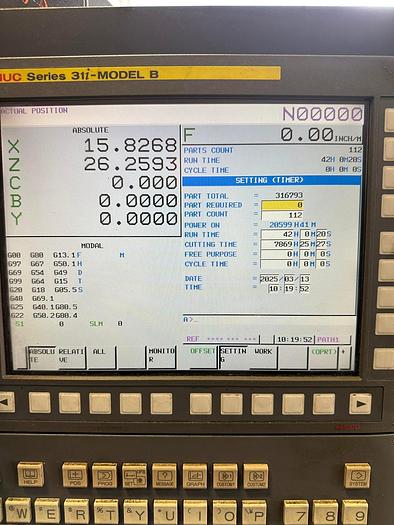

| Control | Fanuc 31i-Model B |
| Chuck Size | 10" 3-Jaw Main Spindle / 8" 3-Jaw Subspindle |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 29.9" |
| Maximum Bar Capacity | 3" Main Spindle / 2" Subspindle |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 4.13" |
| Z-Axis Travel | 32.7" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" Main Spindle / A2-5" Subspindle / 3.34" Main Spindle Bore / 2.4" Subspindle Bore |
| Spindle Speeds - Main | 3,500 RPM |
| Spindle Motor - Main | 30 HP |
| Subspindle Speed / Motor | 4,500 RPM / 11 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |

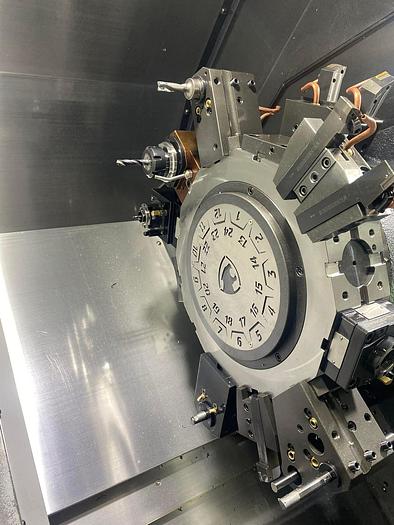

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 172" x 85" x 86" |
| Machine Weight | 16,100 lbs. |
