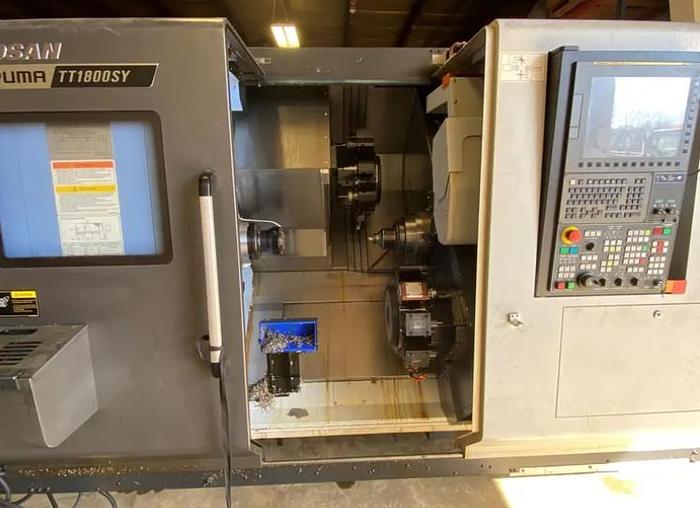

2021 Doosan Puma TT1800SY
2021 Doosan Puma TT1800SY
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

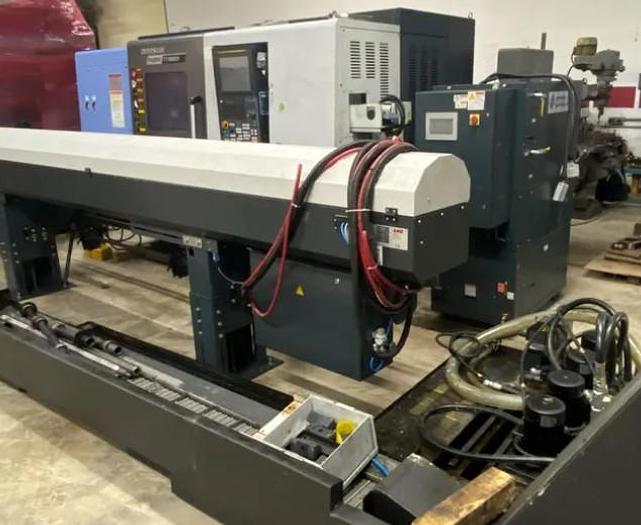

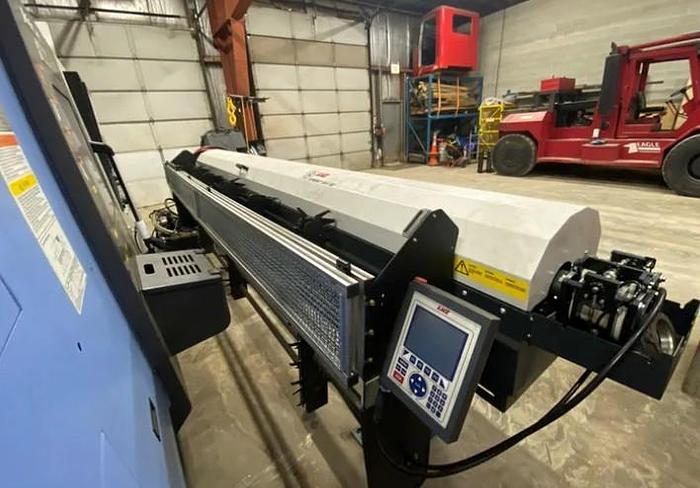

Sprint 565 S2 Barfeed

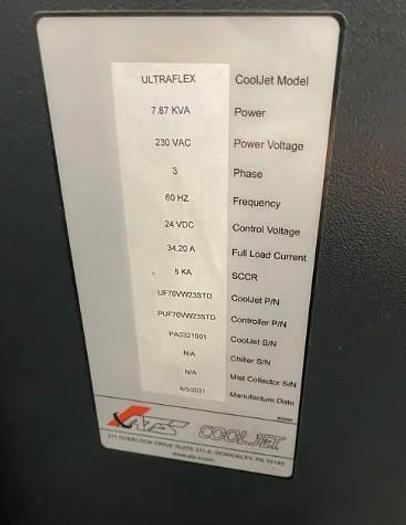

Cooljet Ultra Flex
Collet Chucks
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability on Upper Turret

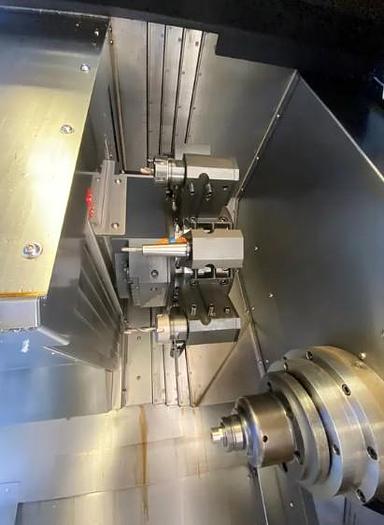

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
Tool Presetter
Chip Conveyor
Rear exit parts conveyor
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Manuals
Bank Repo
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119981 |
| Control | Fanuc Series 1 Plus |
| Chuck Size | (2) Collet Chucks |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 38.5" |
| Maximum Distance Between Centers | 38.5" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 82" |
| Machine Weight | 17,196 lbs. |
