2012 Samsung SL-20/500
2012 Samsung SL-20/500
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
Chip Conveyor
Tool Presetter
Auto Parts Catcher
8" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Complete Coolant System
Boxed Ways Design
USB Port Interface
Hard Disk Interface
RS 232 Port Interface
Miscellaneous Tool Blocks
All Available Manuals
Specifications
| Manufacturer | Samsung |
| Model | SL-20/500 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119985 |

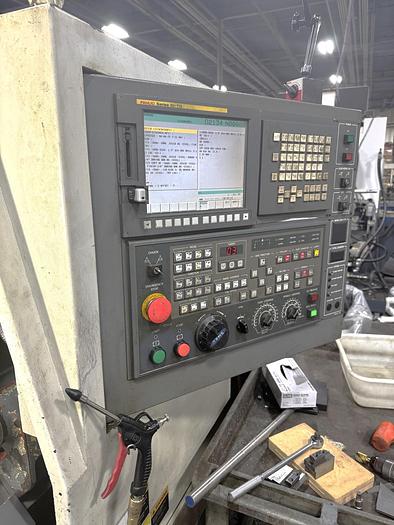

| Machine Control | Fanuc Oi-TD |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 17.72" |
| Maximum Machining Diameter | 11.81" |
| Maximum Machining Length | 20.5" |
| Distance Between Centers | 23.43" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 22.05" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.99" / 2.56" |
| Spindle speed | 4,000 RPM |
| Spindle Motor | 25 HP |

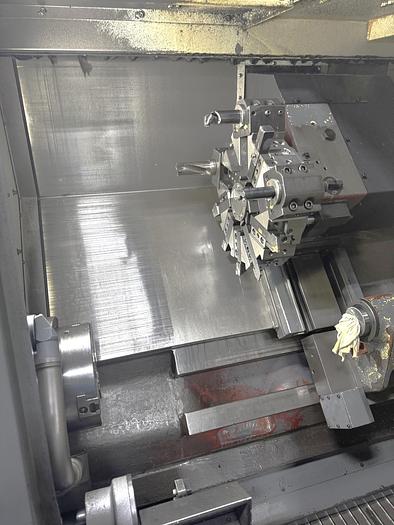

| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Quill Travel / Quill Diameter | 2.95" / 3.1" |
| Machine weight | 9,250 lbs |
