2007 Makino A51 with Full 4th Axis, 14k RPM, Coolant Through Spindle, 60 ATC, Chip Conveyor, Tombstones, Haas Rotary Table

2007 Makino A51 with Full 4th Axis, 14k RPM, Coolant Through Spindle, 60 ATC, Chip Conveyor, Tombstones, Haas Rotary Table

Contact us for price

Location:Illinois

or
Call (863) 439-6066

Description

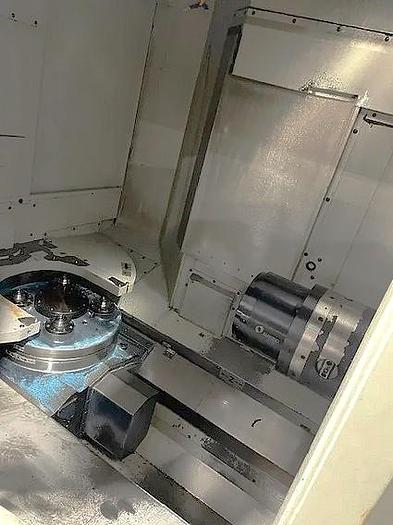

2 Pallet Factory Changer

Full 4th Axis Rotary Table

60 Pocket Tool Magazine

Through the Spindle Coolant

14,000 RPM Spindle

Chip Conveyor

One Piece Way Covers

Step Down Transformer

Spindle Chiller

Remote Jog Handle

Complete Coolant System with Tank & Pumps

USB Port Interface

RS 232 Port Interface

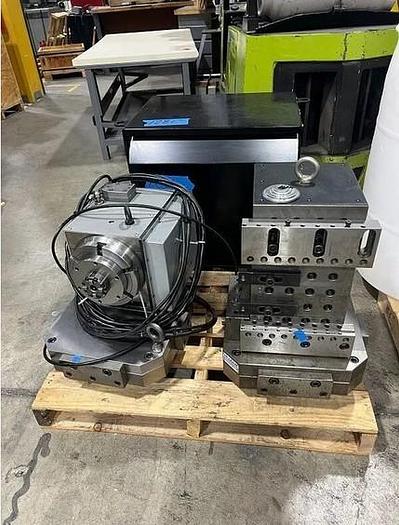

Tombstones

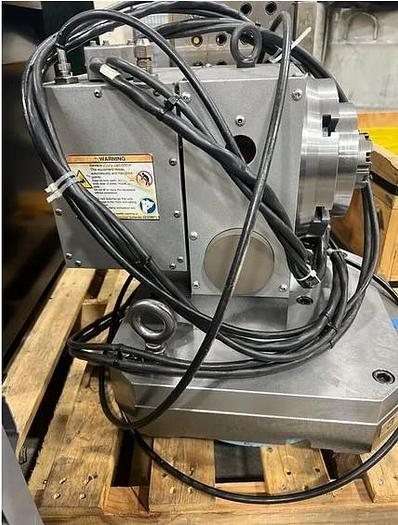

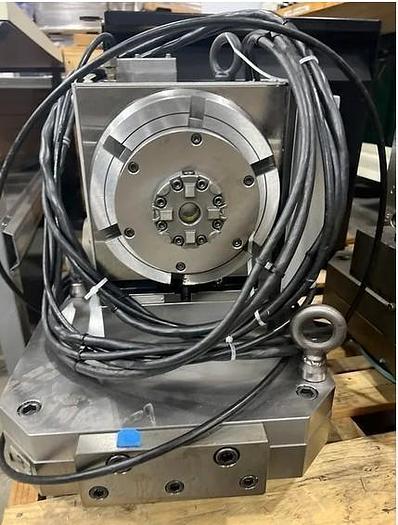

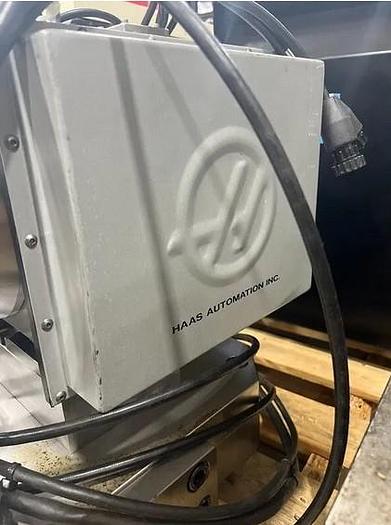

Haas Rotary Table Mounted on Pallet

Show All

Specifications

ManufacturerMakino
ModelA51
Year2007
ConditionUsed
Stock Number119995

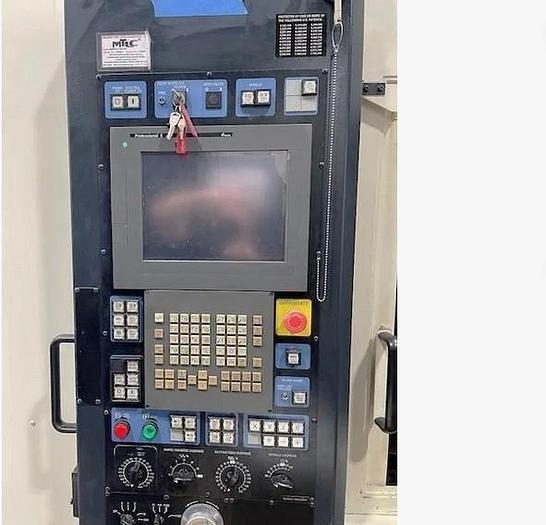

Machine ControlFanuc Pro 5 Control
Pallet size / number of pallets15.7" x 15.7" / 2 plts
Table load capacity880 lbs.
Table indexing.001 Degree Full 4th Axis
X-axis travel22"
Y-axis travel22"
Z-axis travel23.6"
Spindle taperCAT 40
Spindle speed50 - 14,000 RPM - 2 Ranges
Spindle motor25 HP
Tool magazine capacity60 Position ATC
Cutting feedrates630 IPM
Rapid traverse rates1574 IPM
Max tool diam./length/weight7" / 17" / 26 lbs.
Machine Dimensions LxWxH135" x 98" x 106"
Machine weight17,200 lbs.
